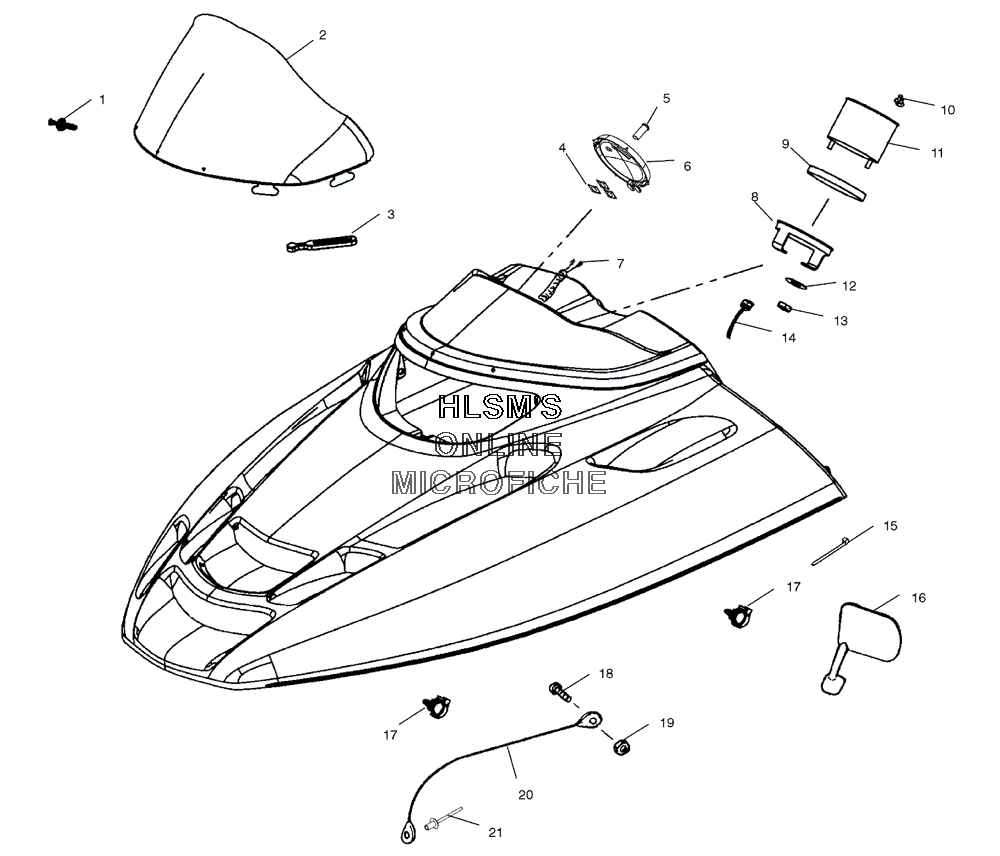

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris 550 CLASSIC (S05ND5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCK (RIGHT)RIVET, PLASTI LOCK (RIGHT)
-
25435045 WINDSHIELD 15" FLR SMOKE/GRAPHWINDSHIELD 15" FLR SMOKE/GRAPH
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
47670133 RETAINER 1/2" BOLT/LAMPRETAINER 1/2" BOLT/LAMP
-
54010687 INDICATOR REVERSE, 1/2 DIAINDICATOR REVERSE, 1/2 DIA
-
65434081 PLUG DASH, 5" W/SINGLE 1/2"HOLEPLUG DASH, 5" W/SINGLE 1/2"HOLE
-
72461031 HARNESS JUMPER, REVERSE LIGHTHARNESS JUMPER, REVERSE LIGHT
-
83280210 BRACKET, TACHOMETER/SPEEDOMETER 5"BRACKET, TACHOMETER/SPEEDOMETER 5"
-
93280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
103280186 KNOB, TRIP ODOMETER THD. (LEFT)KNOB, TRIP ODOMETER THD. (LEFT)
-
113280411 SPEEDOMETER ASSY (120MPH) (5") (WHITE/BLACK)SPEEDOMETER ASSY (120MPH) (5") (WHITE/BLACK)
-
114030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
123280157 WASHER, FLATWASHER, FLAT
-
137546703 NUT, NYLOKNUT, NYLOK
-
143280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
157080138 CABLE TIECABLE TIE
-
162632246-070 MIRROR ASSY (LEFT/BLACK)MIRROR ASSY (LEFT/BLACK)
-
162632247-070 MIRROR ASSY (RIGHT/BLACK)MIRROR ASSY (RIGHT/BLACK)
-
167556088 WASHER, FLATWASHER, FLAT
-
167546703 NUT, NYLOKNUT, NYLOK
-
174010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
187512018 SCREWSCREW
-
197541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
207080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
217661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
