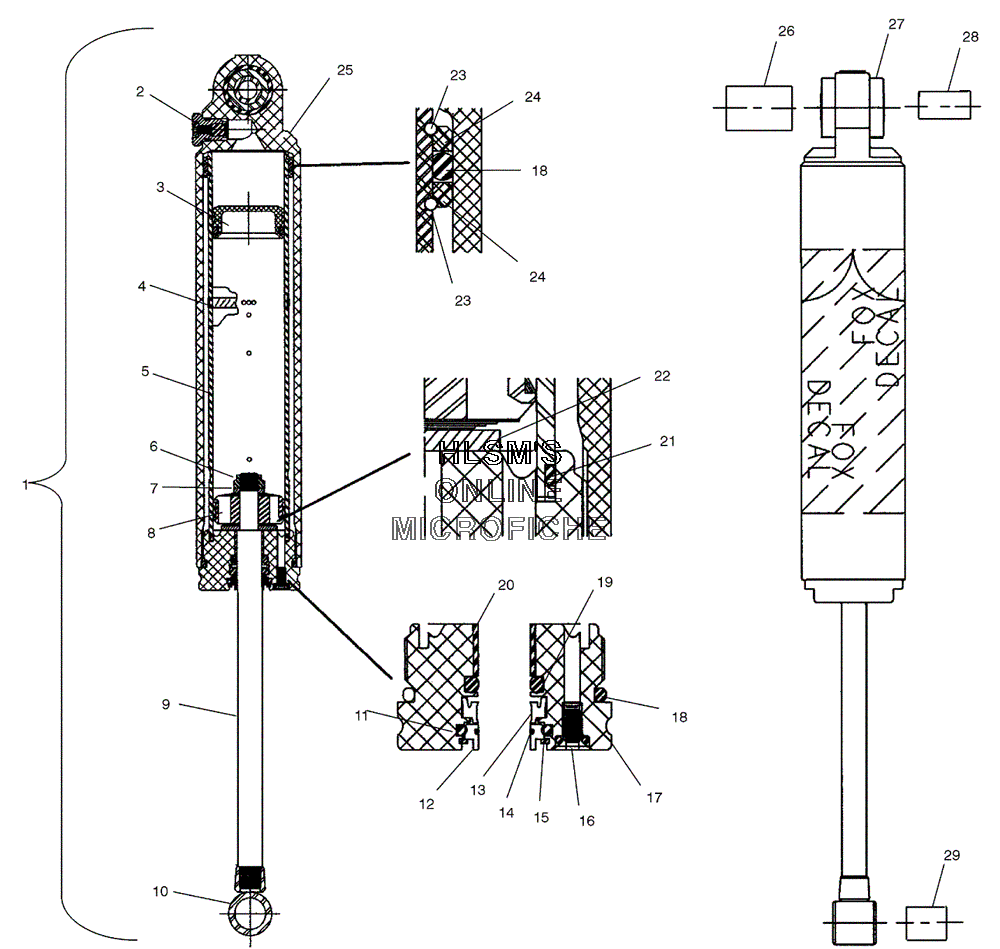

SUSPENSION - REAR TRACK для Polaris 550 CLASSIC (S05ND5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17042129 SHOCK R/T, ALUM (INCL. ALL)SHOCK R/T, ALUM (INCL. ALL)
-
21500295 SCREWSCREW
-
21500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
31500481 FLOATING PISTON ASSYFLOATING PISTON ASSY
-
31500006 BEARING, EXTERNALBEARING, EXTERNAL
-
31500003 O-RING, ENDCAPO-RING, ENDCAP
-
41500306 VALVE, CHECK, NBR DURO A 90VALVE, CHECK, NBR DURO A 90
-
51500331 BODY ASSY (INNER P.S)BODY ASSY (INNER P.S)
-
61500016 NUT, LOCKNUT, LOCK
-
71500015 PLATE, BACKUPPLATE, BACKUP
-
81500489 PISTON BLEED (.063)PISTON BLEED (.063)
-
81500002 BEARING, PISTONBEARING, PISTON
-
91500487 SHAFTSHAFT
-
101500302 EYELETEYELET
-
111500483 O-RING (.103X.73ID)O-RING (.103X.73ID)
-
121500485 SCRAPER FIST, BRONZESCRAPER FIST, BRONZE
-
131500266 U CUP 4300 URETHU CUP 4300 URETH
-
141500484 O-RINGO-RING
-
151500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
161500295 SCREWSCREW
-
161500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
171500482 BEARING ASSY, FIST (INCL. 11-16, 18-20)BEARING ASSY, FIST (INCL. 11-16, 18-20)
-
171500482 BEARING ASSY, FIST (INCL. 11-16, 18-20)BEARING ASSY, FIST (INCL. 11-16, 18-20)
-
181500228 O-RINGO-RING
-
191500127 O-RINGO-RING
-
201500488 BEARINGBEARING
-
211500459 O-RINGO-RING
-
221500228 O-RINGO-RING
-
231500097 RING RETAINING, WIRERING RETAINING, WIRE
-
241500336 COLLAR, ALUMINUMCOLLAR, ALUMINUM
-
251500480 BODY, ASSY (INCL. 2)BODY, ASSY (INCL. 2)
-
261500311 SLEEVESLEEVE
-
271500307 BUSHINGBUSHING
-
285333907 SLEEVESLEEVE
-
295010422 BUSHINGBUSHING
