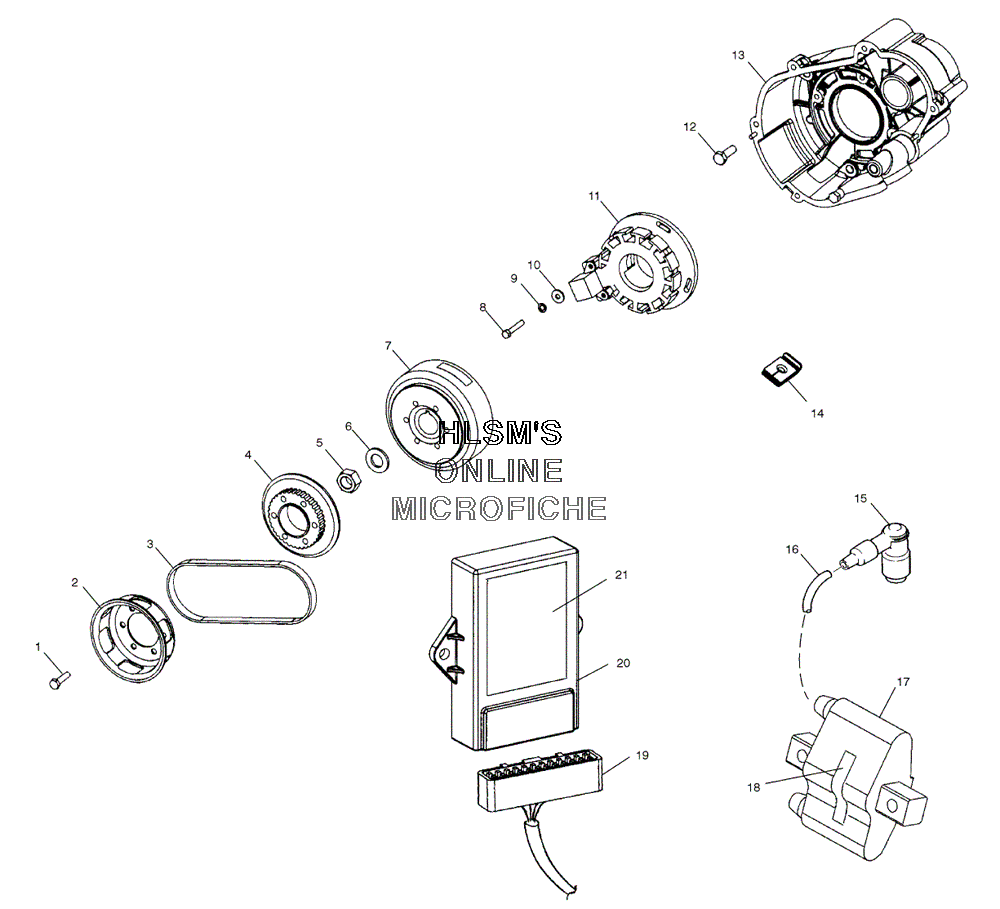

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 800 XC SP EDGE (S04NP7CS) - 2004 года выпуска`
-
№АртикулНазвание
-
17517998 SCREW HEXAGON FLANGESCREW HEXAGON FLANGE
-
23021144 PULLEY, RECOILPULLEY, RECOIL
-
32201821 WATER PUMP BELT KITWATER PUMP BELT KIT
-
45630824 PULLEY, WATER PUMP DRIVEPULLEY, WATER PUMP DRIVE
-
57546909 NUTNUT
-
67555907 WASHERWASHER
-
74010677 FLYWHEEL IGNITIONFLYWHEEL IGNITION
-
87517246 SCREWSCREW
-
97555969 WASHER, LOCKWASHER, LOCK
-
107555970 WASHER, FLATWASHER, FLAT
-
114010297 STATOR, IGNITIONSTATOR, IGNITION
-
127516734 SCREWSCREW
-
131202161 HOUSING, IGNITION ASSYHOUSING, IGNITION ASSY
-
145411178 GROMMET, STATOR WIRESGROMMET, STATOR WIRES
-
154020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
164010124-305 WIRE, IGNITION BULK (305CM)WIRE, IGNITION BULK (305CM)
-
174060229 COIL, IGNITION KOKCOIL, IGNITION KOK
-
187077026 DECAL, SPARK PLUG RECDECAL, SPARK PLUG REC
-
194010872 HARNESS IGNITION DETONATIONHARNESS IGNITION DETONATION
-
202202523 CDI, KIT (INCL. 19, NYOGEL AND DECAL)CDI, KIT (INCL. 19, NYOGEL AND DECAL)
-
217170413 DECAL D.E.TDECAL D.E.T
