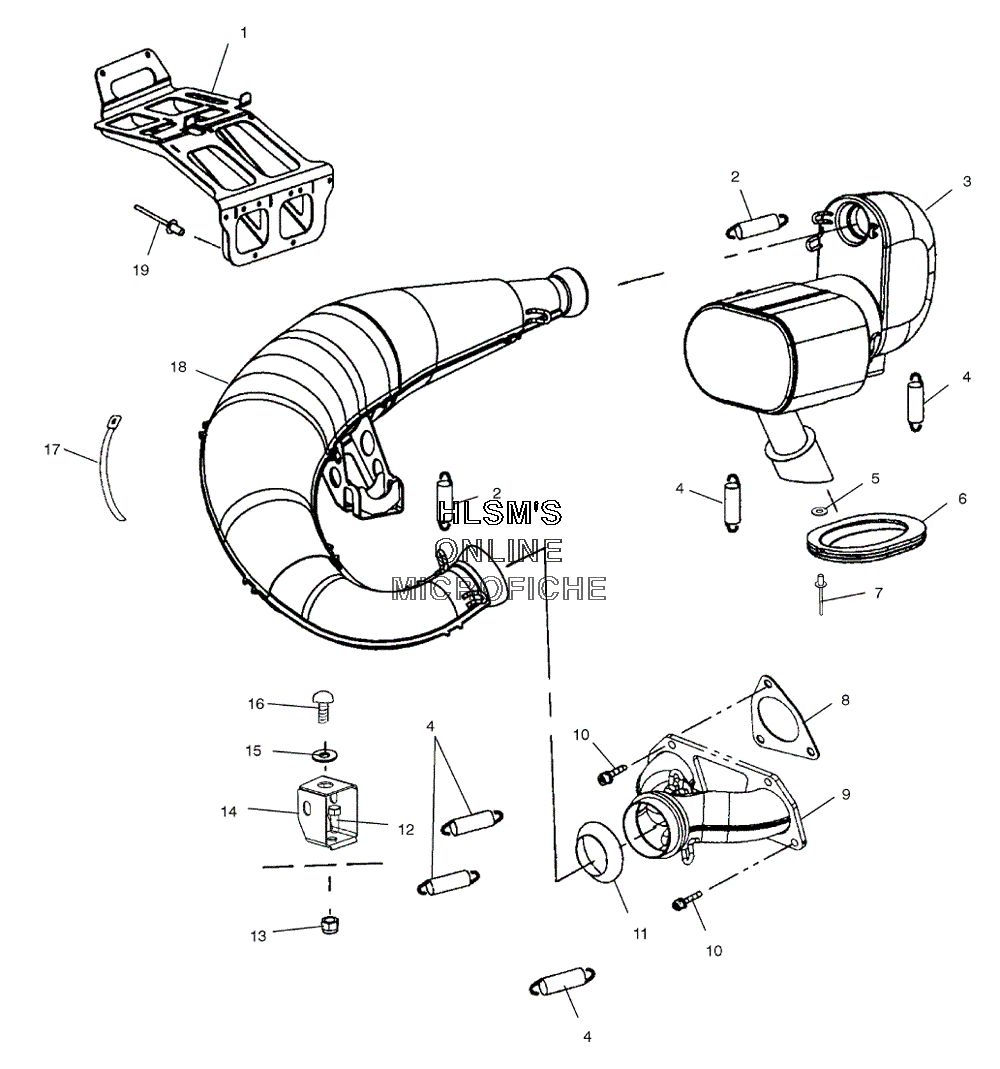

EXHAUST SYSTEM для Polaris 800 XC SP EDGE (S04NP7CS) - 2004 года выпуска
-
№АртикулНазвание
-
11261296-029 WELD BRACKET CHASSIS/RESONATOR, BKWELD BRACKET CHASSIS/RESONATOR, BK
-
27042029 SPRINGSPRING
-
31261177-029 WELD RESONATOR (BLACK)WELD RESONATOR (BLACK)
-
47041687 SPRINGSPRING
-
57555904 WASHERWASHER
-
65411684 BOOT, EXHAUST OUTLETBOOT, EXHAUST OUTLET
-
77621467 RIVET, BLINDRIVET, BLIND
-
85811799 GASKET EXHAUSTGASKET EXHAUST
-
91261124-029 WELD MANIFOLD (BLACK)WELD MANIFOLD (BLACK)
-
107517322 SCREWSCREW
-
113610046 SEAL, EXHAUST SOCKETSEAL, EXHAUST SOCKET
-
127517935 SCREW HEXAGON SOCKETSCREW HEXAGON SOCKET
-
137547180 NUT FLANGED, NYLON ZNUT FLANGED, NYLON Z
-
145245498 BRACKET CHASSIS/PIPEBRACKET CHASSIS/PIPE
-
157556004 WASHERWASHER
-
165411576 DAMPENER VIBRATION WITH RIBSDAMPENER VIBRATION WITH RIBS
-
177080740 CLAMP WORM DRIVECLAMP WORM DRIVE
-
177080741 CLAMP WORM DRIVECLAMP WORM DRIVE
-
177080742 CLAMP WORM DRIVECLAMP WORM DRIVE
-
181261123 TUNED PIPE ASSYTUNED PIPE ASSY
-
185245929 COVER TUNED PIPE, TOPCOVER TUNED PIPE, TOP
-
185245930 COVER TUNED PIPE, BOTTOMCOVER TUNED PIPE, BOTTOM
-
185830215 MATTE SOUND, TOPMATTE SOUND, TOP
-
185830216 MATTE SOUND, BOTTOMMATTE SOUND, BOTTOM
-
197661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY #1
- CARBURETOR ASSEMBLY #2
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE CLUTCH - MANUAL START
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRIC MODULE (M-10)(ACE)
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- • EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS (EDGE)
- SEAT ADJUSTABLE
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING ASSEMBLY #1
- STEERING ASSEMBLY #2
- SUSPENSION - COMPRESSION DAMPING RESERVOIR (EDGE)
- SUSPENSION - FOX SHOCK - REAR TRACK AND RESEVOIR (EDGE)
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY (EDGE)
- SUSPENSION - FRONT TRACK SHOCK (EDGE)
- SUSPENSION - IFS SHOCK (COMPRESSION ADJUST)
- SUSPENSION - REAR (EDGE)
- SUSPENSION - REAR TORQUE ARM ASSEMBLY (EDGE)
- SUSPENSION - REAR TRACK (EDGE) #1
- SUSPENSION - REAR TRACK (EDGE) #2
- SUSPENSION - SHOCK IFS
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD/GUAGES/HOOD RETAINER
