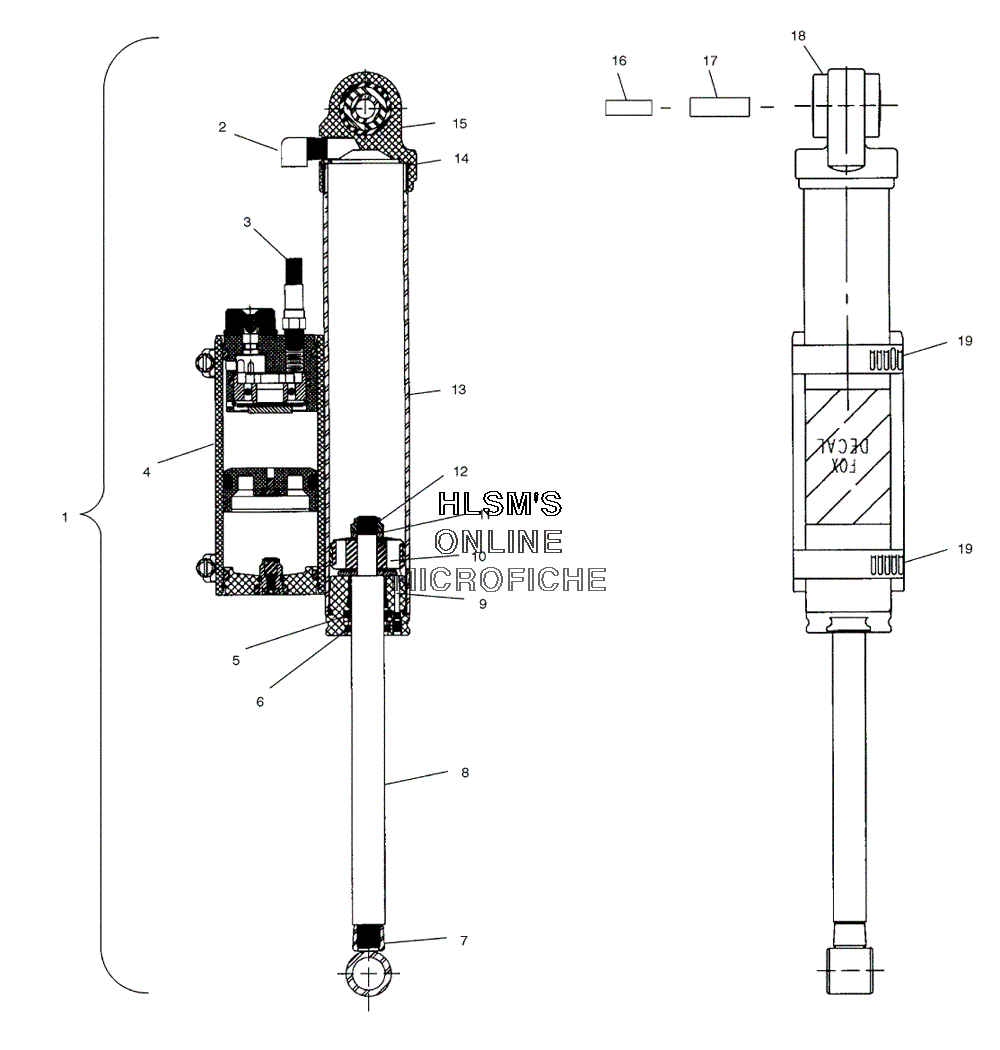

SUSPENSION - FOX SHOCK - REAR TRACK AND RESEVOIR (EDGE) для Polaris 800 XC SP EDGE (S04NP7CS) - 2004 года выпуска
-
№АртикулНазвание
-
17042196 SHOCK TRACK, REMOTERES (REAR)SHOCK TRACK, REMOTERES (REAR)
-
21500157 FITTING, ELBOW (90DEG)FITTING, ELBOW (90DEG)
-
31500326 HOSE, ASSYHOSE, ASSY
-
51500256 U CUPU CUP
-
61500257 WIPER U-CUPWIPER U-CUP
-
71500302 EYELETEYELET
-
81500322 SHAFTSHAFT
-
91500328 BEARING, QUAD RING ASSYBEARING, QUAD RING ASSY
-
102200618 VALVE PISTON KITVALVE PISTON KIT
-
111500074 BUMPER, RUBBERBUMPER, RUBBER
-
121500016 NUT, LOCKNUT, LOCK
-
131500319 BODY THEADBODY THEAD
-
141500108 O-RINGO-RING
-
151500244 BODY, CAP, ASSYBODY, CAP, ASSY
-
161500327 SLEEVESLEEVE
-
171500311 SLEEVESLEEVE
-
181500307 BUSHINGBUSHING
-
191500330 CLAMP, HOSECLAMP, HOSE
