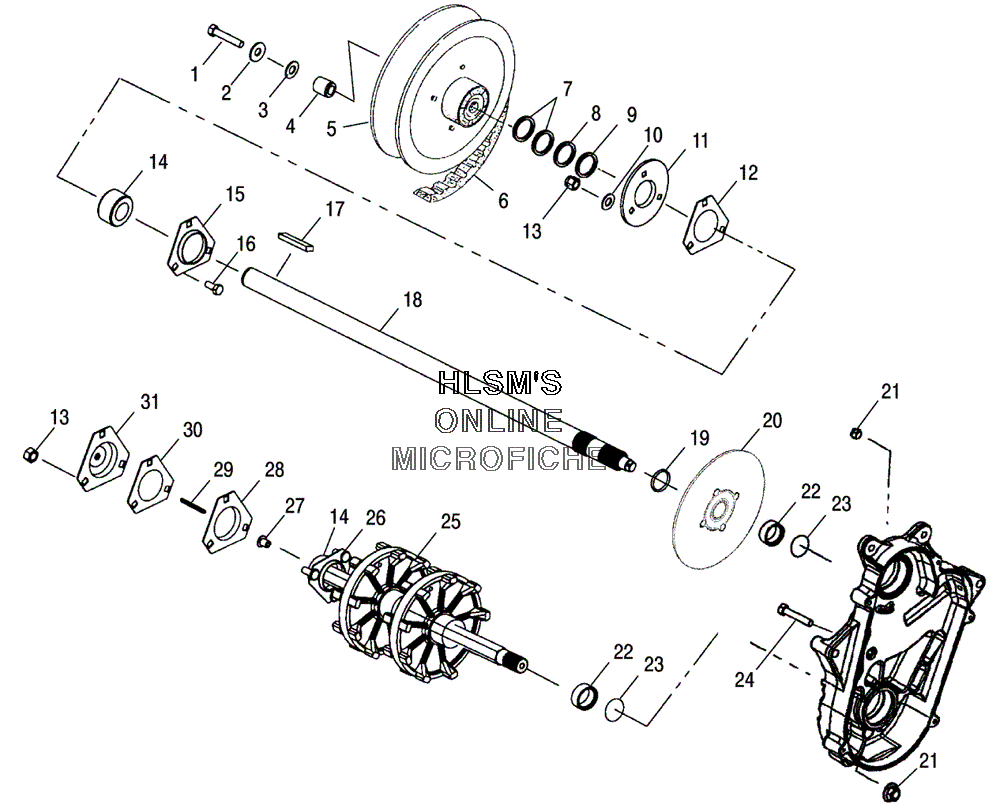

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 550 SUPER SPORT (S05NE5BS) - 2005 года выпуска
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020913 SPACERSPACER
-
63211078 BELT DRIVEBELT DRIVE
-
77555917 WASHERWASHER
-
87555864 WASHERWASHER
-
97556509 BUSHINGBUSHING
-
107558402 WASHER, FLATWASHER, FLAT
-
115241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
117080561 FITTING, LUB/VENFITTING, LUB/VEN
-
125811095 GASKET, JACKSHAFT BLOCKGASKET, JACKSHAFT BLOCK
-
137542324 NUT, NYLOKNUT, NYLOK
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721116 KEYKEY
-
181332283 JACKSHAFT, W/BEARING ASSY (15T) (INCL. 14, 19)JACKSHAFT, W/BEARING ASSY (15T) (INCL. 14, 19)
-
197710422 RING, RETAININGRING, RETAINING
-
202202493 BRAKE DISC, FORGED KITBRAKE DISC, FORGED KIT
-
217542423 NUT, FLANGENUT, FLANGE
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O RINGO RING
-
247515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
251591391 DRIVESHAFT ASSY 2 DRIVE EDGE (INCL. 26, 27)DRIVESHAFT ASSY 2 DRIVE EDGE (INCL. 26, 27)
-
261012945 FLANGETTE W/SCREWS ASSYFLANGETTE W/SCREWS ASSY
-
273280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
285243529 FLANGETTE OFFSET, W/HOLEFLANGETTE OFFSET, W/HOLE
-
293280017 KEY, SPEEDOMETER SQUAREKEY, SPEEDOMETER SQUARE
-
305830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
313280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
