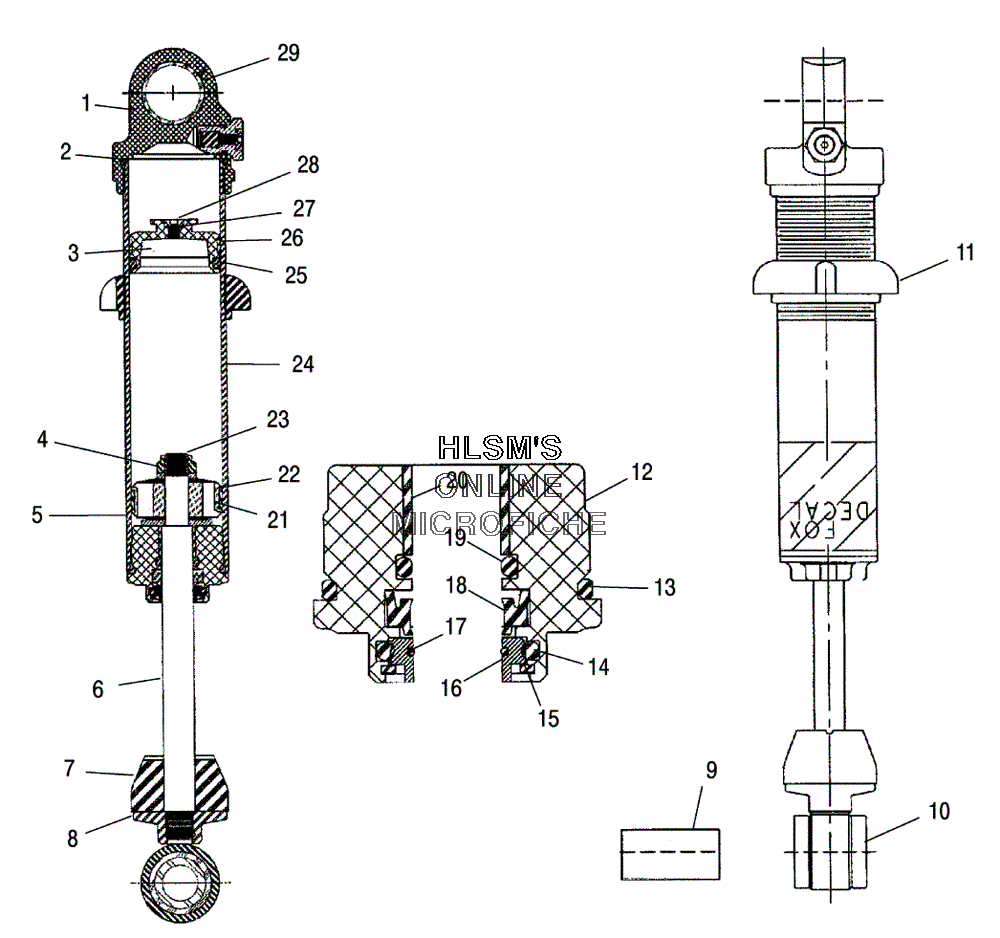

SUSPENSION - FRONT TRACK SHOCK (M-10) для Polaris 550 SUPER SPORT (S05NE5BS) - 2005 года выпуска
-
№АртикулНазвание
-
11500443 BODY CAP ASSYBODY CAP ASSY
-
21500108 O-RING (.103W-1.549ID)O-RING (.103W-1.549ID)
-
31500187 PISTON FLOATINGPISTON FLOATING
-
41500015 PLATE, BACKUPPLATE, BACKUP
-
51500017 PLATE, TOP OUTPLATE, TOP OUT
-
61500247 SHAFTSHAFT
-
71500441 BUMPER (.498 ID X .883 TLG)BUMPER (.498 ID X .883 TLG)
-
81500164 EYELET, BASEEYELET, BASE
-
91500310 SLEEVESLEEVE
-
101500309 BUSHING (.35ILG, .595TLG)BUSHING (.35ILG, .595TLG)
-
111500494 RING PRELOAD, NYLONRING PRELOAD, NYLON
-
121500545 DAMPENER ASSY (INCL. 13-20)DAMPENER ASSY (INCL. 13-20)
-
131500020 O-RING (.103W-1.299ID)O-RING (.103W-1.299ID)
-
141500483 O-RING (.103X.73ID)O-RING (.103X.73ID)
-
151500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
161500485 SCRAPER FIST, BRONZESCRAPER FIST, BRONZE
-
171500484 O-RING (14MM IDX1 MM)O-RING (14MM IDX1 MM)
-
181500266 U-CUP 4300 URETHU-CUP 4300 URETH
-
191500021 O-RING (INNER)O-RING (INNER)
-
201500488 BEARING (.5 IDX.5 TLG)BEARING (.5 IDX.5 TLG)
-
211500002 BEARING, PISTONBEARING, PISTON
-
222200618 VALV.PISTON KITVALV.PISTON KIT
-
231500016 NUT, LOCKNUT, LOCK
-
241500442 BODYBODY
-
251500003 O-RING, ENDCAPO-RING, ENDCAP
-
261500006 BEARING, EXTERNALBEARING, EXTERNAL
-
271500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
281500018 SCREWSCREW
-
291500444 BEARING RBCBEARING RBC
-
297042224 SHOCK FRONT TRACK, M-10 (INCL. ALL)SHOCK FRONT TRACK, M-10 (INCL. ALL)
