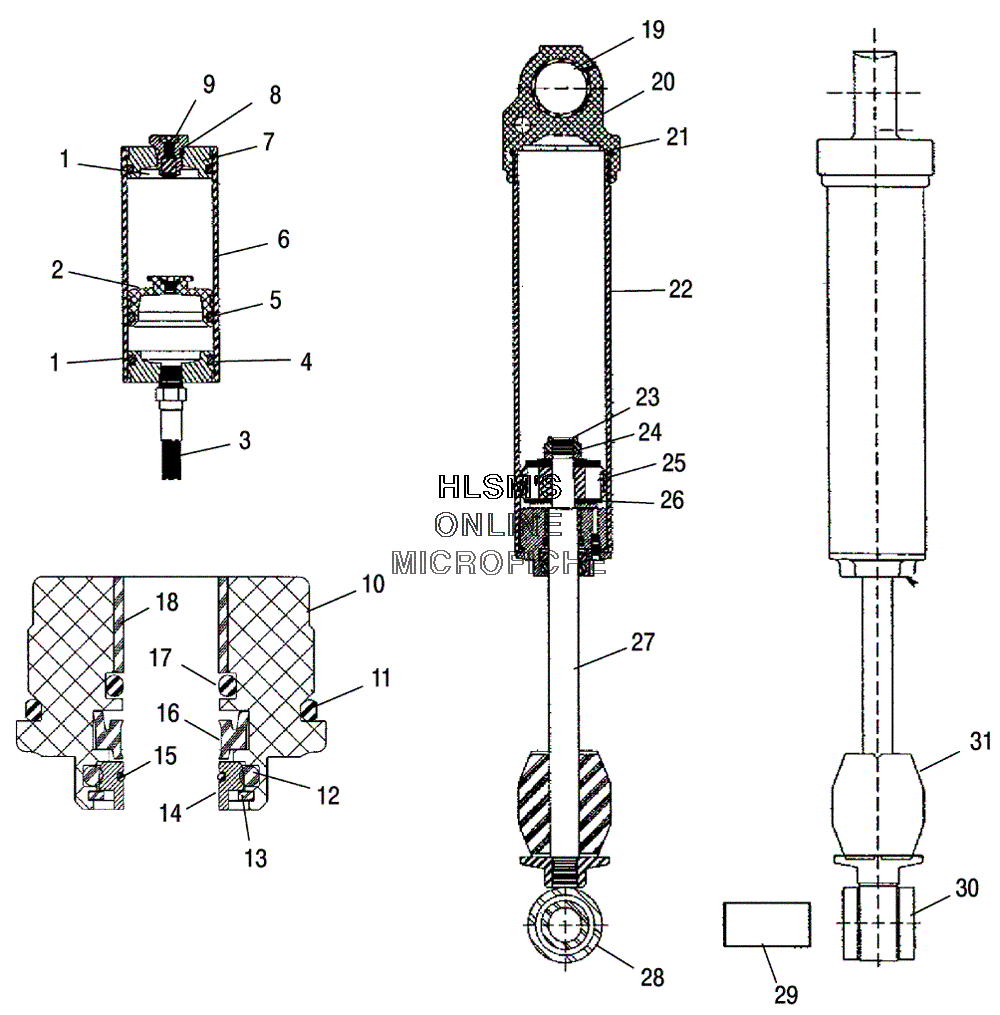

SUSPENSION - REAR TRACK SHOCK (M-10) для Polaris 550 SUPER SPORT (S05NE5BS) - 2005 года выпуска
-
№АртикулНазвание
-
11500450 SEAL O-RINGSEAL O-RING
-
21500187 PISTON FLOATINGPISTON FLOATING
-
31500445 HOSE, 14.00 TLGHOSE, 14.00 TLG
-
41500163 ENDCAP RESERVOIR ASSYENDCAP RESERVOIR ASSY
-
51500003 O-RING, ENDCAPO-RING, ENDCAP
-
61500451 VODY ASSYVODY ASSY
-
71500160 RESERVOIR, END CAP ASSYRESERVOIR, END CAP ASSY
-
81500023 O-RING (OUTER)O-RING (OUTER)
-
91500014 AIR VALVE ASSYAIR VALVE ASSY
-
101500545 DMAPENER ASSY (INCL. 11-18)DMAPENER ASSY (INCL. 11-18)
-
111500020 O-RING (.103W-1.299ID)O-RING (.103W-1.299ID)
-
121500483 O-RING (.103X.73ID)O-RING (.103X.73ID)
-
131500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
141500485 SCRAPER FIST (BRONZE)SCRAPER FIST (BRONZE)
-
151500484 O-RING (14MM IDX1 MM)O-RING (14MM IDX1 MM)
-
161500266 U-CUP, 4300 URETHU-CUP, 4300 URETH
-
171500021 O-RING (INNER)O-RING (INNER)
-
181500488 BEARING (.5 IDX.5 TLG)BEARING (.5 IDX.5 TLG)
-
191500444 BEARING RBCBEARING RBC
-
201500448 BODY CAP ASSYBODY CAP ASSY
-
211500108 O-RING (.103W-1.549ID)O-RING (.103W-1.549ID)
-
221500446 BODYBODY
-
231500016 NUT, LOCKNUT, LOCK
-
241500015 PLATE, BACKUPPLATE, BACKUP
-
251500002 BEARING, PISTONBEARING, PISTON
-
261500017 PLATE, TOP OUTPLATE, TOP OUT
-
271500447 SHAFT (.498 X 7.525 TLG)SHAFT (.498 X 7.525 TLG)
-
281500164 EYELET, BASEEYELET, BASE
-
291500310 SLEEVESLEEVE
-
301500309 BUSHING (.35ILG, .595TLG)BUSHING (.35ILG, .595TLG)
-
315410855 BUMPER, JOUNCEBUMPER, JOUNCE
-
317042216 SHOCK REAR TRACK, REZY-M-10 (INCL. ALL)SHOCK REAR TRACK, REZY-M-10 (INCL. ALL)
-
311500449 RESERVIOR, NON ADJUST 1.459 ASSY (INCL. 1-9)RESERVIOR, NON ADJUST 1.459 ASSY (INCL. 1-9)
