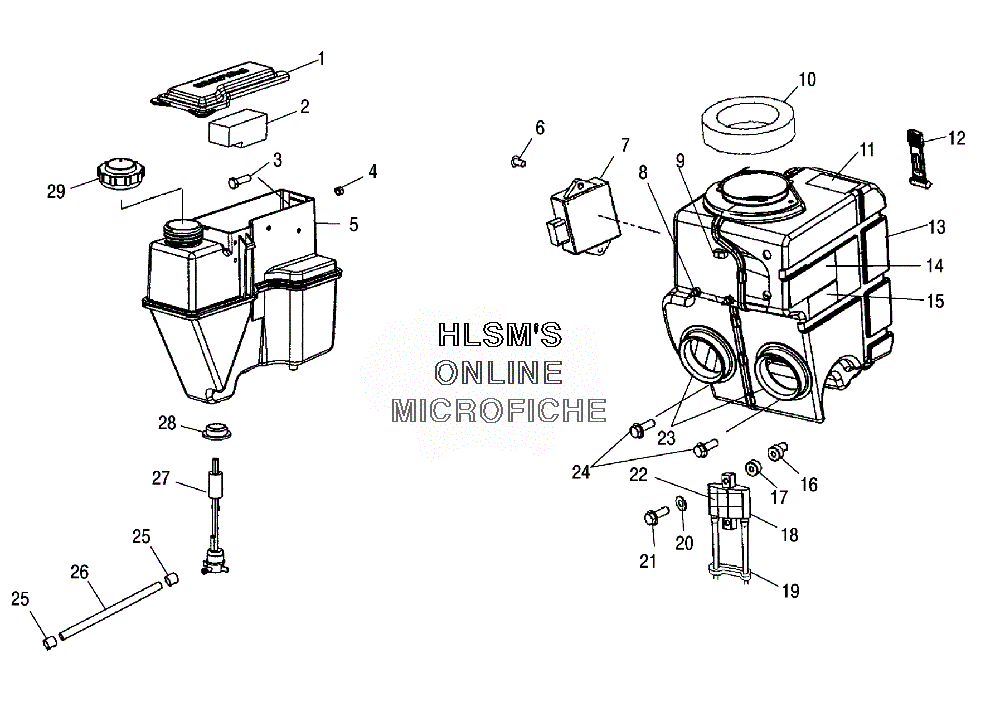

OIL TANK W/AIR BOX ASSEMBLY для Polaris 600 SWITCHBACK (S05NS6ES) - 2005 года выпуска
-
№АртикулНазвание
-
15434089 COVER TOOL BOXCOVER TOOL BOX
-
25812209 FOAMFOAM
-
37512297 SCREWSCREW
-
47542122 NUT NYLOKNUT NYLOK
-
51253539 N/A, USE COMPONENTS (INCL. 1, 27)N/A, USE COMPONENTS (INCL. 1, 27)
-
51261127 WELD OIL BOTTLE/TOOL BOXWELD OIL BOTTLE/TOOL BOX
-
67512095 SCREWSCREW
-
87052127 FITTING, HOSEFITTING, HOSE
-
97670102 CLIPCLIP
-
105811983 FOAM, CHIMNEYFOAM, CHIMNEY
-
117075351 DECAL, CAUTIONDECAL, CAUTION
-
125433150 STRAPSTRAP
-
131253498 AIR SILENCER ASSY (INCL. 23 & DECALS)AIR SILENCER ASSY (INCL. 23 & DECALS)
-
147171037 DECAL BELT REMOVAL E/RDECAL BELT REMOVAL E/R
-
157073426 DECAL, GREASINGDECAL, GREASING
-
167547103 NUT, WELLNUT, WELL
-
177555932 WASHER, NYLONWASHER, NYLON
-
197080471 CLIP, IGNITION CABLECLIP, IGNITION CABLE
-
207552604 WASHERWASHER
-
217517610 SCREWSCREW
-
227077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
-
235412169 BOOT CARBURETOR 70 DUROBOOT CARBURETOR 70 DURO
-
247511862 SCREWSCREW
-
257080307 CLAMP, HOSECLAMP, HOSE
-
268450003-1525 LINE, FUEL (1/4 ID/1525 CM.)LINE, FUEL (1/4 ID/1525 CM.)
-
274010660 SENDER OIL, W/FRONT TERMINALSSENDER OIL, W/FRONT TERMINALS
-
287052305 GROMMET OIL SENDERGROMMET OIL SENDER
-
291240094 CAP OIL, VENTED/CUSTOM COLORCAP OIL, VENTED/CUSTOM COLOR
