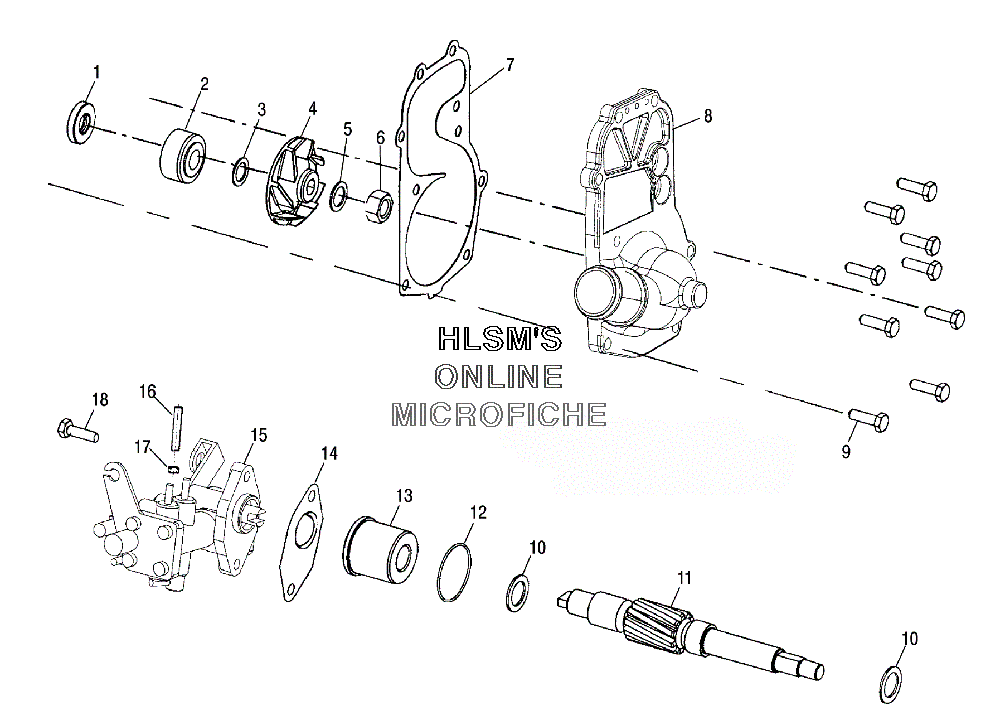

WATER PUMP/OIL PUMP для Polaris 600 SWITCHBACK (S05NS6ES) - 2005 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE S, ARSSEAL, TYPE S, ARS
-
23610067 SEALSEAL
-
37556006 WASHER, FLATWASHER, FLAT
-
45432330 IMPELLERIMPELLER
-
57555874 WASHER, FLATWASHER, FLAT
-
67546804 NUT, HEXAGON NYLOKNUT, HEXAGON NYLOK
-
75811601 GASKET, WATERPUMP COVER.GASKET, WATERPUMP COVER.
-
85630920 COVER WATERPUMP, HI FLOWCOVER WATERPUMP, HI FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115133688 GEAR-CROSS SHAFT 11 STARTGEAR-CROSS SHAFT 11 START
-
125411196 O-RINGO-RING
-
135010391 BRNG, PUMP SHAFT FLANGEDBRNG, PUMP SHAFT FLANGED
-
145811789 GASKETGASKET
-
152540117 OIL PUMP 0.909 ASSYOIL PUMP 0.909 ASSY
-
168450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
177080603 CLAMPCLAMP
-
187517277 SCREWSCREW
