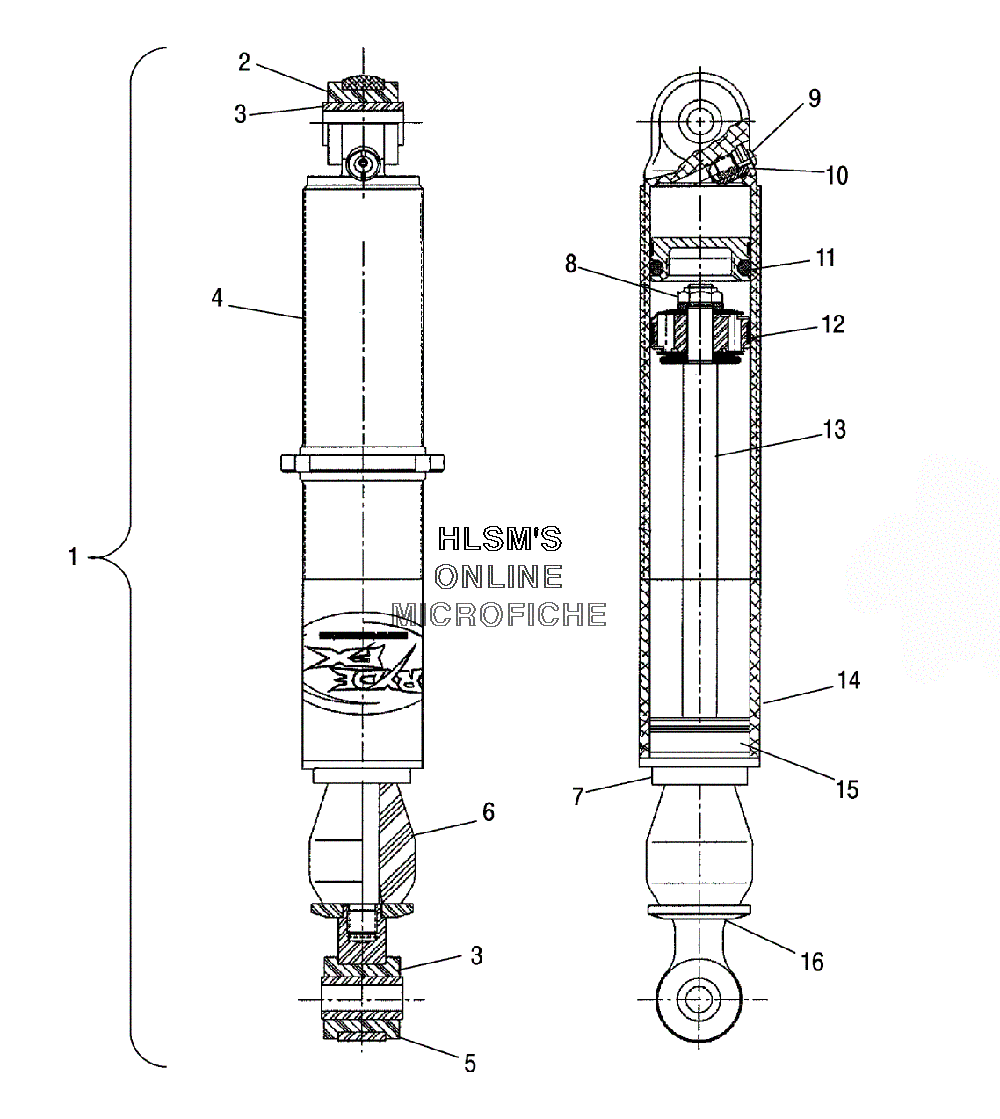

SUSPENSION - IFS SHOCK для Polaris 600 SWITCHBACK (S05NS6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17043083 SHOCK IFS, ARVIN IFPSHOCK IFS, ARVIN IFP
-
21700036 BUSHINGBUSHING
-
31700079 SLEEVESLEEVE
-
41700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
51700072 BUSHINGBUSHING
-
61700042 BUMPER, COMPRESSIONBUMPER, COMPRESSION
-
71700156 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
81700057 NUTNUT
-
91700056 VALVE SCREWVALVE SCREW
-
101700076 PRESS VALVE ASSYPRESS VALVE ASSY
-
101700047 PRESS VALVE O-RINGPRESS VALVE O-RING
-
111700023 IFPIFP
-
111700032 IFP WEAR BANDIFP WEAR BAND
-
111700048 IFP O-RINGIFP O-RING
-
121700108 BANDED PISTON .086" ORIFICEBANDED PISTON .086" ORIFICE
-
121700031 PISTON WEAR BANDPISTON WEAR BAND
-
121700077 TOP OUT WASHERTOP OUT WASHER
-
121700078 BACK-UP WASHERBACK-UP WASHER
-
131700194 SHAFTSHAFT
-
141700051 CYLINDER HEAD O-RINGCYLINDER HEAD O-RING
-
151700021 ROD SEALROD SEAL
-
161700010 MOUNT (UPPER)MOUNT (UPPER)
