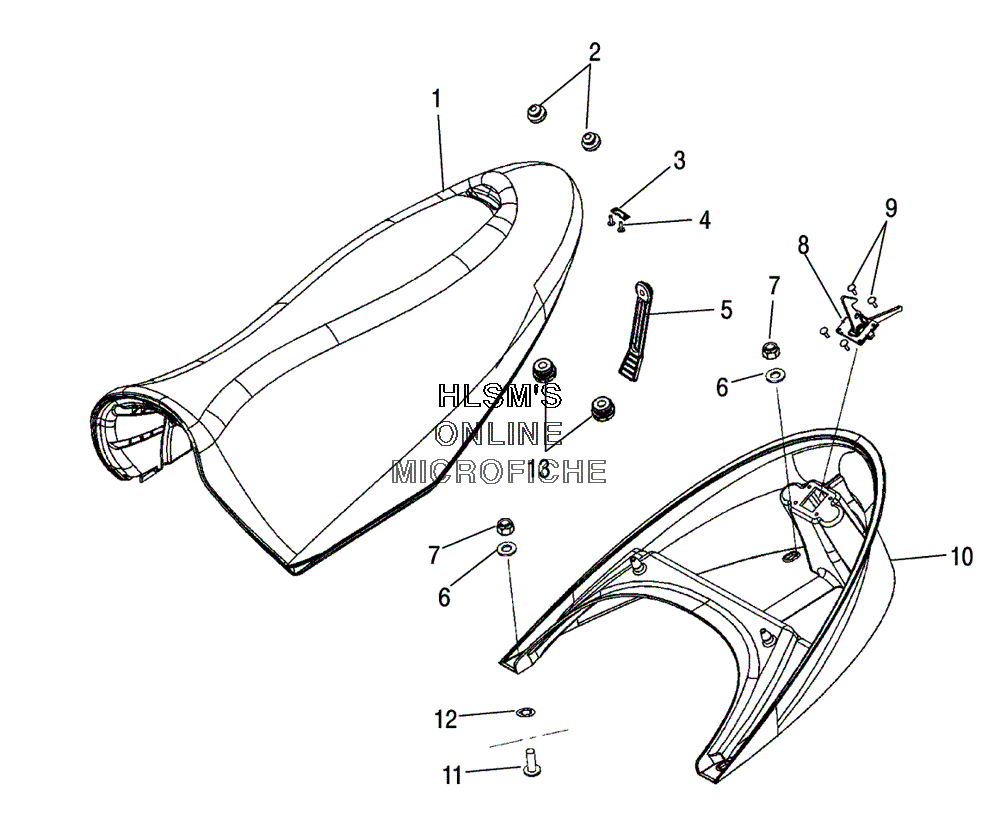

SEAT W/ TAILLIGHT для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска
-
№АртикулНазвание
-
12683581 SEAT ASSY, SWITCHBACKSEAT ASSY, SWITCHBACK
-
12683580 SEAT COVER ASSYSEAT COVER ASSY
-
25412067 BUMPER RUBBERBUMPER RUBBER
-
35247617 PLATE STRIKERPLATE STRIKER
-
47661184 RIVET ALUMINUMRIVET ALUMINUM
-
55431501 STRAPSTRAP
-
67555859 WASHER, FLATWASHER, FLAT
-
77542122 NUT NYLOKNUT NYLOK
-
81014527 SEAT LATCH ASSYSEAT LATCH ASSY
-
97661184 RIVET ALUMINUMRIVET ALUMINUM
-
102632845-070 SEAT WEDGE ASSY (BLACK)SEAT WEDGE ASSY (BLACK)
-
117515203 BOLTBOLT
-
127670154 RETAINER BOLT, 1/4-20RETAINER BOLT, 1/4-20
-
135412507 GROMMETGROMMET
