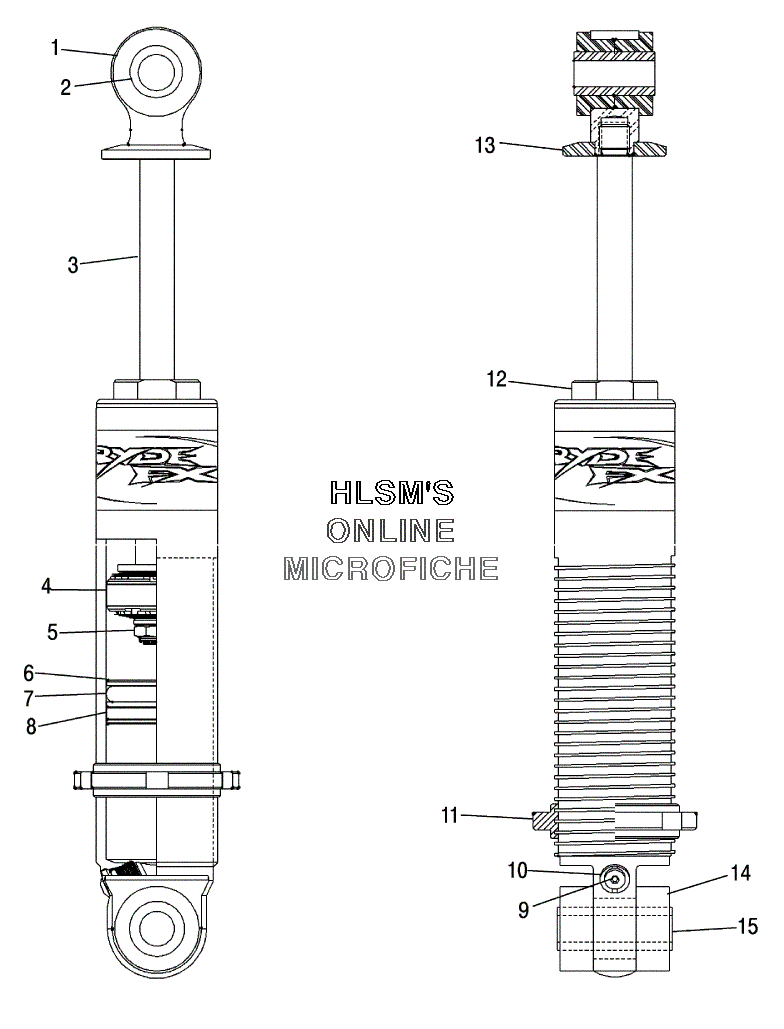

SUSPENSION - FRONT SHOCK TRACK для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска
-
№АртикулНазвание
-
11700036 BUSHINGBUSHING
-
21700157 SLEEVESLEEVE
-
31700182 SHAFTSHAFT
-
41700103 BANDED PISTON .070" ORIFCE ASSYBANDED PISTON .070" ORIFCE ASSY
-
41700031 PISTON WEAR BANDPISTON WEAR BAND
-
41700077 TOP OUT WASHERTOP OUT WASHER
-
41700078 BACK UP WASHERBACK UP WASHER
-
51700057 NUTNUT
-
61700023 IFPIFP
-
71700048 IFP O-RINGIFP O-RING
-
81700032 IFP WEAR BANDIFP WEAR BAND
-
91700055 VALVE SCREWVALVE SCREW
-
101700184 PRESS VALVE ASSYPRESS VALVE ASSY
-
111700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
121700156 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
131700011 MOUNT (UPPER)MOUNT (UPPER)
-
141700074 BUSHINGBUSHING
-
151700161 SLEEVESLEEVE
-
157042335 SHOCK F/T (IFP)SHOCK F/T (IFP)
