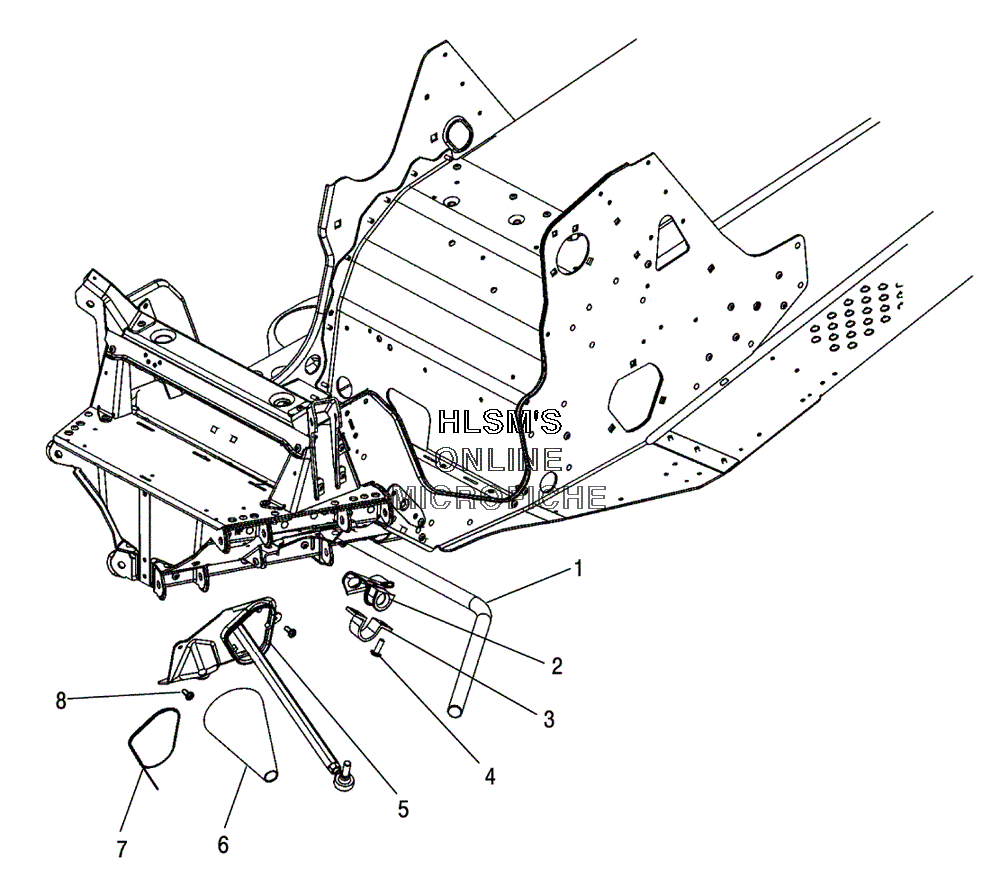

SWAY BAR для Polaris 900 SWITCHBACK (S05PS8DS) - 2005 года выпуска
-
№АртикулНазвание
-
15247906-067 BAR SWAY, 9/16 (BLACK)BAR SWAY, 9/16 (BLACK)
-
25435516 BUSHING SWAY BAR, 9/16 (LEFT)BUSHING SWAY BAR, 9/16 (LEFT)
-
25435517 BUSHING SWAY BAR, 9/16 (RIGHT)BUSHING SWAY BAR, 9/16 (RIGHT)
-
35134458 CLAMP SWAY BAR MOUNTINGCLAMP SWAY BAR MOUNTING
-
47518408 SCREW TRTXSCREW TRTX
-
55435134 COVER TIE ROD BOOT (LEFT)COVER TIE ROD BOOT (LEFT)
-
55435135 COVER TIE ROD BOOT (RIGHT)COVER TIE ROD BOOT (RIGHT)
-
62683640 BOOT TIE RODBOOT TIE ROD
-
77080761 CABLE TIE, 14"CABLE TIE, 14"
-
87518256 SCREW TORXSCREW TORX
