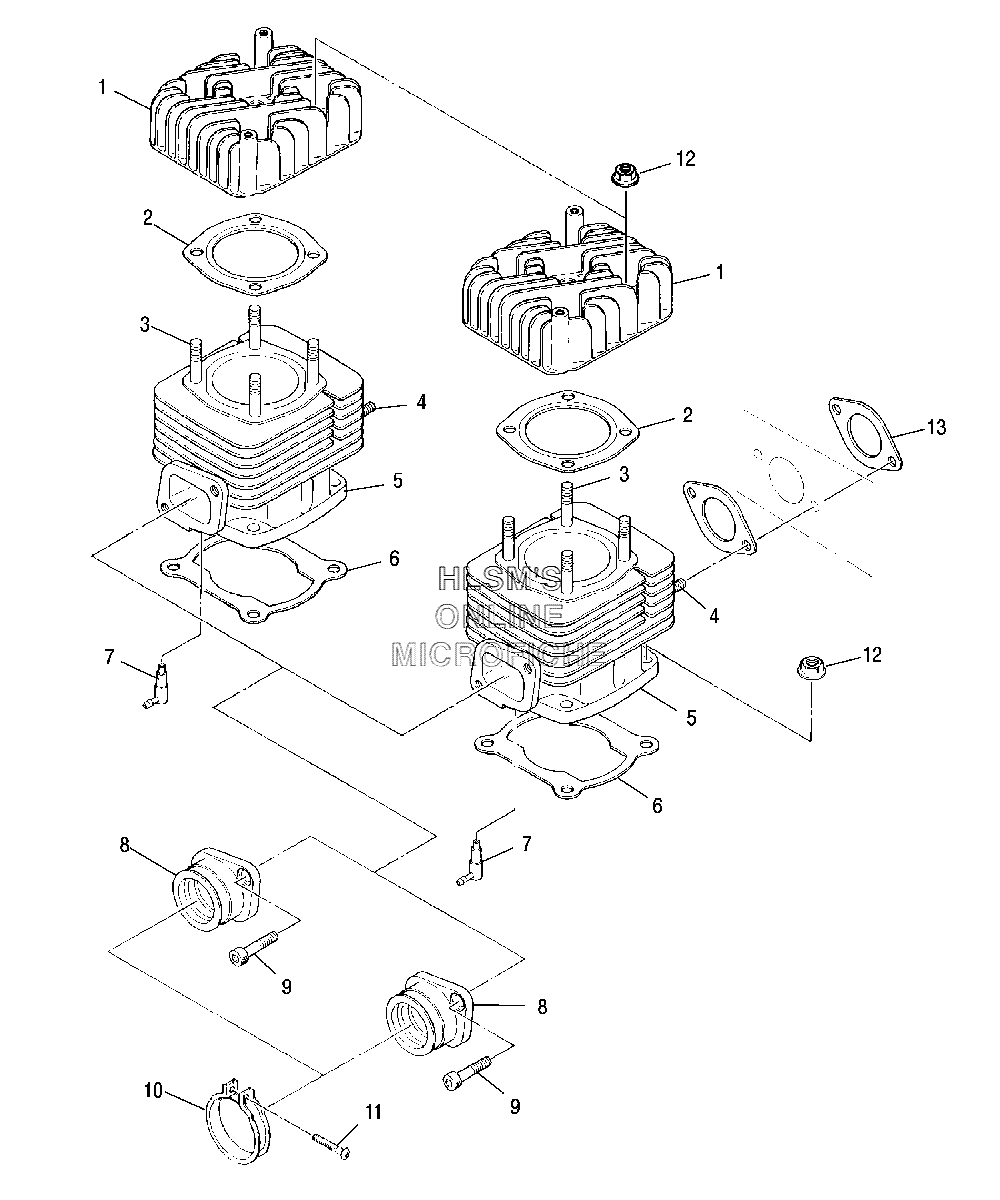

CYLINDER ASSEMBLY для Polaris 340 Touring (S06NT3AS) - 2006 года выпуска
-
№АртикулНазвание
-
13083573 HEAD, CYLINDERHEAD, CYLINDER
-
23085844 GASKET, HEAD ASSYGASKET, HEAD ASSY
-
33080283 STUDSTUD
-
43085326 STUDSTUD
-
53083570 CYLINDER ASSY (INCL. 3, 4)CYLINDER ASSY (INCL. 3, 4)
-
63085843 GASKET CYLINDERGASKET CYLINDER
-
73086785 VALVE, CHECK ASSYVALVE, CHECK ASSY
-
83083576 ADAPTER ASSYADAPTER ASSY
-
93081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
103082257 BAND, ADAPTER ASSY (INCL. 11)BAND, ADAPTER ASSY (INCL. 11)
-
113081497 SCREW, PAN HEADSCREW, PAN HEAD
-
123082910 NUT FLANGENUT FLANGE
-
133085845 GASKET, EXHAUST ASSYGASKET, EXHAUST ASSY
