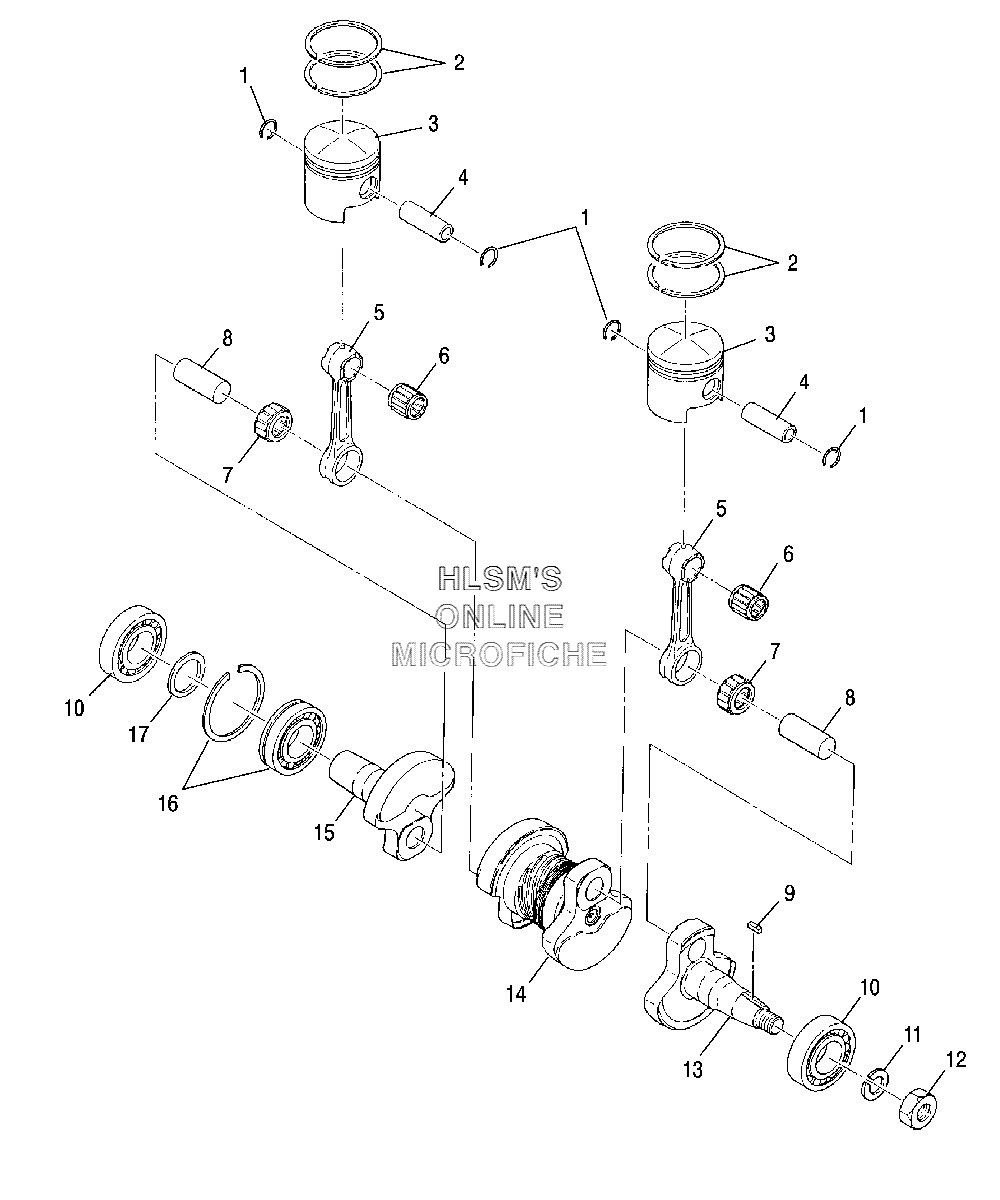

PISTON AND CRANKSHAFT для Polaris 340 Touring (S06NT3AS) - 2006 года выпуска

№

Артикул

Название
1

3084456 CLIP, PISTON PIN

CLIP, PISTON PIN

1 000 ₽
2

3083587 SET PISTON, RING (STD)

SET PISTON, RING (STD)

6 660 ₽
2

3084319 SET, PISTON, RING (.010''/.25MM O/S)

SET, PISTON, RING (.010''/.25MM O/S)

6 660 ₽
2

3083719 SET PISTON, RING (.020''/.50MM O/S)

SET PISTON, RING (.020''/.50MM O/S)

6 660 ₽
3

3085840 SET PISTON (STD) (INCL. 1)

SET PISTON (STD) (INCL. 1)

29 120 ₽
3

3085841 SET PISTON (.010''/.25MM O/S) (INCL. 1)

SET PISTON (.010''/.25MM O/S) (INCL. 1)

30 160 ₽
3

3085842 SET PISTON (.020''/.50MM O/S) (INCL. 1)

SET PISTON (.020''/.50MM O/S) (INCL. 1)

30 160 ₽
4

3085021 PIN, PISTON

PIN, PISTON

5 410 ₽
5

3083581 ROD, CONNECTING

ROD, CONNECTING

31 200 ₽
6

3080998 BEARING, SMALL END

BEARING, SMALL END

4 580 ₽
7

3083583 BEARING, LARGE END

BEARING, LARGE END

6 030 ₽
8

3083582 PIN, CRANK

PIN, CRANK

4 160 ₽
9

3081543 KEY WOODRUFF

KEY WOODRUFF

1 870 ₽
10

3084580 BEARING, BALL

BEARING, BALL

7 700 ₽
11

3083094 WASHER SPRING

WASHER SPRING

150 ₽
12

3083093 NUT

NUT

3 120 ₽
13

3089464 CRANKSHAFT ASSY (INCL. 5, 7, 8, 10, 13-17)

CRANKSHAFT ASSY (INCL. 5, 7, 8, 10, 13-17)

130 ₽
13

3089465 CRANKSHAFT 1, MAGNETO END

CRANKSHAFT 1, MAGNETO END

66 560 ₽
14

3083579 CRANKSHAFT #2 ASSY (INCL. 8)

CRANKSHAFT #2 ASSY (INCL. 8)

101 920 ₽
15

3089466 CRANKSHAFT 3 (CENTER)

CRANKSHAFT 3 (CENTER)

39 520 ₽
16

3084602 BEARING, BALL

BEARING, BALL

7 910 ₽
17

3083399 SPACER

SPACER

220 ₽
