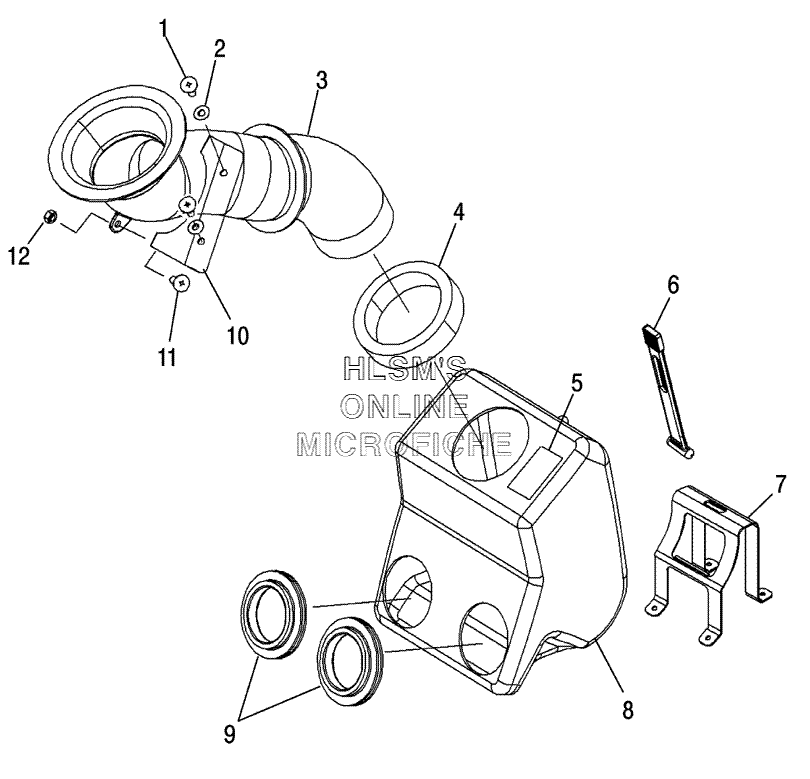

AIR BOX для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
17512253 SCREWSCREW
-
27552604 WASHERWASHER
-
35436023 TUBE-INTAKETUBE-INTAKE
-
45812802 FOAM-TUBE/AIRBOXFOAM-TUBE/AIRBOX
-
57073426 DECAL, GREASINGDECAL, GREASING
-
65436090 STRAP-RUBBERSTRAP-RUBBER
-
75248960 BRACKET, MOUNT, AIRBOXBRACKET, MOUNT, AIRBOX
-
81203110 AIRBOX ASSY., SILENCER (INCL .5, 9)AIRBOX ASSY., SILENCER (INCL .5, 9)
-
95412762 BOOT-CARBBOOT-CARB
-
105249079 BRACKET-TUBE INTAKEBRACKET-TUBE INTAKE
-
117515166 SCREWSCREW
-
127542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
