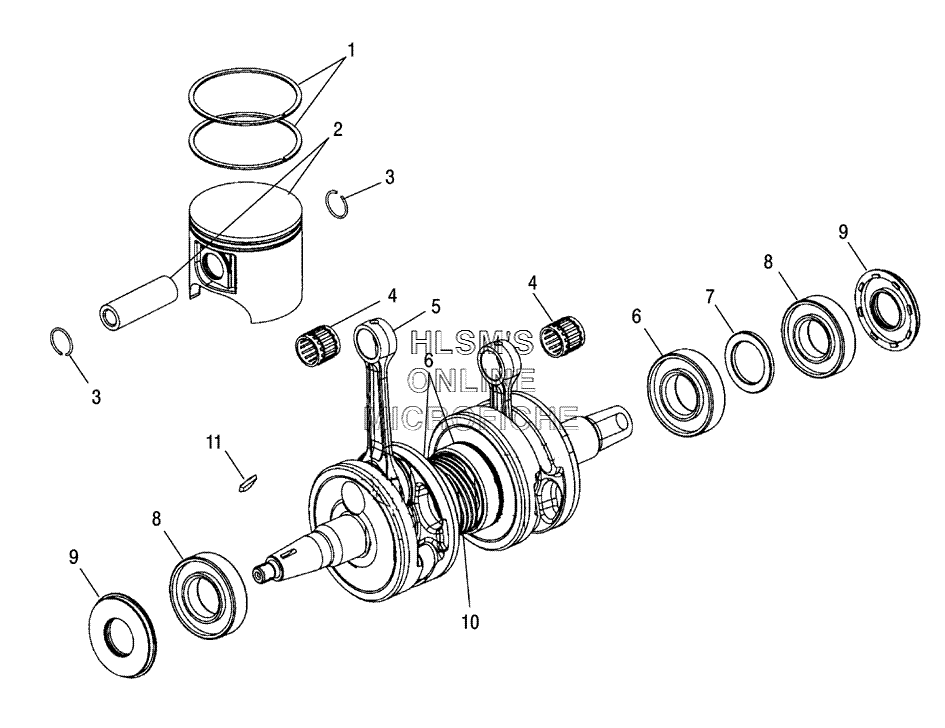

PISTON AND CRANKSHAFT для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
12202156 PISTON RING KITPISTON RING KIT
-
22202155 PISTON KIT (INCL. 1, 3 AND PISTON PIN)PISTON KIT (INCL. 1, 3 AND PISTON PIN)
-
33022950 CIRCLIP, PISTONCIRCLIP, PISTON
-
43514365 BEARINGBEARING
-
52201868 CONNECTION ROD KITCONNECTION ROD KIT
-
63514363 BEARING-BALLBEARING-BALL
-
75131899 SPACERSPACER
-
83585503 BEARING, BALLBEARING, BALL
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105133689 GEAR-PUMP DRIVE 10 STARTGEAR-PUMP DRIVE 10 START
-
117721117 KEY, WOODRUFFKEY, WOODRUFF
-
-2202688 CRANKSHAFT KIT (INCL. 6-10)CRANKSHAFT KIT (INCL. 6-10)
