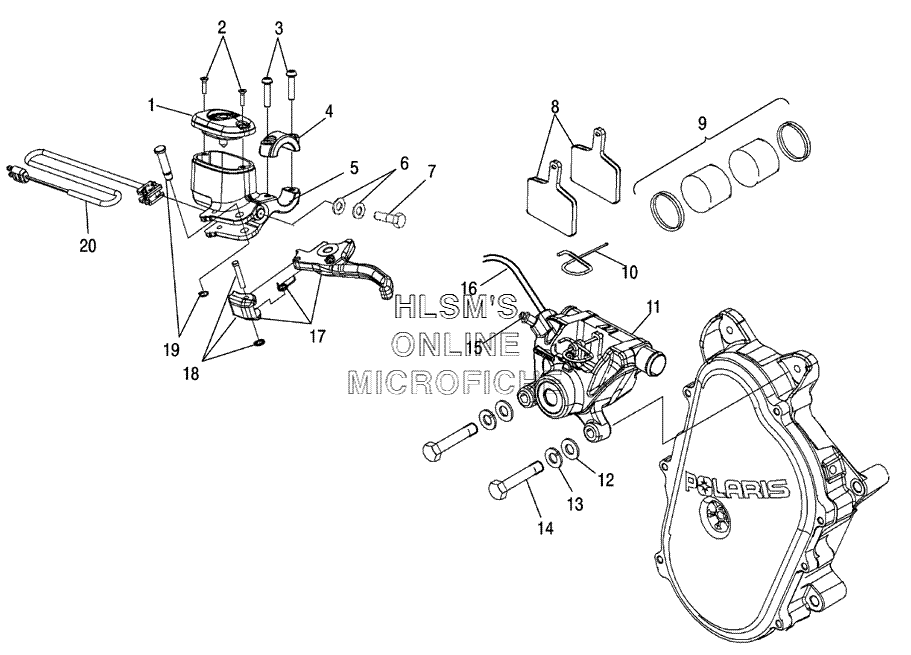

BRAKE ASSEMBLY для Polaris 440 IQ (S06MX4CS) - 2006 года выпуска
-
№АртикулНазвание
-
12202795 RES.COVER KITRES.COVER KIT
-
22202796 RES COVER KITRES COVER KIT
-
32202798 CLAMP KITCLAMP KIT
-
42202797 CLAMP KITCLAMP KIT
-
52202793 PISTON W/RESERVOIR KITPISTON W/RESERVOIR KIT
-
62202790 STATO SEAL WASHER KIT (2 PER)STATO SEAL WASHER KIT (2 PER)
-
72202789 BANJO KITBANJO KIT
-
82202202 BRAKE PAD KIT (2 PER)BRAKE PAD KIT (2 PER)
-
92202207 PISTON/SEAL KITPISTON/SEAL KIT
-
92202204 SEAL KITSEAL KIT
-
102202206 PIN RETAINING KITPIN RETAINING KIT
-
112202390 BRAKE CALIPER ASSY. (INCL. 8-10)BRAKE CALIPER ASSY. (INCL. 8-10)
-
127556160 WASHERWASHER
-
137552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
147515534 SCREWSCREW
-
152202205 BLEEDER FITTING KITBLEEDER FITTING KIT
-
162202788 HOSE 29.18"HOSE 29.18"
-
172202791 BRAKE LEVER KIT W/PARK (INCL. SPRING)BRAKE LEVER KIT W/PARK (INCL. SPRING)
-
182202800 PARK LEVER SUB ASMPARK LEVER SUB ASM
-
192202799 PIVOT PINANDSNAP RNGPIVOT PINANDSNAP RNG
-
202202794 BRAKE LIGHT SWTCHBRAKE LIGHT SWTCH
-
-2202792 MASTER CYLINDER ASSY. (INCL. 1-5, 17-20)MASTER CYLINDER ASSY. (INCL. 1-5, 17-20)
