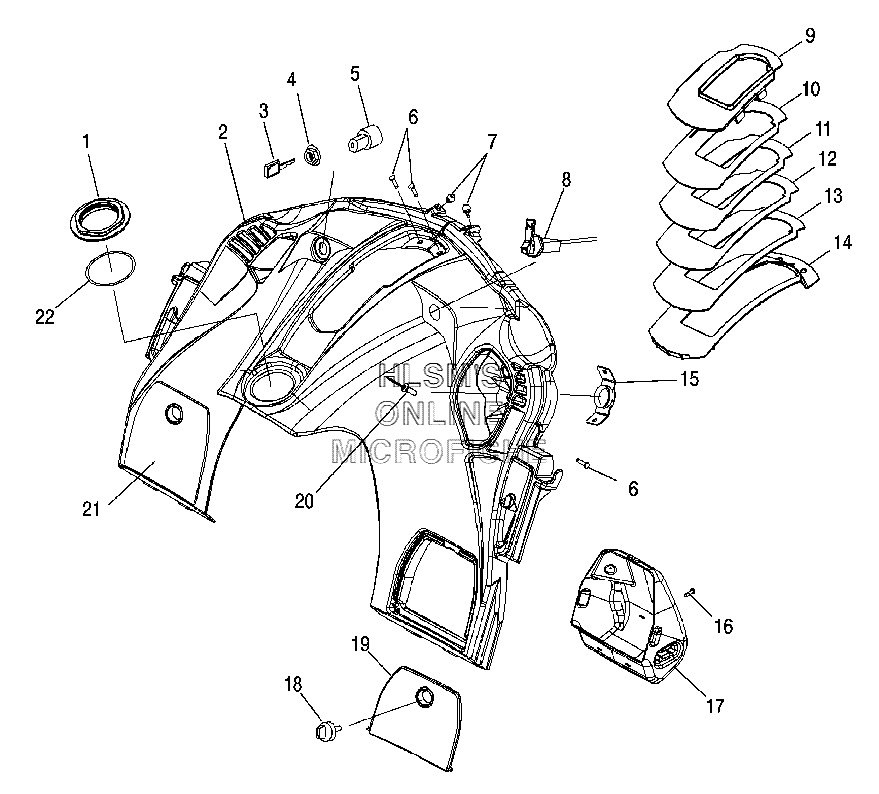

CONSOLE для Polaris 600 HO Fusion (S06MP6FS) - 2006 года выпуска
-
№АртикулНазвание
-
15435156 NUT-FILLER NECKNUT-FILLER NECK
-
22633077-070 CONSOLE ASSY. (BLACK) (INCL. WARNING DECALS)CONSOLE ASSY. (BLACK) (INCL. WARNING DECALS)
-
35410611 KEYKEY
-
47547035 NUT, IGNITIONNUT, IGNITION
-
52200358 KIT, IGN.SWITCHKIT, IGN.SWITCH
-
67517916 SCREWSCREW
-
75412465 BUMPER-GROMMET (1/4'')BUMPER-GROMMET (1/4'')
-
87080946 CABLE-CHOKECABLE-CHOKE
-
82201439 CHOKE LEVER KIT, REPAIRCHOKE LEVER KIT, REPAIR
-
85432944 NUT, CHOKENUT, CHOKE
-
95436222 COVER-ADJUST STEERING (TOP)COVER-ADJUST STEERING (TOP)
-
105436223 PLATE-ADJUST STEERING, 1PLATE-ADJUST STEERING, 1
-
115436224 PLATE-ADJUST STEERING, 2PLATE-ADJUST STEERING, 2
-
125436225 PLATE-ADJUST STEERING, 3PLATE-ADJUST STEERING, 3
-
135436226 PLATE-ADJUST STEERING, 4PLATE-ADJUST STEERING, 4
-
145436227 COVER-ADJUST STEERING (BOTTOM)COVER-ADJUST STEERING (BOTTOM)
-
155248563 BRACKET-ROPE GUIDEBRACKET-ROPE GUIDE
-
167512026 SCREWSCREW
-
175435944 COMPARTMENT-STORAGE (RIGHT)COMPARTMENT-STORAGE (RIGHT)
-
185435207-070 KEY-BLACKKEY-BLACK
-
192632825-070 DOOR ASSY., CONSOLE (BLACK) (INCL. LOCK)DOOR ASSY., CONSOLE (BLACK) (INCL. LOCK)
-
207621323 POP RIVETPOP RIVET
-
215435415-070 DOOR-CONSOLE (LEFT/BLACK)DOOR-CONSOLE (LEFT/BLACK)
-
225411174 O-RINGO-RING
