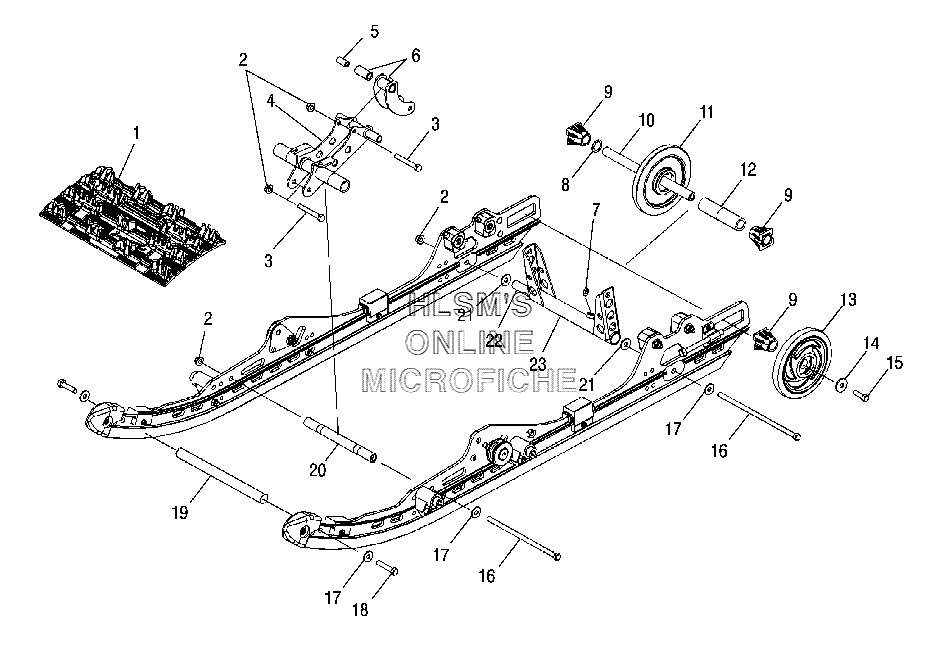

SUSPENSION - REAR (IQ) для Polaris 600 HO Fusion (S06MP6FS) - 2006 года выпуска
-
№АртикулНазвание
-
15412728 TRACK-121''X15''X1.25'' (RIPSAW)TRACK-121''X15''X1.25'' (RIPSAW)
-
15411994 TRACK, 121''X1'', SHOCKWAVE (SNOW)TRACK, 121''X1'', SHOCKWAVE (SNOW)
-
15222840 CLIP, GUIDECLIP, GUIDE
-
27547263 NUTNUT
-
37515417 SCREWSCREW
-
41542129-067 H-BRACKET (BLACK)H-BRACKET (BLACK)
-
55333906 SLEEVESLEEVE
-
61542059-067 SHOCK PIVOT (BLACK)SHOCK PIVOT (BLACK)
-
65134600 BUSHINGBUSHING
-
77080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
87555918 BUSHINGBUSHING
-
95432535 SPACER, IDLERSPACER, IDLER
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
111594087 WHEEL, PLAIN ASSY.WHEEL, PLAIN ASSY.
-
125333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
131590303-293 WHEEL, IDLER ASSY. (INDY RED)WHEEL, IDLER ASSY. (INDY RED)
-
131590303-513 WHEEL, IDLER ASSY. (BLUE)WHEEL, IDLER ASSY. (BLUE)
-
131590303-070 WHEEL ASSY., IDLER (BLACK)WHEEL ASSY., IDLER (BLACK)
-
137710444 RING, RETAININGRING, RETAINING
-
133514384 BEARINGBEARING
-
147556130 WASHERWASHER
-
157517731 BOLTBOLT
-
167517921 SCREWSCREW
-
177556188 WASHER-FLATWASHER-FLAT
-
187518005 SCREWSCREW
-
195134078 SHAFT-C'BORESHAFT-C'BORE
-
205134517 SHAFTSHAFT
-
217555893 WASHER, FLATWASHER, FLAT
-
225333404 SHAFTSHAFT
-
231541928-067 REAR PIVOT ARM (BLACK)REAR PIVOT ARM (BLACK)
