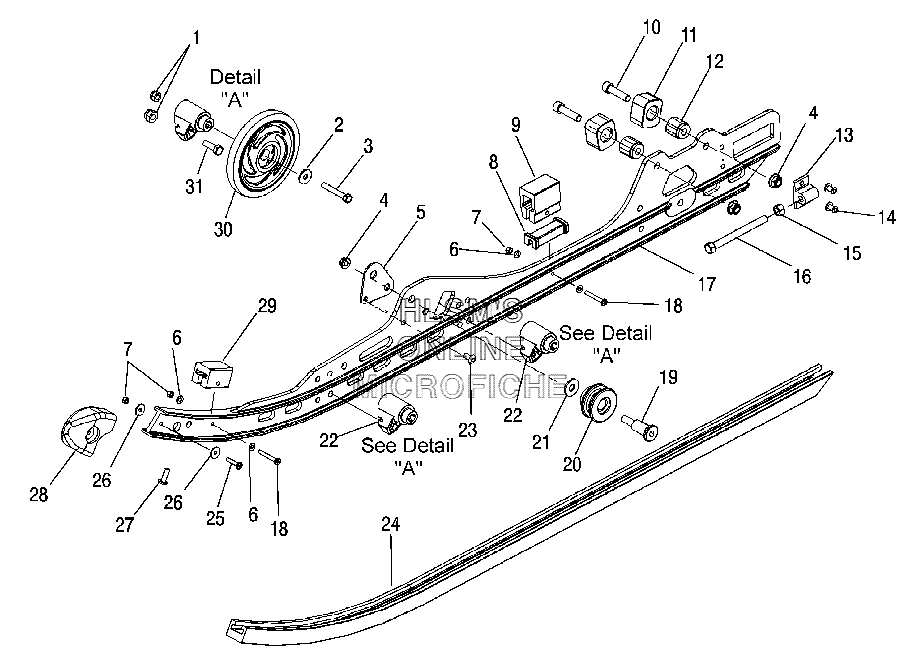

RAIL ASSEMBLY #1 для Polaris 600 HO Fusion (S06MP6FS) - 2006 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27556179 WASHER-SPRINGWASHER-SPRING
-
37515346 SCREWSCREW
-
47547263 NUTNUT
-
55248414 BRACKET-RAIL REINFBRACKET-RAIL REINF
-
67555783 WASHER, FLATWASHER, FLAT
-
77541925 NUT, NYLOKNUT, NYLOK
-
85432946 LINER, BUMPERLINER, BUMPER
-
95521498 BUMPER, JOUNCE REARBUMPER, JOUNCE REAR
-
107515537 BOLTBOLT
-
115410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
125131113 MOUNT, BUMPERMOUNT, BUMPER
-
135130530 BLOCK-IDLER BOLT ADJ.BLOCK-IDLER BOLT ADJ.
-
147621501 RIVETRIVET
-
157542404 NUTNUT
-
167517227 SCREWSCREW
-
171542130 RAIL ASM, 121 BASIC (LEFT) (INCL. 6-9, 11, 13, 14, 25, 26, 28, 29)RAIL ASM, 121 BASIC (LEFT) (INCL. 6-9, 11, 13, 14, 25, 26, 28, 29)
-
171542131 RAIL ASM, 121 BASIC (RIGHT) (INCL. 6-9, 11, 13, 14, 25, 26, 28, 29)RAIL ASM, 121 BASIC (RIGHT) (INCL. 6-9, 11, 13, 14, 25, 26, 28, 29)
-
187510504 SCREWSCREW
-
197518359 SCREWSCREW
-
205432982 ROLLER, SPRING, SQUAREROLLER, SPRING, SQUARE
-
217555983 WASHER, FLATWASHER, FLAT
-
225631446 BLOCK-WHEEL MOUNTBLOCK-WHEEL MOUNT
-
237661845 RIVETRIVET
-
245521632 SLIDER, SERVICESLIDER, SERVICE
-
257518335 BOLTBOLT
-
267555792 WASHERWASHER
-
277515199 SCREWSCREW
-
285435527 CAP-RAIL TIPCAP-RAIL TIP
-
295521499 BUMPER, JOUNCE FRONTBUMPER, JOUNCE FRONT
-
301590387-293 WHEEL ASSY., (5.62, 6004) (RED)WHEEL ASSY., (5.62, 6004) (RED)
-
301590387-513 WHEEL ASSY., (5.62, 6004) (BLUE)WHEEL ASSY., (5.62, 6004) (BLUE)
-
301590387-070 WHEEL ASSY., (5.62, 6004) (BLACK)WHEEL ASSY., (5.62, 6004) (BLACK)
-
303514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
307710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
317515317 BOLTBOLT
