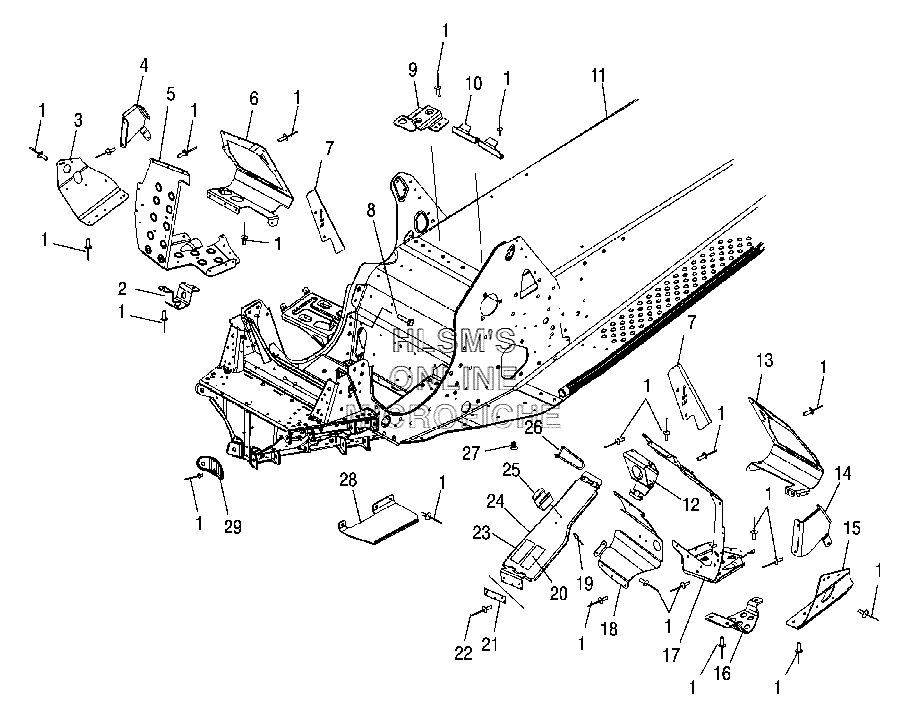

CHASSIS - FRONT для Polaris 600 HO RMK 144'' (S06PK6FS) - 2006 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
25248945 LEG-SUPPORT (RIGHT)LEG-SUPPORT (RIGHT)
-
35248808 SUPPORT-FOOTREST (LOWER/RIGHT)SUPPORT-FOOTREST (LOWER/RIGHT)
-
45248401 SUPPORT-FOOTREST, BUMPER (LEFT)SUPPORT-FOOTREST, BUMPER (LEFT)
-
51015091 FOOTREST ASSY., W/STUD (RIGHT)FOOTREST ASSY., W/STUD (RIGHT)
-
65248477 TOECLIP (RIGHT)TOECLIP (RIGHT)
-
75249677 CLIP-BULKHEAD SIDE (LEFT)CLIP-BULKHEAD SIDE (LEFT)
-
75249678 CLIP-BULKHEAD SIDE (RIGHT)CLIP-BULKHEAD SIDE (RIGHT)
-
87517810 SCREWSCREW
-
95249094 BRACKET-OIL BOTTLE (LOWER)BRACKET-OIL BOTTLE (LOWER)
-
105249666 BRACKET-AIRBOX (LOWER)BRACKET-AIRBOX (LOWER)
-
111010009-309 CHASSIS ASSY (NATURAL)CHASSIS ASSY (NATURAL)
-
125248507 BRKT-CLUTCH GUARD (REAR)BRKT-CLUTCH GUARD (REAR)
-
135248476 TOECLIP (LEFT)TOECLIP (LEFT)
-
145248402 SUPPORT-FOOTREST BUMPER (RIGHT)SUPPORT-FOOTREST BUMPER (RIGHT)
-
155248807 SUPPORT-FOOTREST (LOWER/LEFT)SUPPORT-FOOTREST (LOWER/LEFT)
-
165248403 LEG-SUPPORT (LEFT)LEG-SUPPORT (LEFT)
-
171015301 FOOTREST ASSY W/STUD (LEFT)FOOTREST ASSY W/STUD (LEFT)
-
185247420 BRACKET, CLUTCH-GUARDBRACKET, CLUTCH-GUARD
-
197621429 RIVETRIVET
-
207173298 DECAL-BELT REMOVALDECAL-BELT REMOVAL
-
215211722 PLATE, BACKERPLATE, BACKER
-
227621402 RIVET, POPRIVET, POP
-
237172672 DECAL-ENGINE AND CLUTCHDECAL-ENGINE AND CLUTCH
-
241014932 CLUTCH GUARD ASSYCLUTCH GUARD ASSY
-
255222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
267080216 PIN-CLUTCH COVERPIN-CLUTCH COVER
-
277670067 CLIP, DARTCLIP, DART
-
285249757 GUARD-BELTGUARD-BELT
-
295247372 BRACE-FRONT LOWER A-ARMBRACE-FRONT LOWER A-ARM
