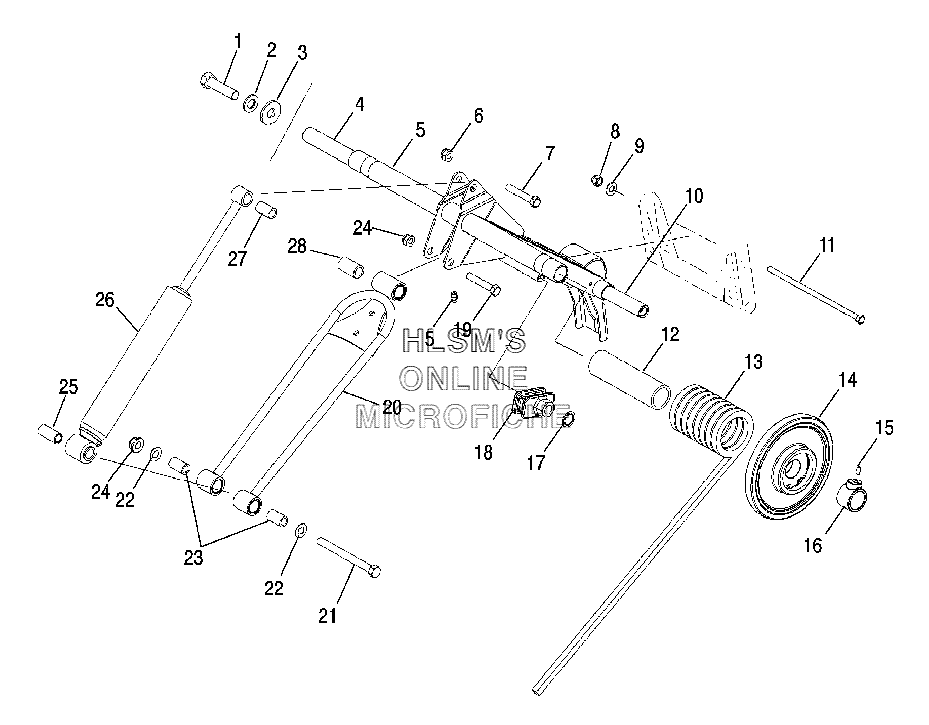

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 HO RMK 144'' (S06PK6FS) - 2006 года выпуска
-
№АртикулНазвание
-
17518005 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45133987 SHAFTSHAFT
-
51541963-067 WELD-RTA, NARROW (BLACK)WELD-RTA, NARROW (BLACK)
-
57080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
67542411 NUT, FLEXLOCNUT, FLEXLOC
-
77512410 BOLTBOLT
-
87547217 NUT, NYLOKNUT, NYLOK
-
97558402 WASHER (FLAT)WASHER (FLAT)
-
105333997 SHAFT (ANNODIZE)SHAFT (ANNODIZE)
-
117517908 SCREWSCREW
-
125434337 SLEEVE-TORSION SPRINGSLEEVE-TORSION SPRING
-
137041629-067 SPRING, TORSION (.359/77) (LEFT/BLACK)SPRING, TORSION (.359/77) (LEFT/BLACK)
-
137041630-067 SPRING, TORSION (.359/77) (RIGHT/BLACK)SPRING, TORSION (.359/77) (RIGHT/BLACK)
-
137041627-067 SPRING-TORSION (.347SQ/77Ш) (LEFT/BLACK) (OPT)SPRING-TORSION (.347SQ/77Ш) (LEFT/BLACK) (OPT)
-
137041628-067 SPRING-TORSION (.347/77Ш) (RIGHT/BLACK) (OPT)SPRING-TORSION (.347/77Ш) (RIGHT/BLACK) (OPT)
-
137041942-067 SPRING-TORSION (375SQ/77Ш) (LEFT/BLACK) (OPT)SPRING-TORSION (375SQ/77Ш) (LEFT/BLACK) (OPT)
-
137041943-067 SPRING-TORSION (.375SQ/77Ш) (RIGHT/BLACK) (OPT)SPRING-TORSION (.375SQ/77Ш) (RIGHT/BLACK) (OPT)
-
141590328 WHEEL ASSY, BOGIE PLAINWHEEL ASSY, BOGIE PLAIN
-
143514303 BEARING #6205BEARING #6205
-
147718407 RING-RETAININGRING-RETAINING
-
157518262 SCREWSCREW
-
165135424 SPACER, NYLONSPACER, NYLON
-
177080394 CLIP, PUSH ONCLIP, PUSH ON
-
185432983 ROLLER, SPRING, ADJROLLER, SPRING, ADJ
-
197515415 SCREWSCREW
-
201542170 SHOCK ROD ASSY (INCL. BUSHINGS)SHOCK ROD ASSY (INCL. BUSHINGS)
-
205435722 BUSHINGBUSHING
-
205435723 BUSHINGBUSHING
-
217518263 SCREWSCREW
-
227555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
235135043 BUSHINGBUSHING
-
247547263 NUT, NYLOKNUT, NYLOK
-
255333905 SLEEVESLEEVE
-
267043047 SHOCK-R/T, TWIN TUBE AFXSHOCK-R/T, TWIN TUBE AFX
-
267043046 SHOCK-R/T, IFPSHOCK-R/T, IFP
-
275010422 BUSHINGBUSHING
-
285134601 BUSHINGBUSHING
