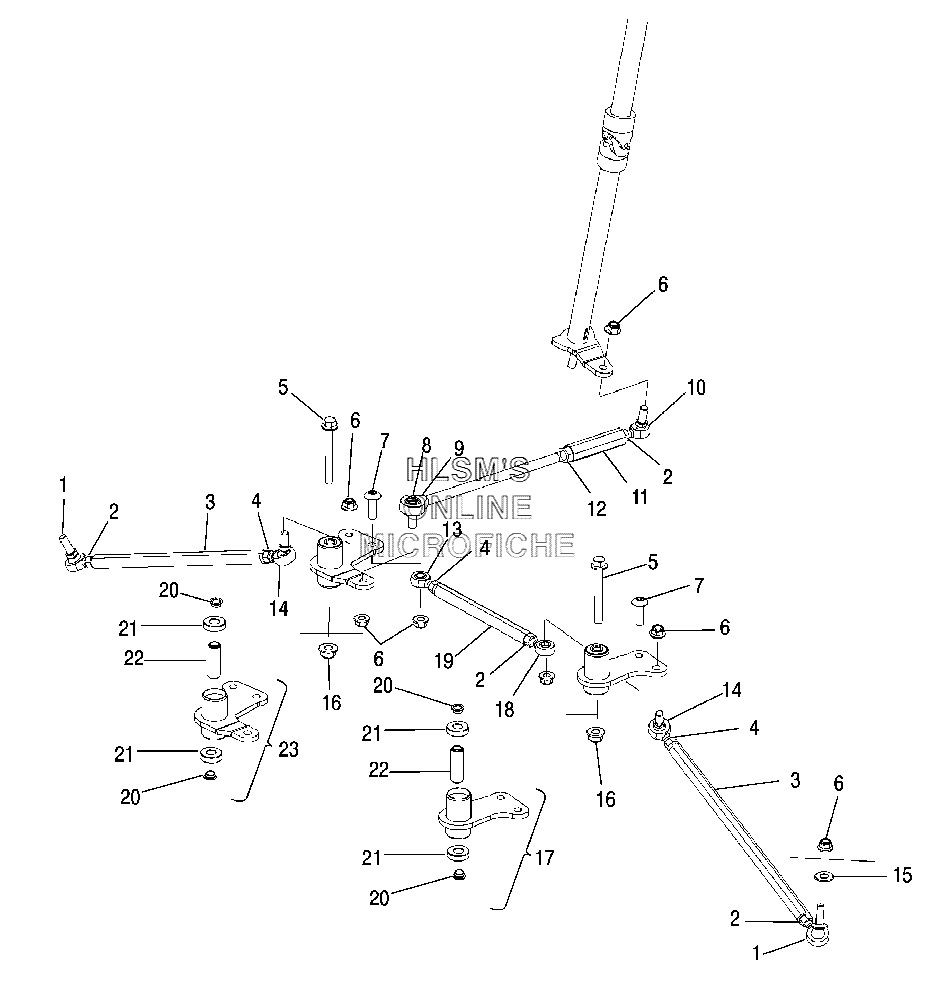

STEERING ASSEMBLY для Polaris 600 HO RMK 144'' (S06PK6FS) - 2006 года выпуска

-
№АртикулНазвание
-
17061057 ROD END-3/8, PL, 75Ш (RIGHT)ROD END-3/8, PL, 75Ш (RIGHT)
-
27542401 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
35334666 ROD-TIEROD-TIE
-
47542424 NUT (LEFT)NUT (LEFT)
-
57518277 SCREWSCREW
-
67547263 NUTNUT
-
77518372 SCREWSCREW
-
87515545 BOLTBOLT
-
97060000 ROD END 1/2-24 (LEFT)ROD END 1/2-24 (LEFT)
-
107061084 ROD END 3/8-24 (RIGHT)ROD END 3/8-24 (RIGHT)
-
115330002 ROD-DRAGLINKROD-DRAGLINK
-
127547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
137060001 ROD END-3/8 (LEFT)ROD END-3/8 (LEFT)
-
147061055 ROD END-3/8 (LEFT)ROD END-3/8 (LEFT)
-
157555806 WASHER, FLATWASHER, FLAT
-
167547180 NUT-FLANGEDNUT-FLANGED
-
171821419 ARM-IDLER ASSYARM-IDLER ASSY
-
187060002 ROD END-3/8 (RIGHT)ROD END-3/8 (RIGHT)
-
195334325 ROD-STEERING RACKROD-STEERING RACK
-
205132106 BUSHING-REDUCER (12MM TO .385)BUSHING-REDUCER (12MM TO .385)
-
213514320 BEARING-BALLBEARING-BALL
-
225133952 SPACER-TUBE PITMAN/IDLER ARMSSPACER-TUBE PITMAN/IDLER ARMS
-
231822624 PITMAN ARM ASSYPITMAN ARM ASSY
