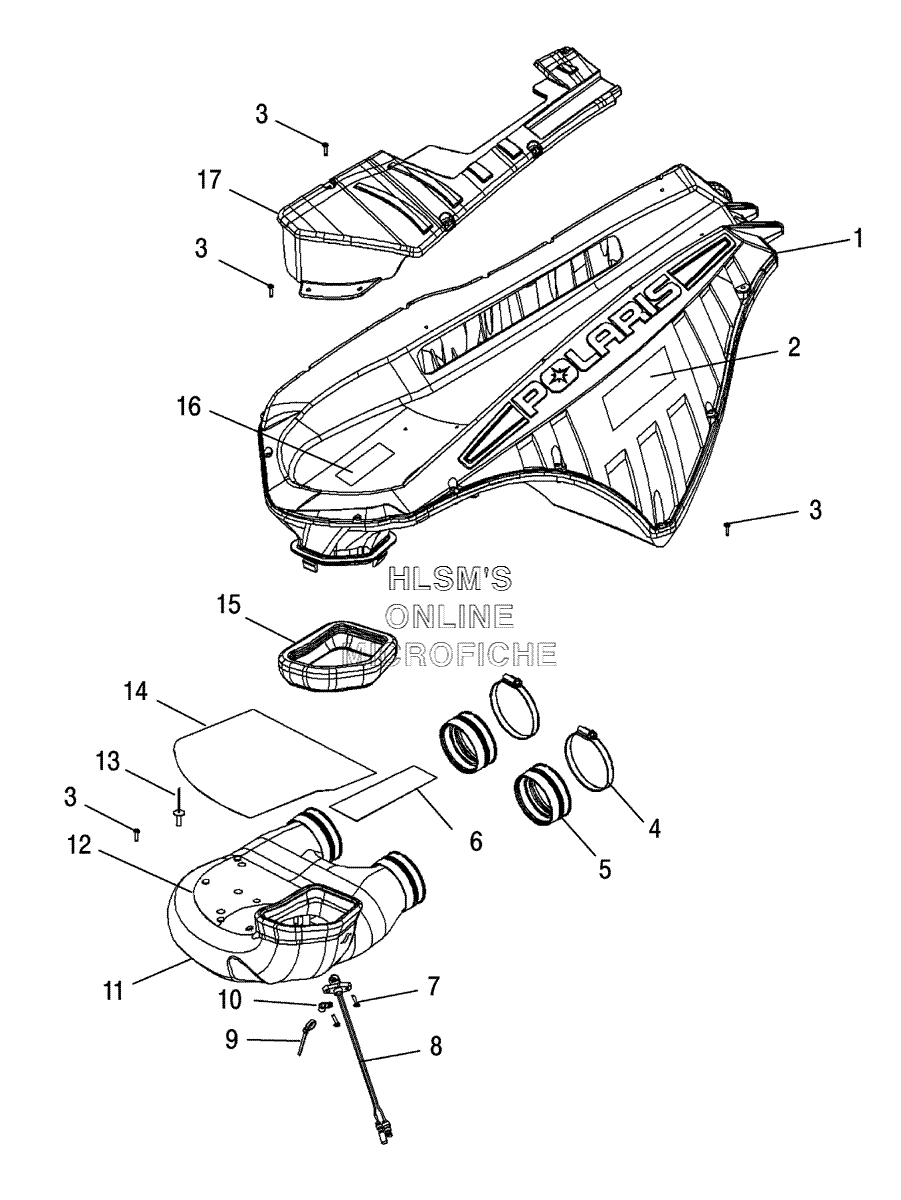

AIR INTAKE SYSTEM для Polaris 900 Fusion (S06MP8DS) - 2006 года выпуска
-
№АртикулНазвание
-
11253513 AIR SILENCER ASSYAIR SILENCER ASSY
-
15434926 AIR SILENCER ASSYAIR SILENCER ASSY
-
15435060 AIR SILENCER ASSYAIR SILENCER ASSY
-
15812618 FOIL PLENUM (LOWER)FOIL PLENUM (LOWER)
-
15812639 PLATE BAFFLE, SIDEPLATE BAFFLE, SIDE
-
15812647 FOAM PLENUM, INTERNAL (.5X2)FOAM PLENUM, INTERNAL (.5X2)
-
15812648 FOAM PLENUM, INTERNAL (1'' X7.5'')FOAM PLENUM, INTERNAL (1'' X7.5'')
-
15812649 FOAM PLENUM, INTERNAL (1'' X9'')FOAM PLENUM, INTERNAL (1'' X9'')
-
15812650 FOAM PLENUM, INTERNAL (1'' X13.5'')FOAM PLENUM, INTERNAL (1'' X13.5'')
-
15812963 FOAM SEAL (30.5'')FOAM SEAL (30.5'')
-
27173899 DECAL BELT REMOVAL/CLUTCH TORQDECAL BELT REMOVAL/CLUTCH TORQ
-
37512026 SCREWSCREW
-
47080909 CLAMP, NARROW BAND (1.77/2.75)CLAMP, NARROW BAND (1.77/2.75)
-
55412359 BOOTBOOT
-
65812622 FOILFOIL
-
77511881 SCREWSCREW
-
84011113 SENSOR AIR TEMPSENSOR AIR TEMP
-
97080138 CABLE TIECABLE TIE
-
107080539 CLAMP, NYLON, CABLECLAMP, NYLON, CABLE
-
111203147 BOOST BOX ASSY (INCL. 6, 12, 14)BOOST BOX ASSY (INCL. 6, 12, 14)
-
125248258 PLATE REINFORCEMENTPLATE REINFORCEMENT
-
137621457 RIVETRIVET
-
145812620 FOILFOIL
-
155412761 BOOT BOOST BOX RUBBERBOOT BOOST BOX RUBBER
-
167172672 DECAL ENGINE AND CLUTCHDECAL ENGINE AND CLUTCH
-
175435774 COVER PLENUMCOVER PLENUM
