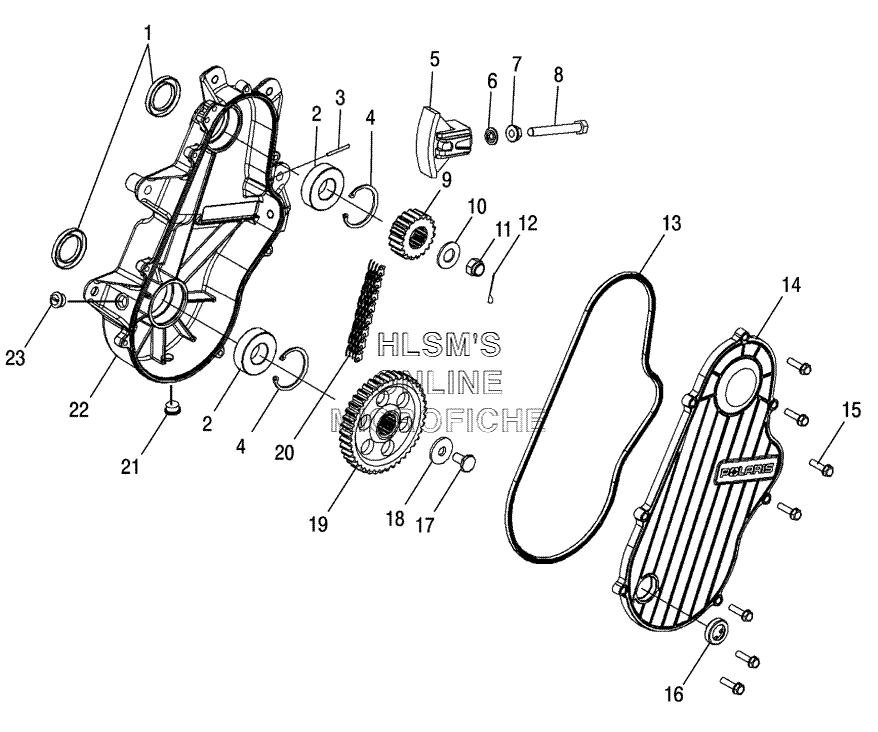

CHAINCASE ASSEMBLY для Polaris 900 Fusion (S06MP8DS) - 2006 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
23514309 BEARING, BALLBEARING, BALL
-
37661867 PIN ROLL (125''X1.25'')PIN ROLL (125''X1.25'')
-
47718406 RING, RETAININGRING, RETAINING
-
51332427 TIGHTENER, CHAIN, VESPEL ASSYTIGHTENER, CHAIN, VESPEL ASSY
-
67556340 WASHER THREAD SEAL (3/8 16 UNC)WASHER THREAD SEAL (3/8 16 UNC)
-
77547304 NUT HEXAGON FLANGENUT HEXAGON FLANGE
-
87515511 SCREWSCREW
-
93221102 SPROCKET, HYVO (25TEETH) (3/4W) (15 TEETH SPLINE)SPROCKET, HYVO (25TEETH) (3/4W) (15 TEETH SPLINE)
-
107571620 WASHER, SPRINGWASHER, SPRING
-
117547202 NUT NYLON INSERTNUT NYLON INSERT
-
127661203 PIN, COTTERPIN, COTTER
-
135812755 GASKET CHAINCASE COVER (8.373)GASKET CHAINCASE COVER (8.373)
-
141332354 COVER WITH SIGHT GLASS ASSY (8.373)COVER WITH SIGHT GLASS ASSY (8.373)
-
157512225 SCREWSCREW
-
163610126 OIL CHECK SIGHT GLASSOIL CHECK SIGHT GLASS
-
177518358 SCREW HEXAGON CAP WITH PATCHSCREW HEXAGON CAP WITH PATCH
-
187556130 WASHERWASHER
-
193222125 SPROCKET, HYVO (40 TEETH) (15 TEETH SPLINE)SPROCKET, HYVO (40 TEETH) (15 TEETH SPLINE)
-
203221108 CHAIN HYVO (78P) (3/4W)CHAIN HYVO (78P) (3/4W)
-
217052394 PLUG MAGNETICPLUG MAGNETIC
-
225134817 CHAINCASE, MACH (8.373 CD)CHAINCASE, MACH (8.373 CD)
-
237052382 PLUG, MAGNETIZEDPLUG, MAGNETIZED
