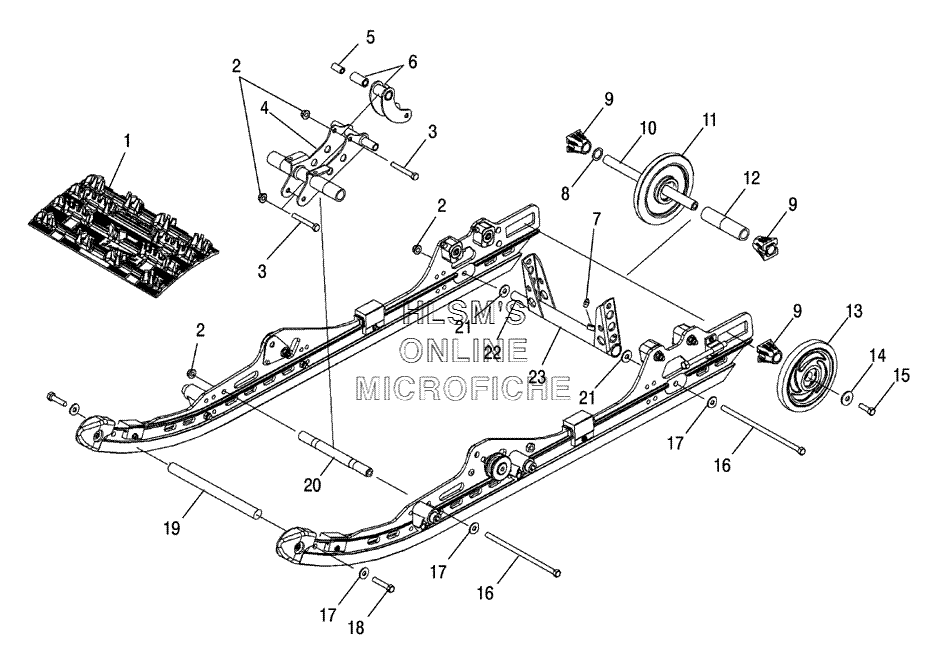

SUSPENSION - REAR - IQ для Polaris 900 Fusion (S06MP8DS) - 2006 года выпуска
-
№АртикулНазвание
-
15412728 TRACK, RIPSAW (121''X15''X1.25'')TRACK, RIPSAW (121''X15''X1.25'')
-
15222840 CLIP, GUIDECLIP, GUIDE
-
27547263 NUT NYLOKNUT NYLOK
-
37515417 SCREWSCREW
-
41542129-067 H BRACKET (BLACK)H BRACKET (BLACK)
-
55333906 SLEEVE (.385X.560X1.72)SLEEVE (.385X.560X1.72)
-
61542059-067 SHOCK PIVOT (BLACK)SHOCK PIVOT (BLACK)
-
65134600 BUSHINGBUSHING
-
77080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
87555918 BUSHINGBUSHING
-
95432535 SPACER, IDLERSPACER, IDLER
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
111594087 WHEEL, PLAIN ASSY (6.38 O.D.)WHEEL, PLAIN ASSY (6.38 O.D.)
-
125333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
131590303-293 WHEEL, IDLER ASSY (RED)WHEEL, IDLER ASSY (RED)
-
131590303-513 WHEEL, IDLER ASSY (BLUE)WHEEL, IDLER ASSY (BLUE)
-
137710444 RING, RETAININGRING, RETAINING
-
133514384 BEARINGBEARING
-
147556130 WASHERWASHER
-
157517731 BOLTBOLT
-
167517921 SCREWSCREW
-
177556188 WASHER FLWASHER FL
-
187518005 SCREWSCREW
-
195134078 SHAFT C'BORESHAFT C'BORE
-
205134517 SHAFTSHAFT
-
217555893 WASHER, FLATWASHER, FLAT
-
225333404 SHAFTSHAFT
-
231541928-067 PIVOT ARM (4.00) (REAR/BLACK)PIVOT ARM (4.00) (REAR/BLACK)
