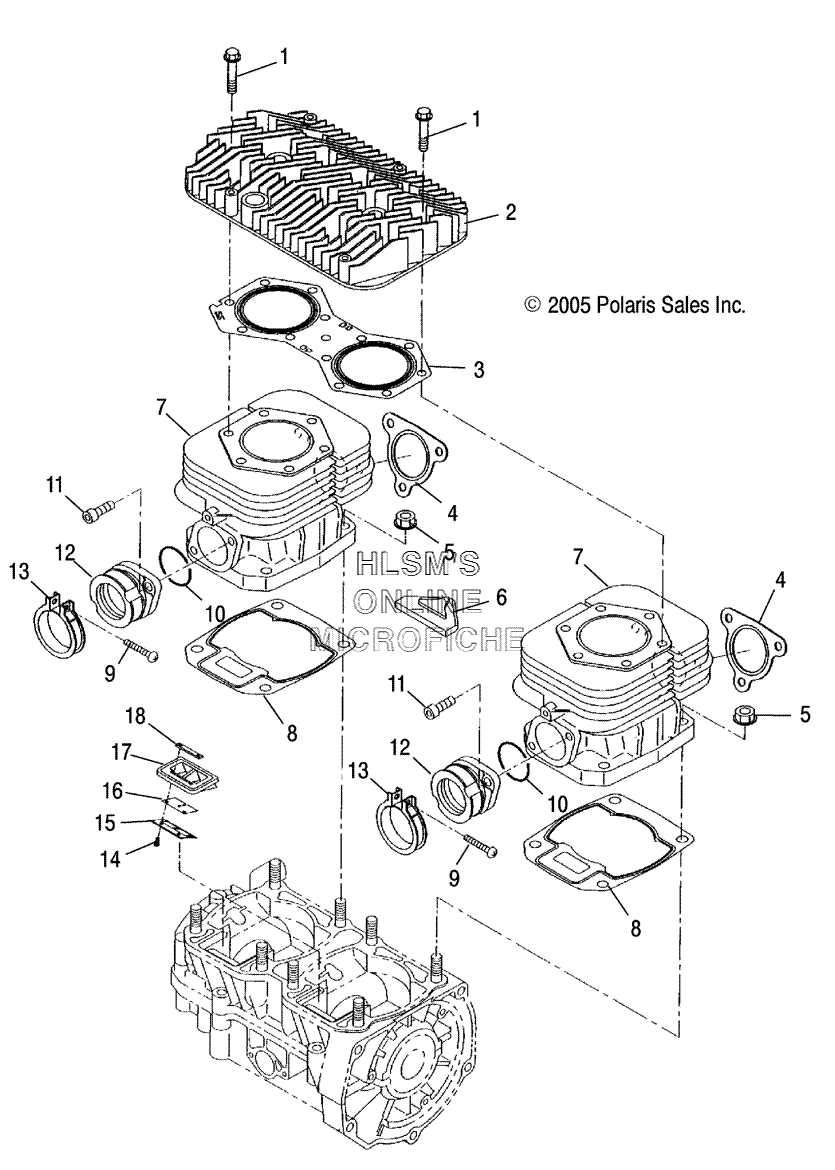

CYLINDER ASSEMBLY для Polaris Trail Touring (S06NU5BS) - 2006 года выпуска
-
№АртикулНазвание
-
13084271 BOLT, FLANGEBOLT, FLANGE
-
23088215 HEAD CYLINDERHEAD CYLINDER
-
33085704 GASKET, HEADGASKET, HEAD
-
43085714 GASKET, EXHAUSTGASKET, EXHAUST
-
53082911 NUT FLANGENUT FLANGE
-
63085692 COVER, CYLINDER BAFFLECOVER, CYLINDER BAFFLE
-
73089226 CYLINDER UNITCYLINDER UNIT
-
83085666 GASKET, CYLINDERGASKET, CYLINDER
-
93081497 SCREW, PAN HEADSCREW, PAN HEAD
-
103085619 O-RINGO-RING
-
113081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
123085670 ADAPTER ASSY (INCL. 10)ADAPTER ASSY (INCL. 10)
-
133083166 ADAPTER BAND ASSY (INCL. 9)ADAPTER BAND ASSY (INCL. 9)
-
143085717 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
153086387 STOPPERSTOPPER
-
163085715 VALVE, REEDVALVE, REED
-
173086386 VALVE ASSY, REED (INCL. 14 18)VALVE ASSY, REED (INCL. 14 18)
-
183085718 PLATEPLATE
