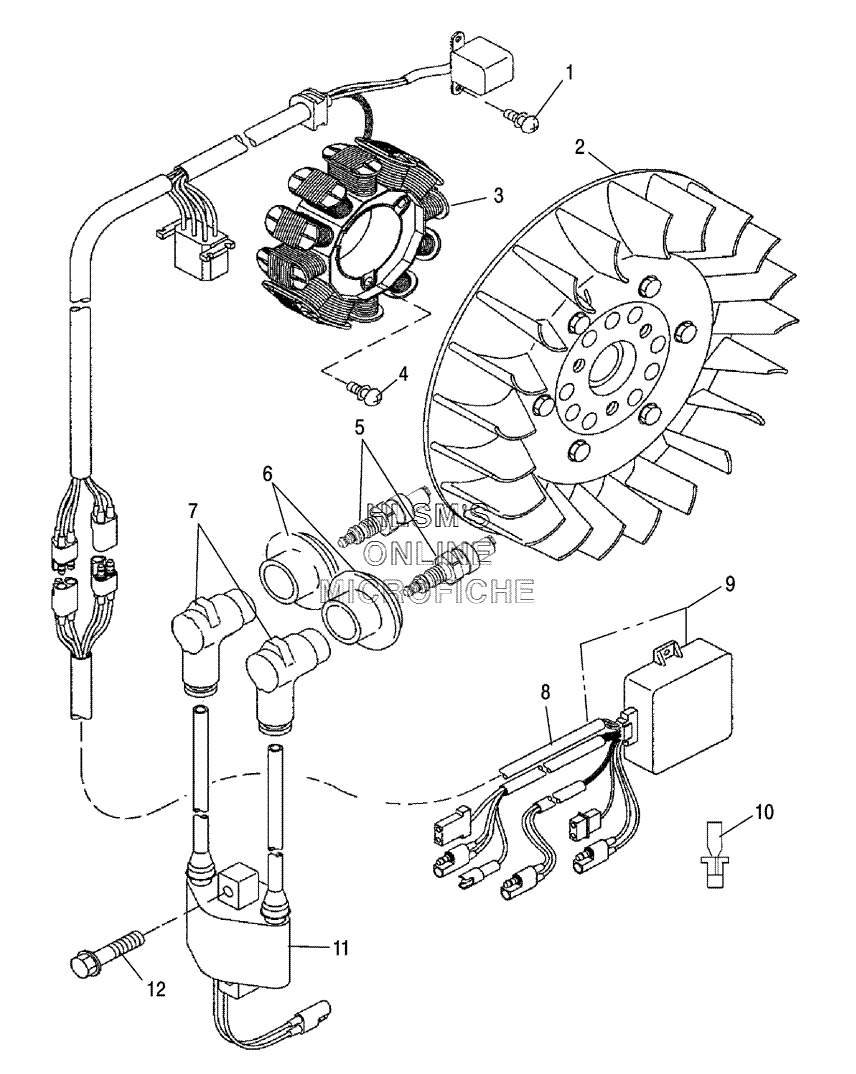

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris Trail Touring (S06NU5BS) - 2006 года выпуска
-
№АртикулНазвание
-
13085698 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
23087213 FLYWHEEL ASSYFLYWHEEL ASSY
-
33087187 STATOR ASSYSTATOR ASSY
-
43085697 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
53070163 SPARKPLUG BR9ESSPARKPLUG BR9ES
-
63085935 CAP, SPARK PLUGCAP, SPARK PLUG
-
73086976 CAP, SPARK PLUGCAP, SPARK PLUG
-
83087219 UNIT HARNESSUNIT HARNESS
-
93089229 CDI SYSTEM (INCL. 8)CDI SYSTEM (INCL. 8)
-
102461060 JUMPER STUBBER (ELECTRIC START ONLY)JUMPER STUBBER (ELECTRIC START ONLY)
-
113089478 IGNITION COIL ASSY (INCL. 7)IGNITION COIL ASSY (INCL. 7)
-
123086751 BOLT FLANGEBOLT FLANGE
