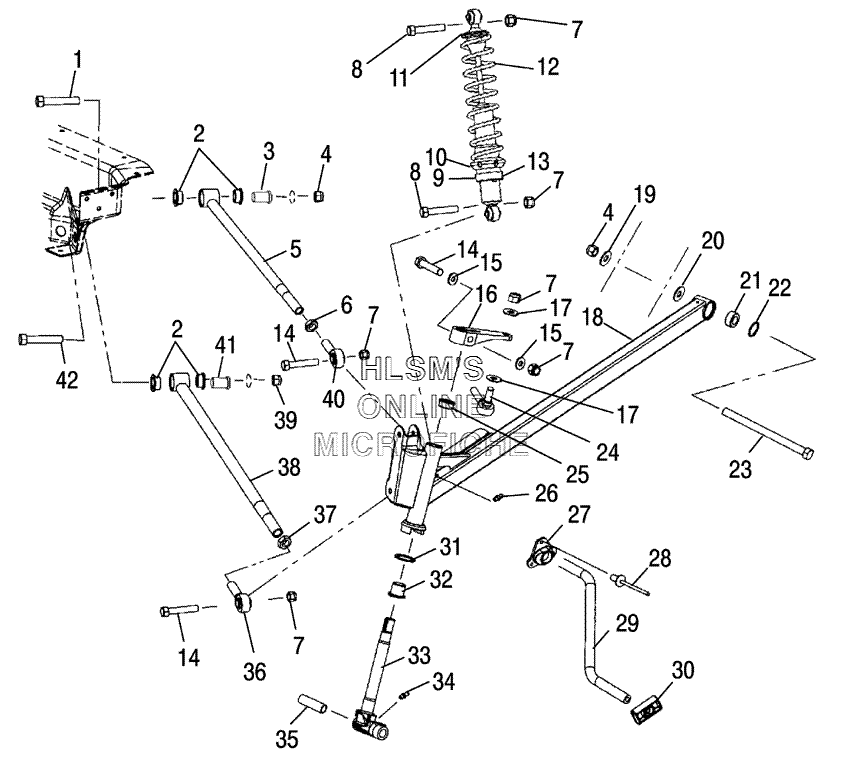

SUSPENSION - FRONT для Polaris Trail Touring (S06NU5BS) - 2006 года выпуска
-
№АртикулНазвание
-
17517980 BOLT, HEXAGON CAPBOLT, HEXAGON CAP
-
25434036 BUSHING, PIVOT (INNER)BUSHING, PIVOT (INNER)
-
35132779 BUSHING SHOULDER (.443 X.750 X 1.215)BUSHING SHOULDER (.443 X.750 X 1.215)
-
47547066 NUT, NYLOKNUT, NYLOK
-
51820679-385 WELD RADIUS ROD (UPPER/CLOUD SILVER)WELD RADIUS ROD (UPPER/CLOUD SILVER)
-
67542520 NUT, JAMNUT, JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 SCREWSCREW
-
97041918 SHOCK, GAS (11.09X16.35)SHOCK, GAS (11.09X16.35)
-
105431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
115630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
127042074-107 SPRING COMP (90/180#) (10.65) (M BLUE)SPRING COMP (90/180#) (10.65) (M BLUE)
-
127042074-256 SPRING COMP (90/180#) (10.65) (RED)SPRING COMP (90/180#) (10.65) (RED)
-
131500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
147517583 SCREW, HEXAGON CAPSCREW, HEXAGON CAP
-
157555832 WASHERWASHER
-
165132728 ARM STEERING, MACHINEDARM STEERING, MACHINED
-
177555797 WASHER, FLATWASHER, FLAT
-
181821165-385 TRAILING ARM ASSY. (CLOUD SILVER) (INCL. 21, 22)TRAILING ARM ASSY. (CLOUD SILVER) (INCL. 21, 22)
-
181821166-385 TRAILING ARM ASSY. (CLOUD SILVER) (INCL. 21, 22)TRAILING ARM ASSY. (CLOUD SILVER) (INCL. 21, 22)
-
197555820 WASHER, FLATWASHER, FLAT
-
205132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
217061042 BEARING SPHERICAL, PLASTIC (7/16)BEARING SPHERICAL, PLASTIC (7/16)
-
227710437 RING, RETAININGRING, RETAINING
-
237512099 SCREWSCREW
-
247061057 ROD END (RIGHT)ROD END (RIGHT)
-
253573909 BUSHING FLANGEBUSHING FLANGE
-
267080433 FITTING, LUBRICATION, THREADED(10FITTING, LUBRICATION, THREADED(10
-
275433814 BUSHING, TORSION BAR (9/16'')BUSHING, TORSION BAR (9/16'')
-
287621452 RIVETRIVET
-
295244557-067 BAR, TORSION (9/16) (42.5'') (BLACK)BAR, TORSION (9/16) (42.5'') (BLACK)
-
305434371 SLIDE TORSION BAR, ANTIRATTSLIDE TORSION BAR, ANTIRATT
-
317556509 BUSHINGBUSHING
-
323574208 BUSHING, FLANGEDBUSHING, FLANGED
-
336230225-067 SHAFT SPINDLE, WITH STEERING STOP (BLACK)SHAFT SPINDLE, WITH STEERING STOP (BLACK)
-
347080306 FITTING, LUBE WITH BALL CHECKFITTING, LUBE WITH BALL CHECK
-
355010158 BUSHING, PIVOTBUSHING, PIVOT
-
367061060 ROD END, RADIUS (1/2)ROD END, RADIUS (1/2)
-
377542711 NUT JAMNUT JAM
-
381820677-385 WELD RADIUS ROD (LOWER/CLOUD SLVER)WELD RADIUS ROD (LOWER/CLOUD SLVER)
-
397547065 NUT, NYLOKNUT, NYLOK
-
407061061 ROD END, RADIUS (7/16)ROD END, RADIUS (7/16)
-
415132780 BUSHING SHOULDER (.505 X .750 X 1.215)BUSHING SHOULDER (.505 X .750 X 1.215)
-
427512684 BOLTBOLT
