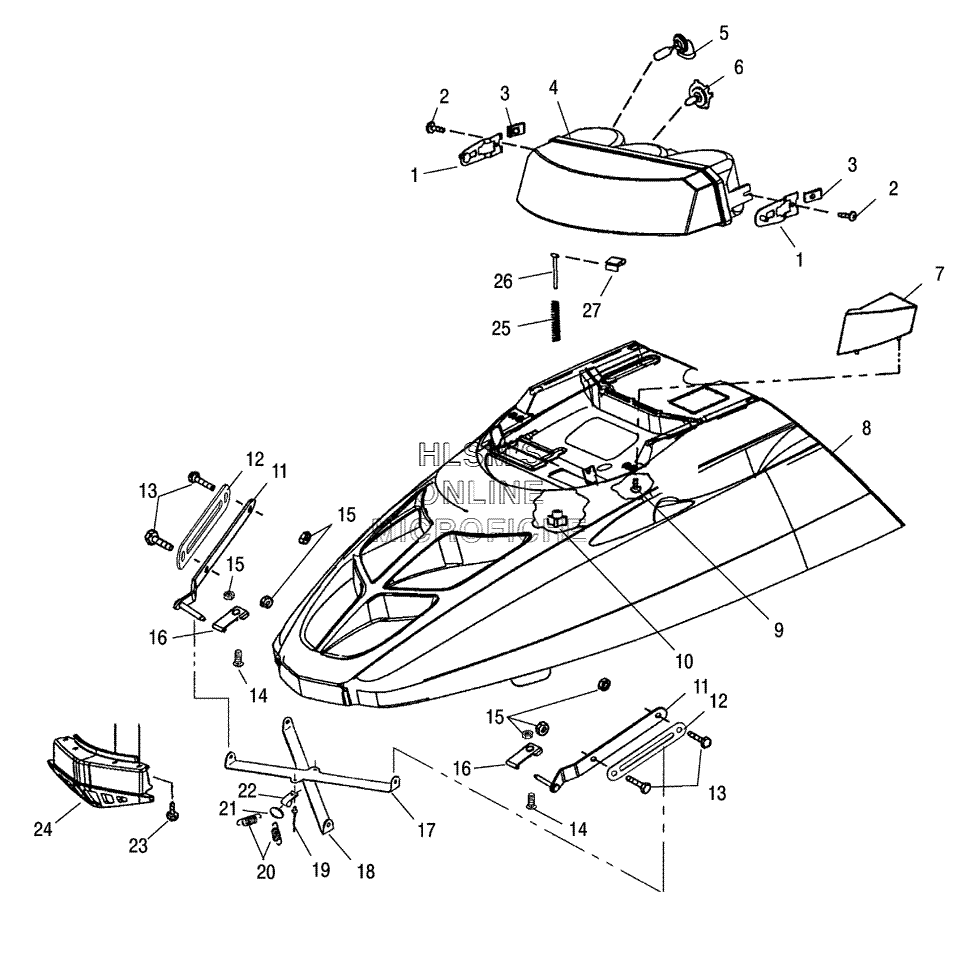

HOOD ASSEMBLY W/ HEADLIGHT для Polaris WideTrak LX (S06SU4BS) - 2006 года выпуска
-
№АртикулНазвание
-
11011944-067 MOUNT, WELD, HEADLIGHTMOUNT, WELD, HEADLIGHT
-
27515107 BOLTBOLT
-
37670057 NUT, SPEEDNUT, SPEED
-
42433016 HEADLAMP, THREE BULB ASSY (INCL. BULBS)HEADLAMP, THREE BULB ASSY (INCL. BULBS)
-
54010253 BULB HEADLIGHT (50 WATT)BULB HEADLIGHT (50 WATT)
-
62870448 BULB, QUARTZ HEADLIGHT (H4) (60/55W)BULB, QUARTZ HEADLIGHT (H4) (60/55W)
-
75431855 LENS CLEAR REFLECTOR (LEFT)LENS CLEAR REFLECTOR (LEFT)
-
75431856 LENS CLEAR REFLECTOR (RIGHT)LENS CLEAR REFLECTOR (RIGHT)
-
82632227-342 HOOD ASSY (RED) (INCL. FOAM/FOIL)HOOD ASSY (RED) (INCL. FOAM/FOIL)
-
97511953 SCREWSCREW
-
107080887 KNOB, HEADLIGHT, ADJUST, LOCKINGBKNOB, HEADLIGHT, ADJUST, LOCKINGB
-
111012750 HINGE (LEFT/UPPER)HINGE (LEFT/UPPER)
-
111012751 HINGE (RIGHT/UPPER)HINGE (RIGHT/UPPER)
-
125242948 PLATE BOLTPLATE BOLT
-
137515184 BOLTBOLT
-
147512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
157542122 NUT NYLOKNUT NYLOK
-
165244395 PLATE, HINGE (LOWER)PLATE, HINGE (LOWER)
-
175242945 BRACE, HOOD (UPPER)BRACE, HOOD (UPPER)
-
185242946 BRACE, HOOD (LOWER)BRACE, HOOD (LOWER)
-
197661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
207041732 SPRING EXTSPRING EXT
-
217041760 SPRING ATTACHRMENT RINGSPRING ATTACHRMENT RING
-
227080372 CLAMP, RETAINERCLAMP, RETAINER
-
237517441 SCREWSCREW
-
245432931 SCREEN, HYBRID (FRONT)SCREEN, HYBRID (FRONT)
-
257041308 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
267517746 BOLT, TEE ADJUSTER (2.25)BOLT, TEE ADJUSTER (2.25)
-
277670040 CLIP-U TYPECLIP-U TYPE
