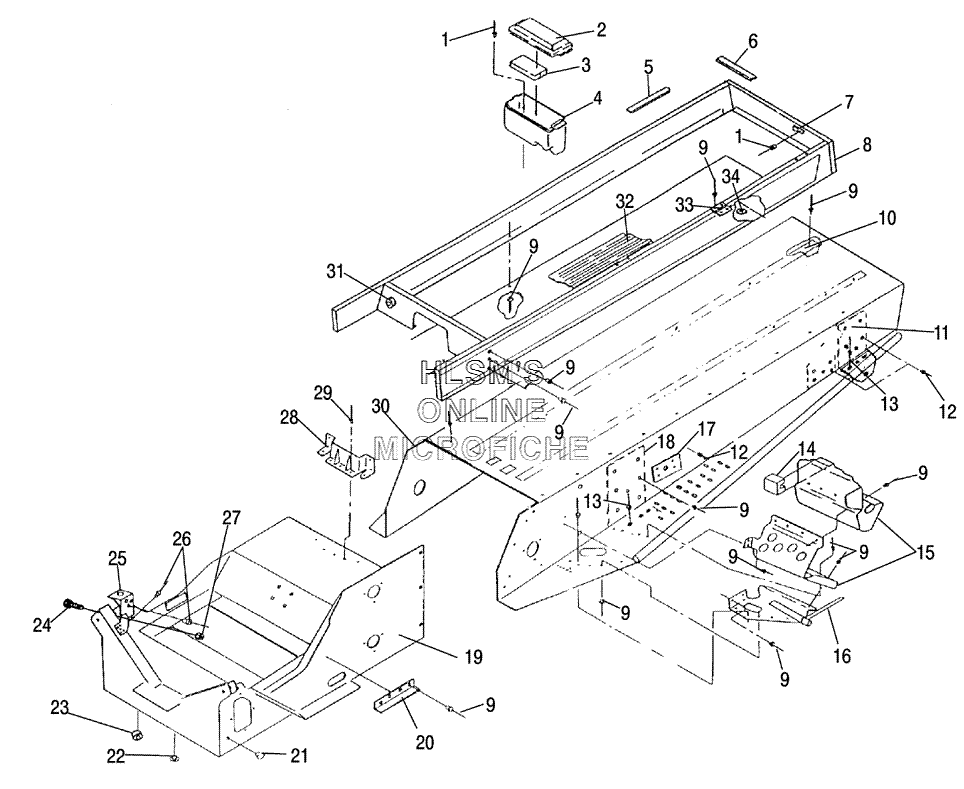

TUNNEL ASSEMBLY для Polaris WideTrak LX (S06SU4BS) - 2006 года выпуска
-
№АртикулНазвание
-
17621432 RIVETRIVET
-
25430719 COVER, TOOL BOXCOVER, TOOL BOX
-
35811051 FOAM, TOOLBOXFOAM, TOOLBOX
-
45430716 BOX TOOLBOX TOOL
-
55410562 SEAL, SEAT RISERSEAL, SEAT RISER
-
65410563 SEAL, SHORT, SEAT RISERSEAL, SHORT, SEAT RISER
-
77080393 CLIP, HALFCLIP, HALF
-
81011947-067 RISER, SEAT ASSYRISER, SEAT ASSY
-
97661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
105510233 STRIP, WEARSTRIP, WEAR
-
111012387-067 PAD HD.SUSPENSION (LEFT)PAD HD.SUSPENSION (LEFT)
-
111012388-067 PAD HD.SUSPENSION (RIGHT)PAD HD.SUSPENSION (RIGHT)
-
127661837 RIVETRIVET
-
137661844 RIVET, SEMI-TUBERIVET, SEMI-TUBE
-
145521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
151012734 FOOTREST ASSY (LEFT)FOOTREST ASSY (LEFT)
-
151013545 FOOTREST ASSY (RIGHT)FOOTREST ASSY (RIGHT)
-
161012905-067 SUPPORT, TRAILING ARM (LEFT/BLACK)SUPPORT, TRAILING ARM (LEFT/BLACK)
-
161012906-067 SUPPORT, TAIRLING ARM (RIGHT/BLACK)SUPPORT, TAIRLING ARM (RIGHT/BLACK)
-
175211220-067 PLATE, TUNNEL, CARRIER (BLACK).PLATE, TUNNEL, CARRIER (BLACK).
-
185211323-067 BRACKET, SUSPENSION (FRONT/BLACK)BRACKET, SUSPENSION (FRONT/BLACK)
-
191012728 BULKHEAD (BLACK)BULKHEAD (BLACK)
-
205222857 GUARD, ADAPTER GUIDEGUARD, ADAPTER GUIDE
-
217080416 PLUG, HOLEPLUG, HOLE
-
227080398 PLUG, HOLEPLUG, HOLE
-
237080399 BUSHING, OPEN/CLOSEBUSHING, OPEN/CLOSE
-
247512307 SCREWSCREW
-
251012079-067 SUPPORT, MUFFLERSUPPORT, MUFFLER
-
267661130 RIVETRIVET
-
277542321 NUT, FLANGENUT, FLANGE
-
285221932-067 BRACKET, GASTANKBRACKET, GASTANK
-
297621330 RIVET, POPRIVET, POP
-
301012402 TUNNEL (INCL. 9-11, 18)TUNNEL (INCL. 9-11, 18)
-
317080392 BUSHING (OPEN/CLOSE)BUSHING (OPEN/CLOSE)
-
325410561 PROTECTOR, RISERPROTECTOR, RISER
-
337020023 HINGE, FLATHINGE, FLAT
-
345410437 GROMMETGROMMET
