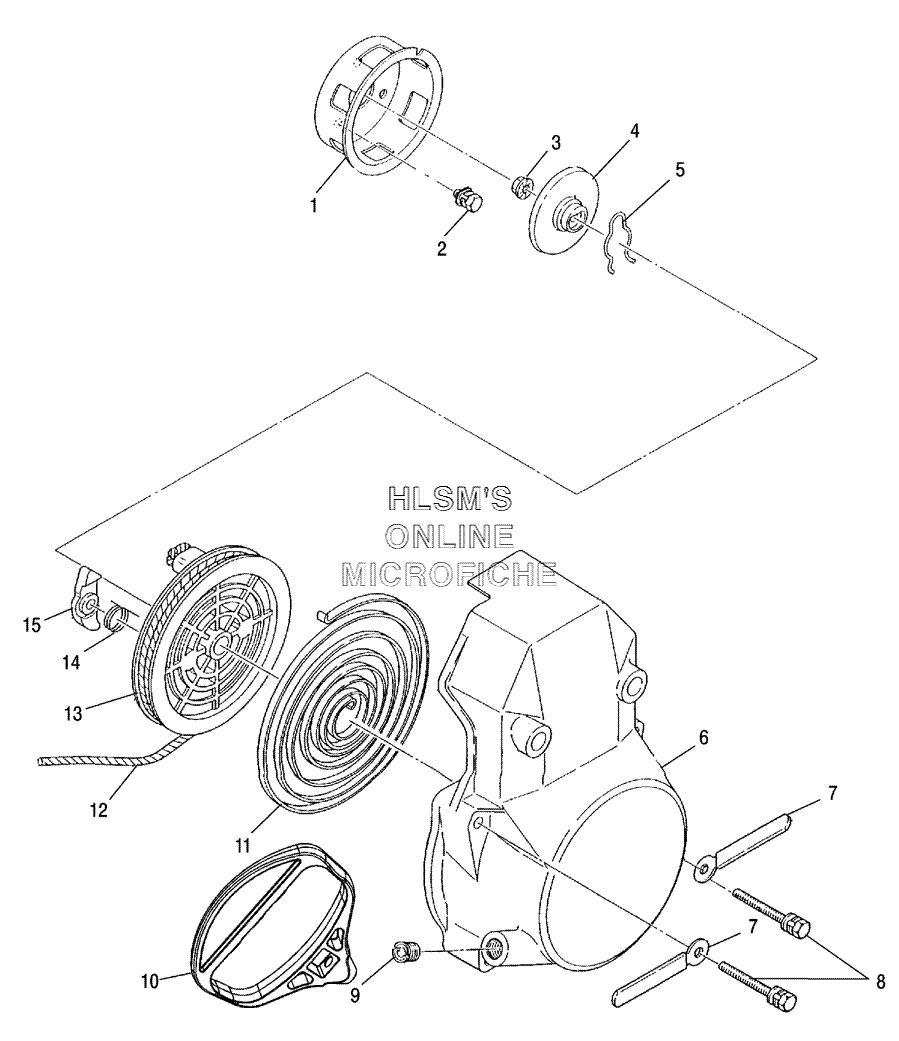

STARTER - RECOIL ASSEMBLY для Polaris WideTrak LX (S06SU4BS) - 2006 года выпуска
-
№АртикулНазвание
-
13083312 PULLEY, STARTINGPULLEY, STARTING
-
23084224 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
33083381 NUT, FLANGENUT, FLANGE
-
43083464 PLATE, FRICTIONPLATE, FRICTION
-
53083379 SPRING, FRICTIONSPRING, FRICTION
-
63087009 STARTER RECOIL (INCL. 3-6, 9-15)STARTER RECOIL (INCL. 3-6, 9-15)
-
63087010 CASE STARTERCASE STARTER
-
73083384 CLAMPCLAMP
-
83083382 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
93083107 GUIDE ROPEGUIDE ROPE
-
105431499-070 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
-
113083376 SPRING, SPIRALSPRING, SPIRAL
-
122870621 ROPE, NYLON STARTER (100 FT)ROPE, NYLON STARTER (100 FT)
-
133083377 REEL ASSYREEL ASSY
-
143083463 SPRING, RETURNSPRING, RETURN
-
153083378 RATCHETRATCHET
