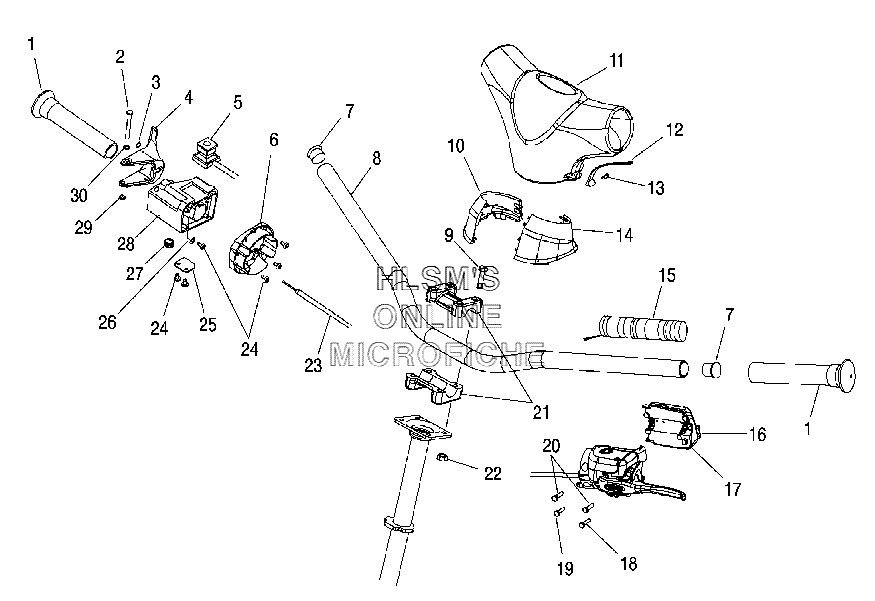

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris 340 EDGE LX (S07ND3AS) - 2007 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
27661624 PIN RETAININGPIN RETAINING
-
37710503 RING, RETAININGRING, RETAINING
-
45430601 LEVER THROTTLELEVER THROTTLE
-
42010213 LEVER ASSY, HTR, HI/LO, 30MMLEVER ASSY, HTR, HI/LO, 30MM
-
54110106 SWITCH, AUXILIARY SHUT OFFSWITCH, AUXILIARY SHUT OFF
-
65433345 ADAPTER BLOCK, THROTTLEADAPTER BLOCK, THROTTLE
-
75431096 PLUGPLUG
-
85243355-067 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
97517238 SCREWSCREW
-
105434488 COLLAR CONSOLE, STD (RIGHT)COLLAR CONSOLE, STD (RIGHT)
-
115436562-070 HANDLEBAR, COVERHANDLEBAR, COVER
-
125433160-070 SLIDE HANDLEBAR COVER (BLACK)SLIDE HANDLEBAR COVER (BLACK)
-
134010287 CLIP, DART NYLON (BLACK)CLIP, DART NYLON (BLACK)
-
145434487 COLLAR CONSOLE, STD (LEFT)COLLAR CONSOLE, STD (LEFT)
-
152410812 HEATER GRIP, LO/MED/HIHEATER GRIP, LO/MED/HI
-
165433291 BUTTON SWITCH HI/LO, CONTROL (LEFT)BUTTON SWITCH HI/LO, CONTROL (LEFT)
-
172010206 ASM CONTROL, E/R, BASIC (LEFT)ASM CONTROL, E/R, BASIC (LEFT)
-
187517566 SCREW (1.50)SCREW (1.50)
-
197512078 SCREW (1.12)SCREW (1.12)
-
207517441 SCREW (.75)SCREW (.75)
-
215630187-067 BLOCK, HANDLEBAR (BLACK)BLOCK, HANDLEBAR (BLACK)
-
227542122 NUT NYLOKNUT NYLOK
-
237081233 CABLE THROTTLECABLE THROTTLE
-
247511848 SCREWSCREW
-
255432261 HOLDER WIREHOLDER WIRE
-
267555727 WASHERWASHER
-
277512465 SCREW, SETSCREW, SET
-
285431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
297710401 RING, RETAININGRING, RETAINING
-
307555730 WASHERWASHER
