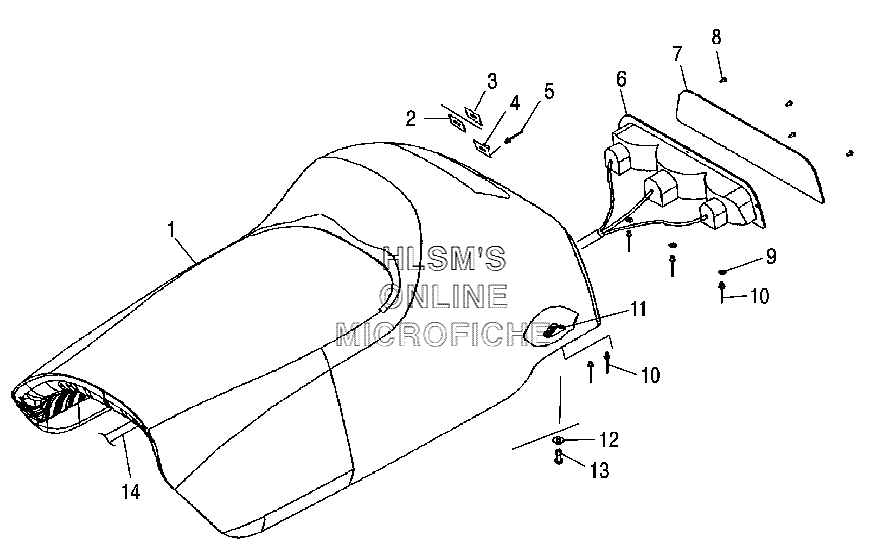

SEAT W/ TAILLIGHT для Polaris 340 EDGE LX (S07ND3AS) - 2007 года выпуска
-
№АртикулНазвание
-
12683888 SEAT ASSY. (INCL. 1, 6, 14)SEAT ASSY. (INCL. 1, 6, 14)
-
12683889 SEAT ASSY.SEAT ASSY.
-
27080550 GROMMET, RELATCH (1'') (BOTTOM)GROMMET, RELATCH (1'') (BOTTOM)
-
37080549 GROMMET, RELATCH (1'') (TOP)GROMMET, RELATCH (1'') (TOP)
-
47080548 TWISTLOCK, RELATCH WITH HOLE (1'')TWISTLOCK, RELATCH WITH HOLE (1'')
-
57621337 RIVETRIVET
-
65433341 HOUSING TAILLIGHTHOUSING TAILLIGHT
-
64030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
64030045 BULBBULB
-
75430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
87511840 SCREWSCREW
-
97555727 WASHERWASHER
-
107621319 RIVETRIVET
-
115631194 NUT SEATNUT SEAT
-
127558301 WASHER, FLATWASHER, FLAT
-
137517219 SCREWSCREW
-
142460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
