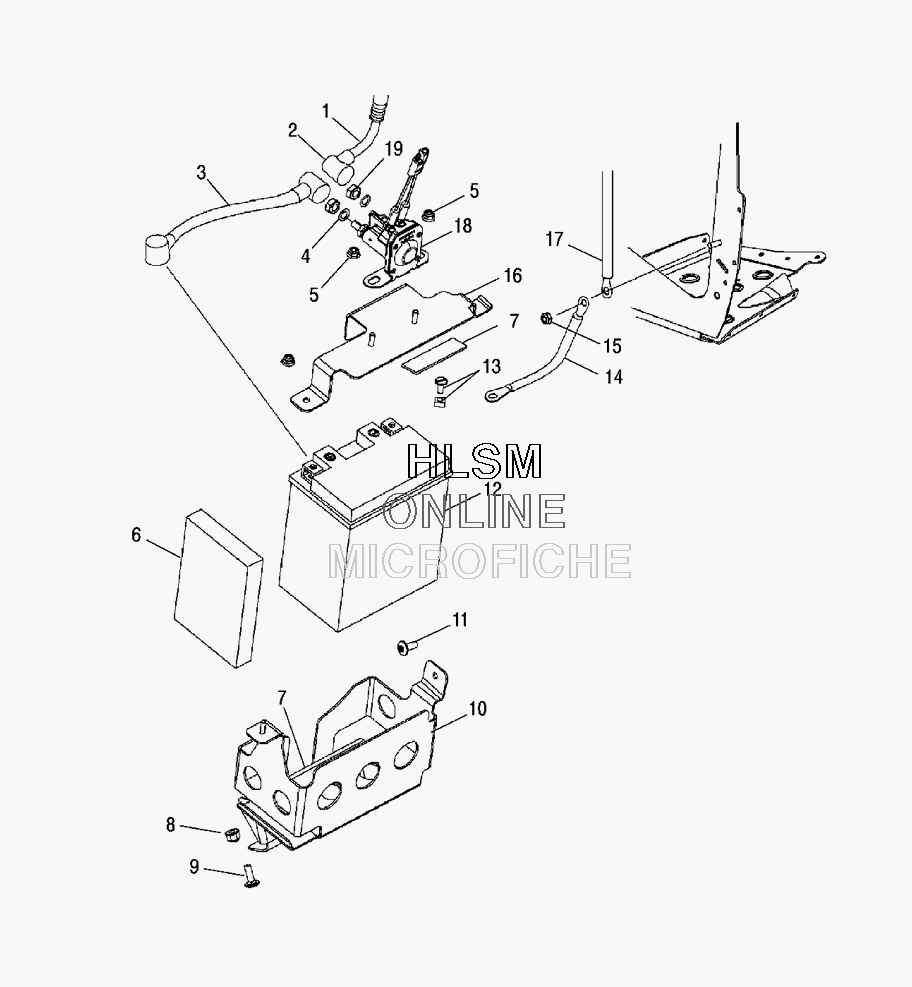

BATTERY BOX для Polaris FST IQ CRUSIER (S07PY7FS) - 2007 года выпуска
-
№АртикулНазвание
-
10452961 STARTER LEAD-SNOWSTARTER LEAD-SNOW
-
25410346 INSUL.CABLE SOL.INSUL.CABLE SOL.
-
34011097 CABLE-BATTERY/SOLENOID (7'')CABLE-BATTERY/SOLENOID (7'')
-
47552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
57518287 NUT-#10-24 NYLOK INSERTNUT-#10-24 NYLOK INSERT
-
65812901 SPACER-BATTERY,FOAMSPACER-BATTERY,FOAM
-
75810290 PAD, BATTERYPAD, BATTERY
-
87542153 NUT,NYLOK,FLANGEDNUT,NYLOK,FLANGED
-
97515203 BOLTBOLT
-
101015024 BATTERY BOX,LOWERBATTERY BOX,LOWER
-
117515148 SCREWSCREW
-
124010466 BATTERYBATTERY
-
132202099 BATTERY BOLT-KIT,30AHBATTERY BOLT-KIT,30AH
-
144011169 CABLE-GROUND,6''CABLE-GROUND,6''
-
157542153 NUT,NYLOK,FLANGEDNUT,NYLOK,FLANGED
-
161015168 ASM-BATTERY BOX,UPPERASM-BATTERY BOX,UPPER
-
174011094 CABLE-BATTERY/GROUND, BLACK,31.5''CABLE-BATTERY/GROUND, BLACK,31.5''
-
184011334 SWITCH-MAGNETICSWITCH-MAGNETIC
-
197542105 NUT HEXNUT HEX
