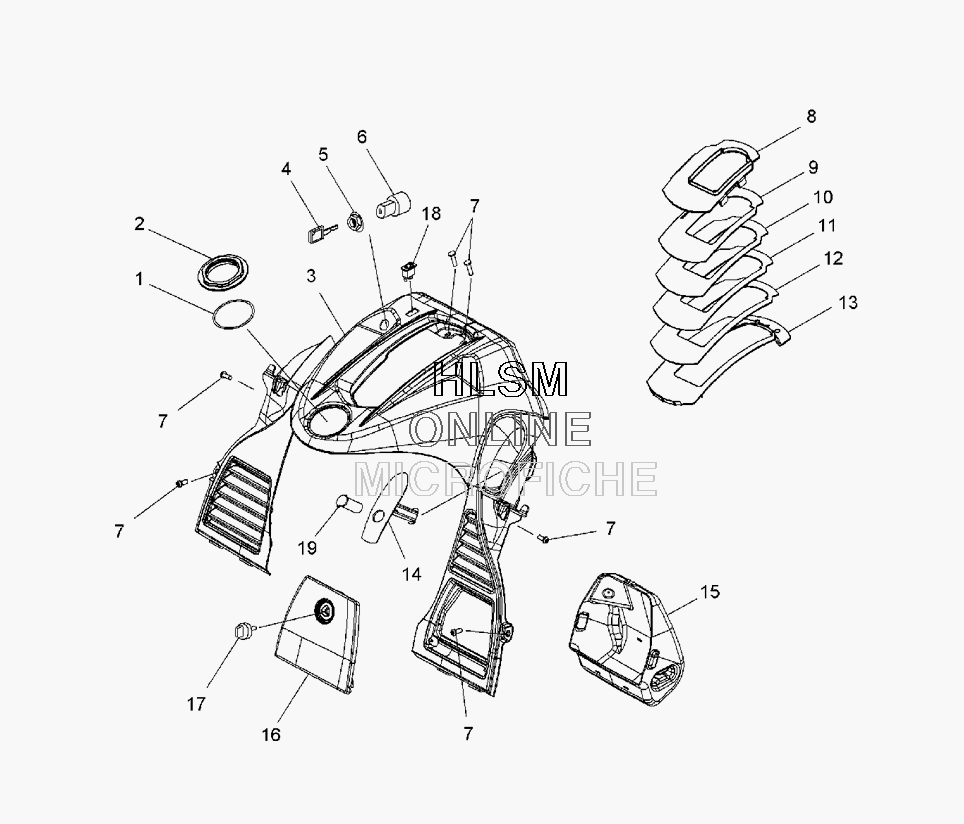

CONSOLE для Polaris FST IQ CRUSIER (S07PY7FS) - 2007 года выпуска
-
№АртикулНазвание
-
15411174 O-RINGO-RING
-
25435156 NUT-FILLER NECKNUT-FILLER NECK
-
32633323-070 ASM-CONSOLE,FS/FST, BLACKASM-CONSOLE,FS/FST, BLACK
-
45410611 KEY, IGNITIONKEY, IGNITION
-
57547035 NUT,IGNITIONNUT,IGNITION
-
62200358 KIT,IGN.SWITCHKIT,IGN.SWITCH
-
77517916 SCR-1/4-20X3/4-TR/TX/TAP-MSCR-1/4-20X3/4-TR/TX/TAP-M
-
85436222 COVER-ADJ STEERING, TOPCOVER-ADJ STEERING, TOP
-
95436223 PLATE-ADJ STEERING, 1PLATE-ADJ STEERING, 1
-
105436224 PLATE-ADJ STEERING, 2PLATE-ADJ STEERING, 2
-
115436225 PLATE-ADJ STEERING, 3PLATE-ADJ STEERING, 3
-
125436226 PLATE-ADJ STEERING, 4PLATE-ADJ STEERING, 4
-
135436227 COVER-ADJ STEERING, BOTTOMCOVER-ADJ STEERING, BOTTOM
-
145436899 CLOSURE-RECOIL W/HOLECLOSURE-RECOIL W/HOLE
-
155435944 COMPARTMENT-STORAGE, RIGHT HANDCOMPARTMENT-STORAGE, RIGHT HAND
-
162632858-070 DOOR ASM,CONSOLE, RIGHT HAND, BLACKDOOR ASM,CONSOLE, RIGHT HAND, BLACK
-
175435207-070 KEY-BLACKKEY-BLACK
-
184011022 SWITCH-ROCKER,ACE/GAUGESWITCH-ROCKER,ACE/GAUGE
-
194010638 RECEPTACLE-POD MNT,12 VOLTRECEPTACLE-POD MNT,12 VOLT
