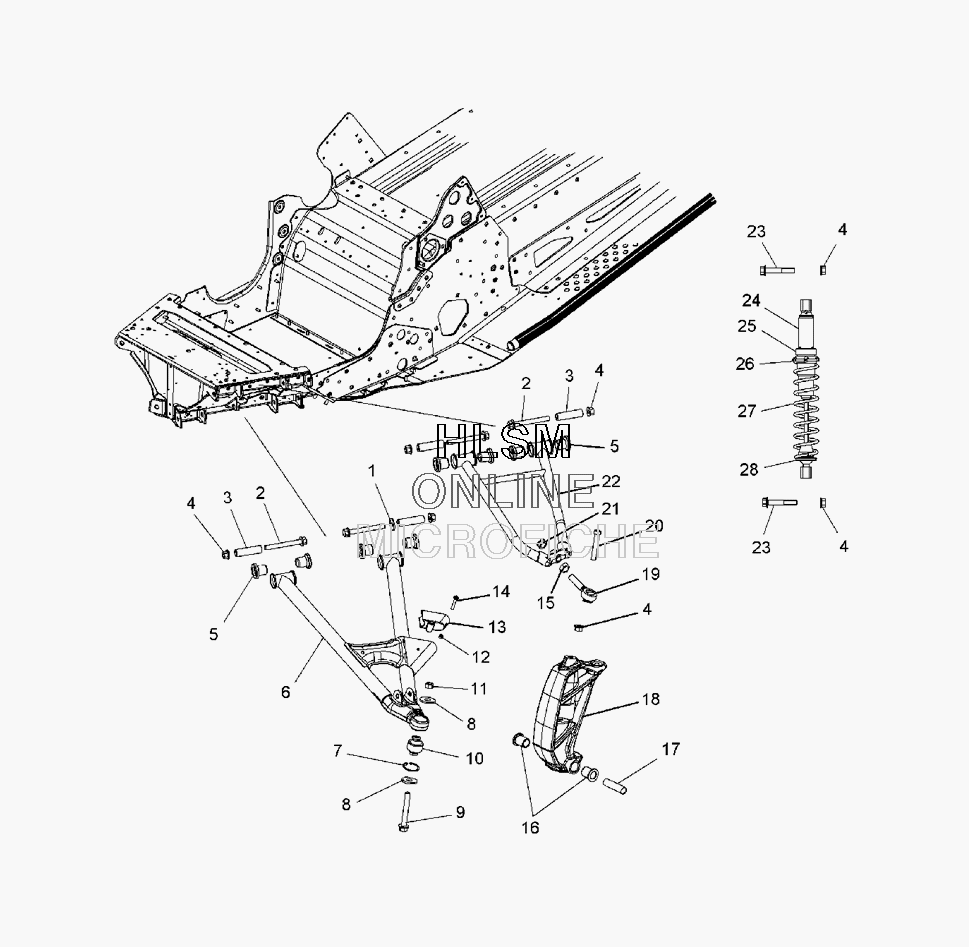

SUSPENSION - FRONT для Polaris FST IQ CRUSIER (S07PY7FS) - 2007 года выпуска
-
№АртикулНазвание
-
17555893 WASHER,FLATWASHER,FLAT
-
27518384 SCR-3/8-16X3.25 FLG HX GR8-YSCR-3/8-16X3.25 FLG HX GR8-Y
-
35133860 SHAFT-PIVOTSHAFT-PIVOT
-
47547180 NUT-FLANGED,3/8-16 NYLON-ZNUT-FLANGED,3/8-16 NYLON-Z
-
55434932 BUSHING-PIVOTBUSHING-PIVOT
-
62203021-067 KIT-LCA,FUSION,SVC, LEFT HAND, BLACK [INCL. 3,5-7,12-14]KIT-LCA,FUSION,SVC, LEFT HAND, BLACK [INCL. 3,5-7,12-14]
-
62203022-067 KIT-LCA,FUSION,SVC, RIGHT HAND, BLACK [INCL. 3,5-7,12-14]KIT-LCA,FUSION,SVC, RIGHT HAND, BLACK [INCL. 3,5-7,12-14]
-
77710539 RING-RETAINING,1.25 ID HSNGRING-RETAINING,1.25 ID HSNG
-
87556153 WASHER,3/8 FWWASHER,3/8 FW
-
97518478 SCR-3/8-24X3.00 HXCP GR8-YSCR-3/8-24X3.00 HXCP GR8-Y
-
102203107 KIT-BEARING,SPHERICAL,LOWER [INCL. 7]KIT-BEARING,SPHERICAL,LOWER [INCL. 7]
-
117547344 NUT-3/8-24 HEX LOC,GR8NUT-3/8-24 HEX LOC,GR8
-
127541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
135435522 SLIDE-SWAY BAR,9/16SLIDE-SWAY BAR,9/16
-
147510504 SCREWSCREW
-
157542711 NUT-JAMNUT-JAM
-
165133983 BUSHING-SKI PIVOTBUSHING-SKI PIVOT
-
175010158 BUSHING,PIVOTBUSHING,PIVOT
-
181822795 ASM-SPINDLE,FUSION, LEFT HAND [INCL. 16]ASM-SPINDLE,FUSION, LEFT HAND [INCL. 16]
-
181822796 ASM-SPINDLE,FUSION, RIGHT HAND [INCL. 16]ASM-SPINDLE,FUSION, RIGHT HAND [INCL. 16]
-
197061145 ROD END-1/2,30°ROD END-1/2,30°
-
207518428 SCR-3/8-16X2.25,SOCHD SP-YSCR-3/8-16X2.25,SOCHD SP-Y
-
217547104 NUTNUT
-
222203019-067 KIT-UCA,FUSION,SVC, LEFT HAND, BLACK [INCL. 3,5,15,19,21]KIT-UCA,FUSION,SVC, LEFT HAND, BLACK [INCL. 3,5,15,19,21]
-
222203020-067 KIT-UCA,FUSION,SVC, RIGHT HAND, BLACK [INCL. 3,5,15,19,21]KIT-UCA,FUSION,SVC, RIGHT HAND, BLACK [INCL. 3,5,15,19,21]
-
237518278 SCR-3/8-16X2 FLG HX GR5 ZSCR-3/8-16X2 FLG HX GR5 Z
-
247043054 SHOCK-IFS,ARVIN TWIN TUBE AFX [FST IQ LX]SHOCK-IFS,ARVIN TWIN TUBE AFX [FST IQ LX]
-
251500063 RETAINER,SPRING,BODY,THREADED [FST IQ LX]RETAINER,SPRING,BODY,THREADED [FST IQ LX]
-
265431734 RING,SPRING PRELOAD ADJ. [FST IQ LX]RING,SPRING PRELOAD ADJ. [FST IQ LX]
-
277041550-067 SPRING,COMP,IFS [FST IQ LX]SPRING,COMP,IFS [FST IQ LX]
-
285630580 RETAINER,SPRING,SLOTTEDRETAINER,SPRING,SLOTTED
