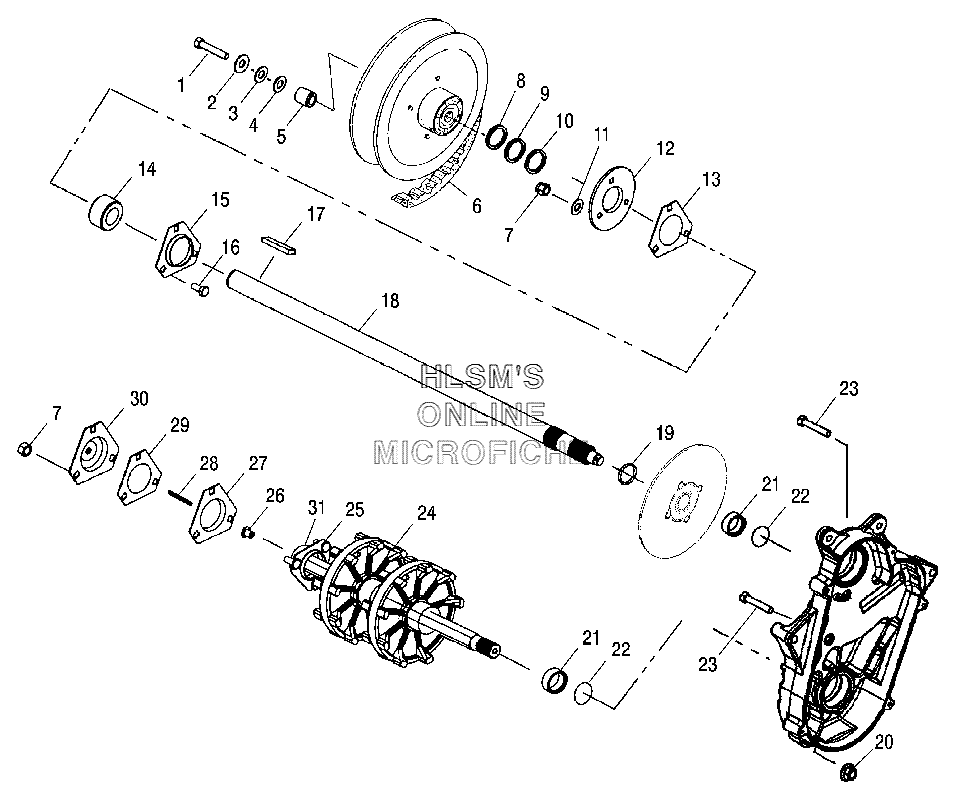

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris SUPERSPORT EDGE (S07NP5BS) - 2007 года выпуска
-
№АртикулНазвание
-
17515348 SCREW, NYLOKSCREW, NYLOK
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
47555957 WASHERWASHER
-
55135621 BUSHINGBUSHING
-
63211078 BELT DRIVEBELT DRIVE
-
77542324 NUT, NYLOKNUT, NYLOK
-
87555917 WASHERWASHER
-
97555864 WASHERWASHER
-
107556509 BUSHINGBUSHING
-
117558402 WASHER, FLATWASHER, FLAT
-
125241359 FLANGE RD, RELUBE WITH ZERKFLANGE RD, RELUBE WITH ZERK
-
127080561 FITTING, LUB/VENFITTING, LUB/VEN
-
135811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
143514448 BEARING 25MM (SPH OD LUBE)BEARING 25MM (SPH OD LUBE)
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721128 KEYKEY
-
181332457 JACKSHAFT ASSY., W/ BEARGING (INCL. 14, 19)JACKSHAFT ASSY., W/ BEARGING (INCL. 14, 19)
-
197710422 RING, RETAININGRING, RETAINING
-
207542423 NUT, FLANGENUT, FLANGE
-
215020588 SLEEVE, SEALSLEEVE, SEAL
-
225410613 O RINGO RING
-
237515429 BOLTBOLT
-
241590340 DRIVE SHAFT ASSY (INCL. 25, 26, 31)DRIVE SHAFT ASSY (INCL. 25, 26, 31)
-
251012945 FLANGETTE ASSY WITH SCREWSFLANGETTE ASSY WITH SCREWS
-
263280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
275243529 FLANGETTE OFFSET, W/HOLEFLANGETTE OFFSET, W/HOLE
-
283280017 KEY, SPEEDOMETER, SQUAREKEY, SPEEDOMETER, SQUARE
-
295830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
303280116 ADAPTER, DRIVE WITH ZERKADAPTER, DRIVE WITH ZERK
-
307080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
313514525 BEARINGBEARING
