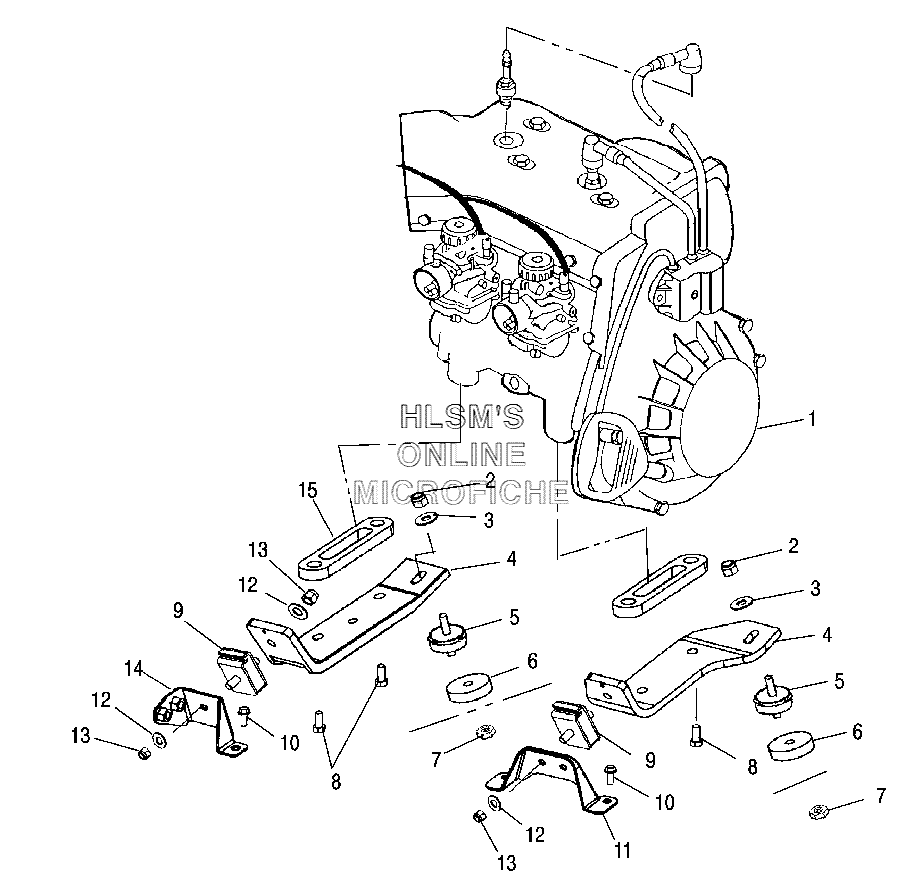

ENGINE MOUNTING W/ SHORT BLOCK для Polaris SUPERSPORT EDGE (S07NP5BS) - 2007 года выпуска
-
№АртикулНазвание
-
13089517 ENGINE SHORT BLOCK EC55PM100 (SEE NOTE)ENGINE SHORT BLOCK EC55PM100 (SEE NOTE)
-
27542451 NUT, NYLOKNUT, NYLOK
-
37555893 WASHER, FLATWASHER, FLAT
-
45245466 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
-
45246193 STRAP ENGINE MOUNT (RIGHT)STRAP ENGINE MOUNT (RIGHT)
-
53021220 MOUNT ENGINE (3/8-16)MOUNT ENGINE (3/8-16)
-
65245117 SPACER ENGINE MOUNT (.44)SPACER ENGINE MOUNT (.44)
-
77547180 NUT FLANGED, NYLONNUT FLANGED, NYLON
-
87517399 SCREWSCREW
-
93021206 MOUNT ENGINE, RECT (3/8-16)MOUNT ENGINE, RECT (3/8-16)
-
107517854 SCREWSCREW
-
115245044 BRKT ENGINE MOUNT, FORMED (RIGHT)BRKT ENGINE MOUNT, FORMED (RIGHT)
-
127555806 WASHER, FLATWASHER, FLAT
-
137547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
141013397 WELD ENGINE MOUNT BRACKET (LEFT)WELD ENGINE MOUNT BRACKET (LEFT)
-
155245020 SPACER ENGINE (.38)SPACER ENGINE (.38)
