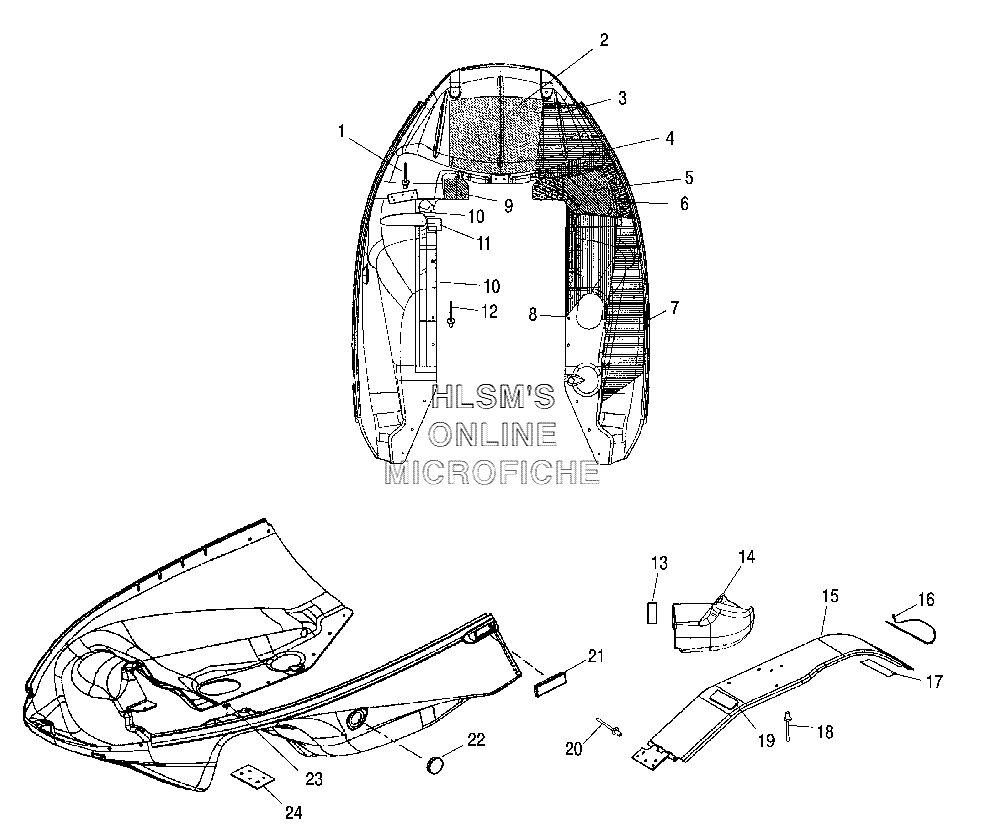

NOSEPAN W/FOIL ASSEMBLY для Polaris SUPERSPORT EDGE (S07NP5BS) - 2007 года выпуска
-
№АртикулНазвание
-
17621462 RIVETRIVET
-
25811458 FOIL TAPE (12''X12'')FOIL TAPE (12''X12'')
-
35812040 FOIL (FRONT)FOIL (FRONT)
-
45812067 FOIL, TAPEFOIL, TAPE
-
55812039 FOILFOIL
-
65812068 FOIL, TAPEFOIL, TAPE
-
75812018 FOIL, TAPE (UPPER/RIGHT)FOIL, TAPE (UPPER/RIGHT)
-
85812019 FOIL, TAPE (LOWER/RIGHT)FOIL, TAPE (LOWER/RIGHT)
-
95812020 FOIL, TAPEFOIL, TAPE
-
107080963 RETAINER ''J''CLPRETAINER ''J''CLP
-
115811948 FOIL (4.5X1.0)FOIL (4.5X1.0)
-
127621334 RIVETRIVET
-
135812353 FOAM W/PSAFOAM W/PSA
-
145434531 DUCT ENGINE AIR OUTLETDUCT ENGINE AIR OUTLET
-
151013069 GUARD ASSY, CLUTCHGUARD ASSY, CLUTCH
-
167080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
175812352 PAD CLUTCH GUARDPAD CLUTCH GUARD
-
187621485 RIVETRIVET
-
197079297 DECAL-WARNING, ENGINE AND CLUTCHDECAL-WARNING, ENGINE AND CLUTCH
-
207621402 RIVET, POPRIVET, POP
-
212670134 REFLECTOR ASSY (AMBER)REFLECTOR ASSY (AMBER)
-
225433926 PLUG, OBLONGPLUG, OBLONG
-
237670131 PLUG NYLON (.322X.480) (MANUAL START)PLUG NYLON (.322X.480) (MANUAL START)
-
245211722 PLATE, BACKERPLATE, BACKER
