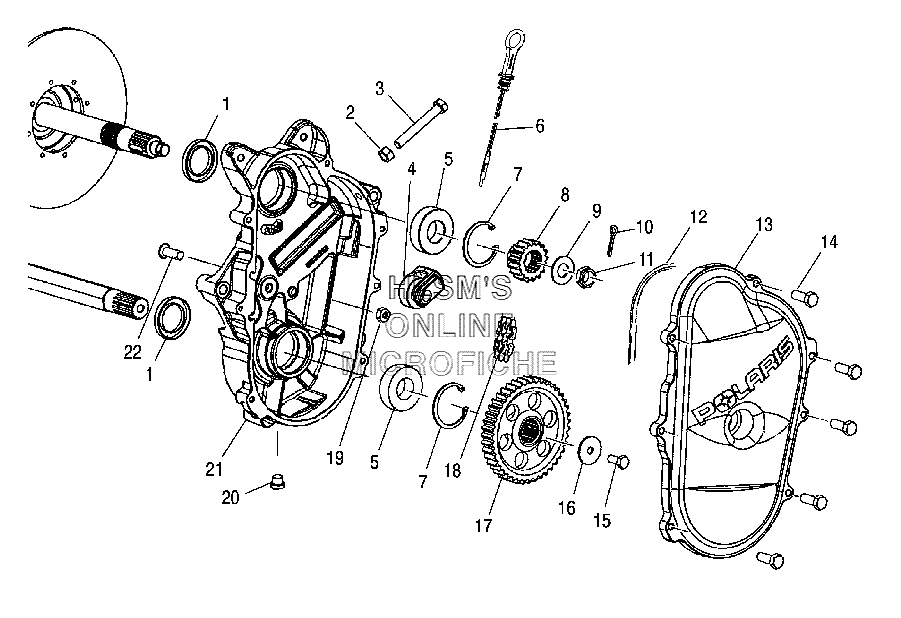

CHAINCASE ASSEMBLY для Polaris TRAIL RMK (S07NJ5BS) - 2007 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
41341437 TIGHTENER ASSY, CHAINTIGHTENER ASSY, CHAIN
-
53514309 BEARING, BALL #6205BEARING, BALL #6205
-
61332143 DIPSTICK ASSY (INCL. O RING)DIPSTICK ASSY (INCL. O RING)
-
77718406 RING, RETAININGRING, RETAINING
-
83221095 SPROCKET (19/15 TEETH) (3/4W) (15 SPLINE)SPROCKET (19/15 TEETH) (3/4W) (15 SPLINE)
-
97571620 WASHER, SPRINGWASHER, SPRING
-
107661203 PIN, COTTERPIN, COTTER
-
117547202 NUTNUT
-
125812574 GASKET CHAINCASE COVERGASKET CHAINCASE COVER
-
135631354 COVER, CHAINCASECOVER, CHAINCASE
-
147512242 SCREWSCREW
-
157517979 SCREWSCREW
-
167571618 WASHER, SPRINGWASHER, SPRING
-
173221188 SPROCKET (43 TEETH) (3/4W)SPROCKET (43 TEETH) (3/4W)
-
183221109 CHAIN, HYVO.CHAIN, HYVO.
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215134085 CHAINCASECHAINCASE
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
