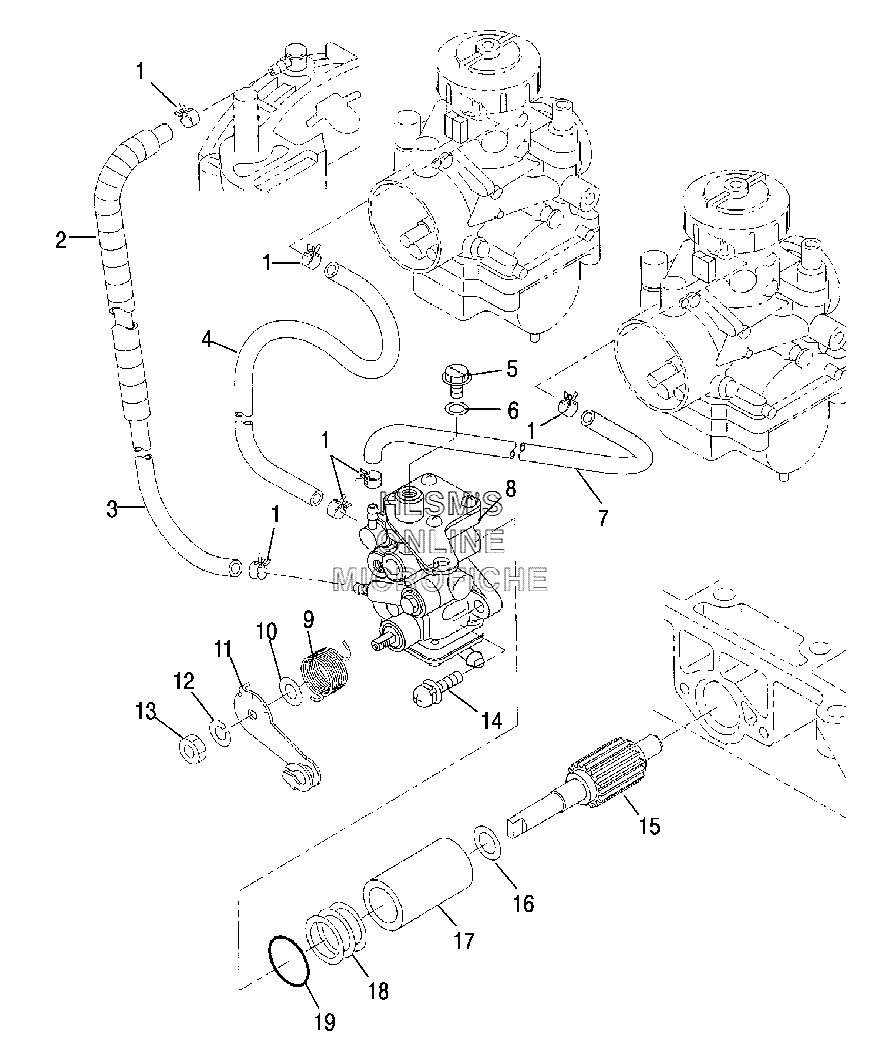

OIL PUMP ASSEMBLY для Polaris TRAIL RMK (S07NJ5BS) - 2007 года выпуска
-
№АртикулНазвание
-
13083141 CLAMP HOSECLAMP HOSE
-
23087114 TUBETUBE
-
33084467 PIPE ASSY, VINYL (90MM)PIPE ASSY, VINYL (90MM)
-
43085157 PIPE, VINYL (INCL. 1)PIPE, VINYL (INCL. 1)
-
53083125 SCREW AIR VENTSCREW AIR VENT
-
63083126 PACKINGPACKING
-
73087185 PIPE VINYLPIPE VINYL
-
83089223 OIL PUMP ASSY (INCL. 5, 6, 9 13, 19)OIL PUMP ASSY (INCL. 5, 6, 9 13, 19)
-
93089228 SPRING RETURNSPRING RETURN
-
103083445 COLLAR, CAMSHAFTCOLLAR, CAMSHAFT
-
113089227 LEVER CONTROLLEVER CONTROL
-
123083121 WASHER SPRINGWASHER SPRING
-
133083120 NUTNUT
-
143083783 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
153083131 GEAR, SMALLGEAR, SMALL
-
163083130 SPACERSPACER
-
173083353 BUSHINGBUSHING
-
183083671 SPACER 1, .15MMSPACER 1, .15MM
-
183083672 SPACER 2, .3MMSPACER 2, .3MM
-
183083673 SPACER 3, .6MMSPACER 3, .6MM
-
193083127 O-RINGO-RING
