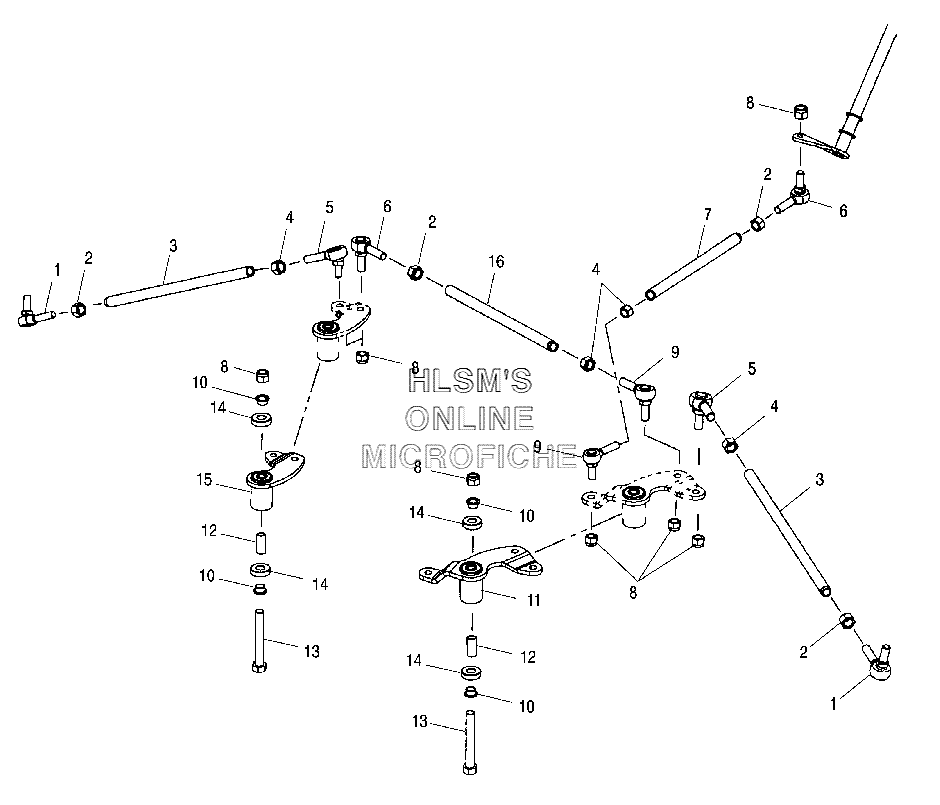

STEERING LINKAGE для Polaris TRAIL RMK (S07NJ5BS) - 2007 года выпуска
-
№АртикулНазвание
-
17061109 ROD END 3/8, 50Ш (RIGHT)ROD END 3/8, 50Ш (RIGHT)
-
27542401 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
35334147 TIE RODTIE ROD
-
47542424 NUT (LEFT)NUT (LEFT)
-
57061075 ROD END 3/8, HI ANGLE (LEFT)ROD END 3/8, HI ANGLE (LEFT)
-
67061076 ROD END 3/8, HI ANGLE (RIGHT)ROD END 3/8, HI ANGLE (RIGHT)
-
75333773 ROD, DRAGLINK, 12.50 (STEEL)ROD, DRAGLINK, 12.50 (STEEL)
-
87542439 NUT, NYLOKNUT, NYLOK
-
97061075 ROD END 3/8, HI ANGLE (LEFT)ROD END 3/8, HI ANGLE (LEFT)
-
105132106 BUSHING REDUCER (12MM TO .385)BUSHING REDUCER (12MM TO .385)
-
111820957 PITMAN ARM ASSY (INCL. 10, 12, 14)PITMAN ARM ASSY (INCL. 10, 12, 14)
-
125133423 SPACER TUBE PITMAN/IDLER ARMSSPACER TUBE PITMAN/IDLER ARMS
-
137512435 SCREWSCREW
-
143514320 BEARING BALLBEARING BALL
-
151820959 IDLER ARM ASSY (INCL. 10, 12, 14)IDLER ARM ASSY (INCL. 10, 12, 14)
-
165333949 ROD TIEROD TIE
