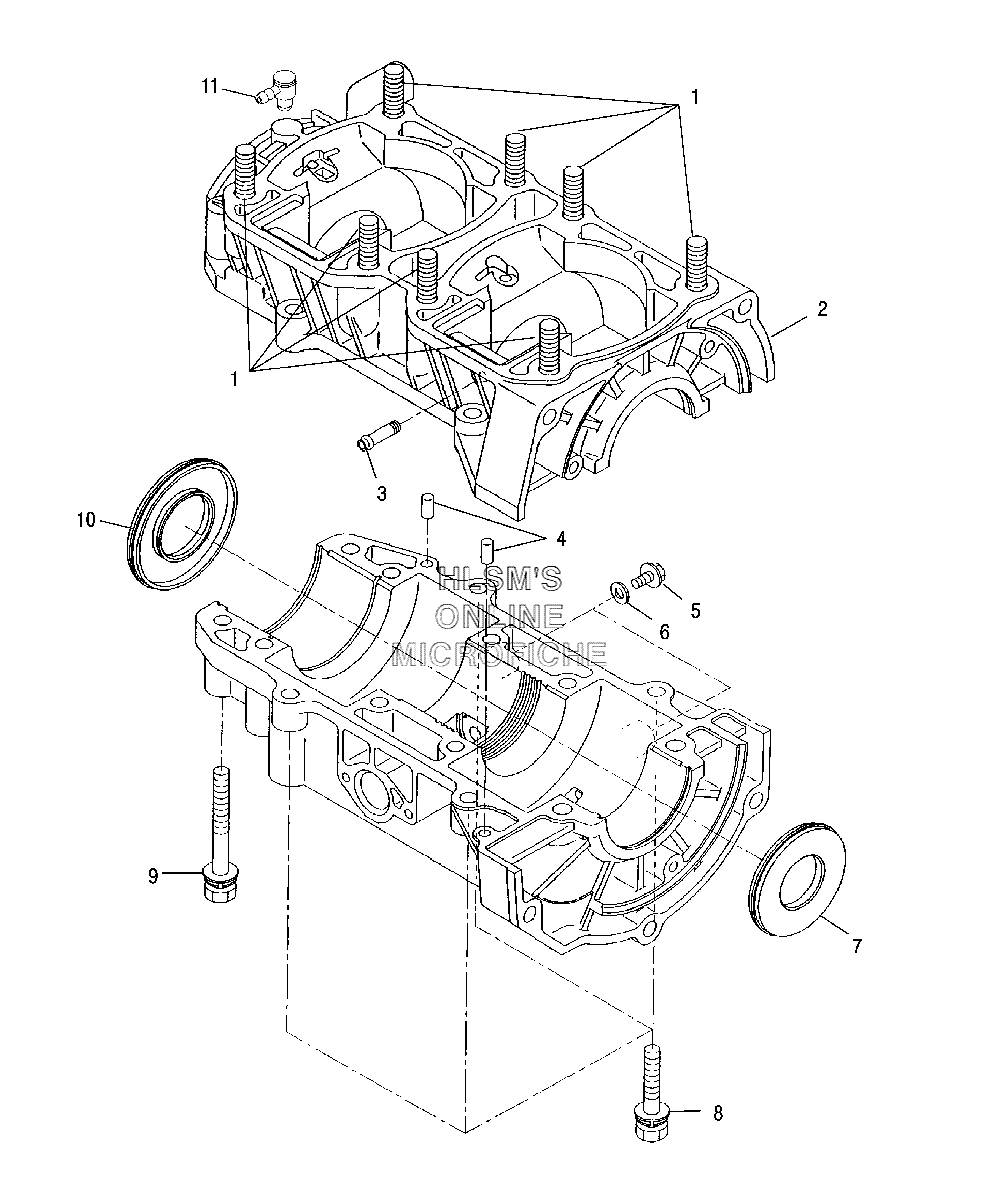

CRANKCASE ASSEMBLY для Polaris TRAIL TOURING DELUXE (S07NT5BS) - 2007 года выпуска
-
№АртикулНазвание
-
13085713 STUDSTUD
-
23089225 CRANKCASE ASSY (INCL. 1-4, 8, 9, 11)CRANKCASE ASSY (INCL. 1-4, 8, 9, 11)
-
33083798 PIPE, PULSEPIPE, PULSE
-
43086838 PIN, DOWELPIN, DOWEL
-
53087256 BOLT, FLANGEBOLT, FLANGE
-
67555998 WASHER, FLATWASHER, FLAT
-
73085664 SEAL, OILSEAL, OIL
-
83084225 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
93084670 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
103085241 SEAL, OILSEAL, OIL
-
113085462 NIPPLE, ELBOWNIPPLE, ELBOW
Все узлы модели:
- BATTERY BOX
- BLOWER HOUSING W/ RECOIL STARTER ASSEMBLY
- BRAKE - MASTER CYLINDER ASSEMBLY
- BUMPER/HITCH FLAP
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- • CRANKCASE ASSEMBLY
- CYLINDER HEAD ASSEMBLY
- DECALS
- DRIVE GEAR W/ PULLEY
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- FUEL SYSTEM
- GENERATOR ASSEMBLY
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- SEAT ADJUSTABLE
- SEAT COVER W/ TAILLIGHT
- SKI ASSEMBLY
- STARTING MOTOR ASSEMBLY
- STEERING LINKAGE
- STEERING POST - HOOP
- SUSPENSION - FRONT TRACK SHOCK
- SUSPENSION - FRONT W/ STEERING
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION/TRACK
- TOOL KIT
