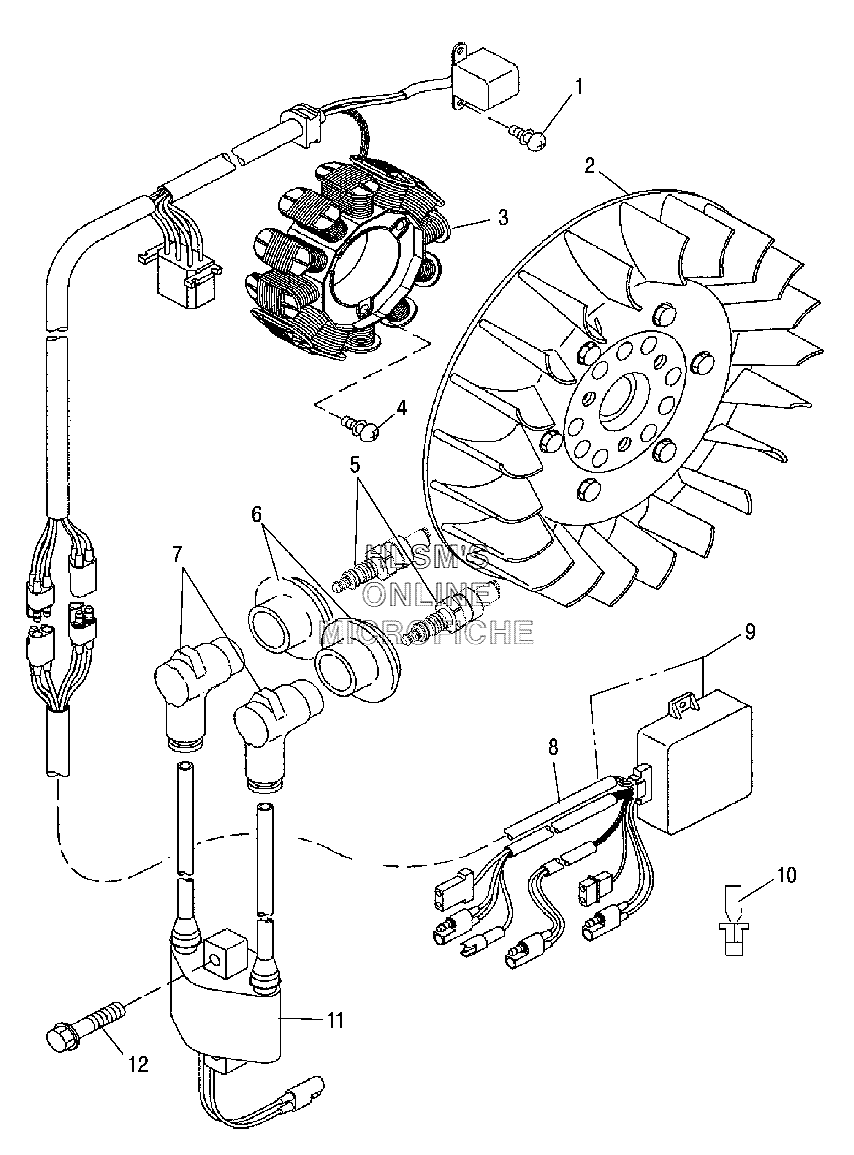

GENERATOR ASSEMBLY для Polaris TRAIL TOURING DELUXE (S07NT5BS) - 2007 года выпуска
-
№АртикулНазвание
-
13085698 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
23089938 FANFAN
-
33089937 MAGNETOMAGNETO
-
43085697 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
53070163 SPARKPLUG BR9ESSPARKPLUG BR9ES
-
63085935 CAP, SPARK PLUGCAP, SPARK PLUG
-
73086976 CAP, SPARK PLUGCAP, SPARK PLUG
-
83087219 UNIT-HARNESSUNIT-HARNESS
-
93089939 REGULATOR (INCL. 8)REGULATOR (INCL. 8)
-
103089478 IGNITION COIL ASSY (INCL. 7)IGNITION COIL ASSY (INCL. 7)
-
113086751 BOLT-FLANGEBOLT-FLANGE
