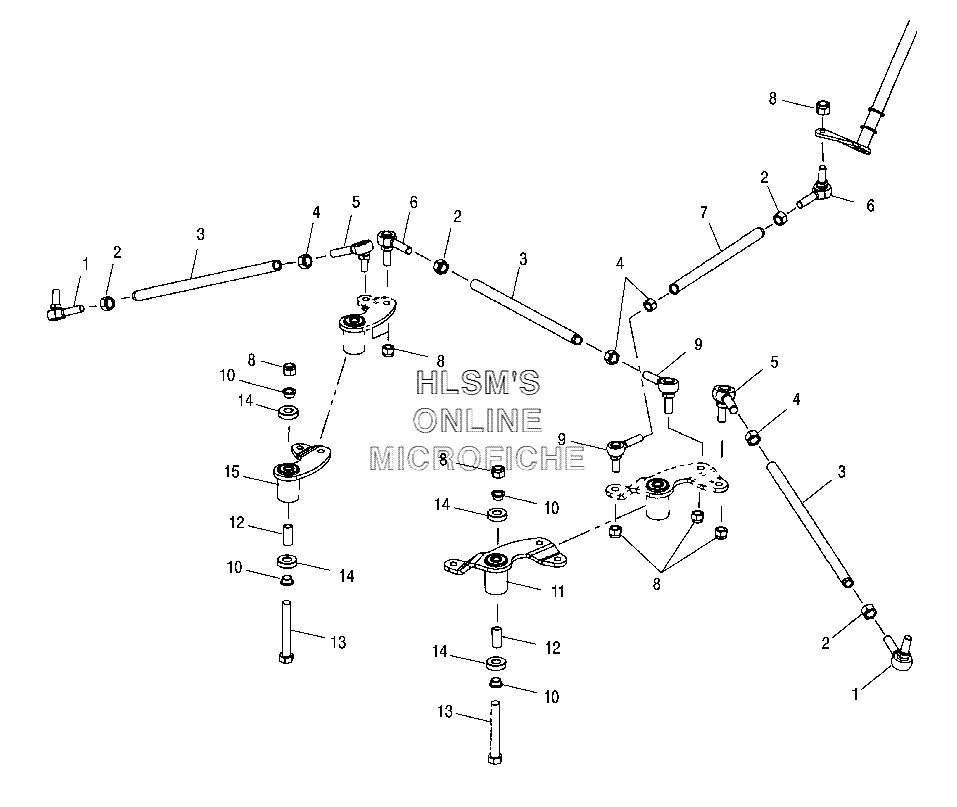

STEERING LINKAGE для Polaris TRAIL TOURING DELUXE (S07NT5BS) - 2007 года выпуска
-
№АртикулНазвание
-
17061057 ROD END (3/8) (RIGHT)ROD END (3/8) (RIGHT)
-
27542401 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
35333949 ROD-TIEROD-TIE
-
47542424 NUT (LEFT)NUT (LEFT)
-
57061055 ROD END-3/8 (75Ш) (LEFT)ROD END-3/8 (75Ш) (LEFT)
-
67061076 ROD END-3/8 HI-ANGLE (RIGHT)ROD END-3/8 HI-ANGLE (RIGHT)
-
75333773 ROD, DRAGLINKROD, DRAGLINK
-
87542439 NUT, NYLOKNUT, NYLOK
-
97061075 ROD END 3/8 HI-ANGLE (LEFT)ROD END 3/8 HI-ANGLE (LEFT)
-
105132106 BUSHING-REDUCER (12MM TO .385)BUSHING-REDUCER (12MM TO .385)
-
111820957 PITMAN ARM ASSY (INCL. 10, 12, 14)PITMAN ARM ASSY (INCL. 10, 12, 14)
-
125133423 SPACER-TUBE PITMAN/IDLER ARMSSPACER-TUBE PITMAN/IDLER ARMS
-
137512435 SCREWSCREW
-
143514320 BEARING-BALLBEARING-BALL
-
151820959 IDLER ARM ASSY (INCL. 10, 12, 14)IDLER ARM ASSY (INCL. 10, 12, 14)
