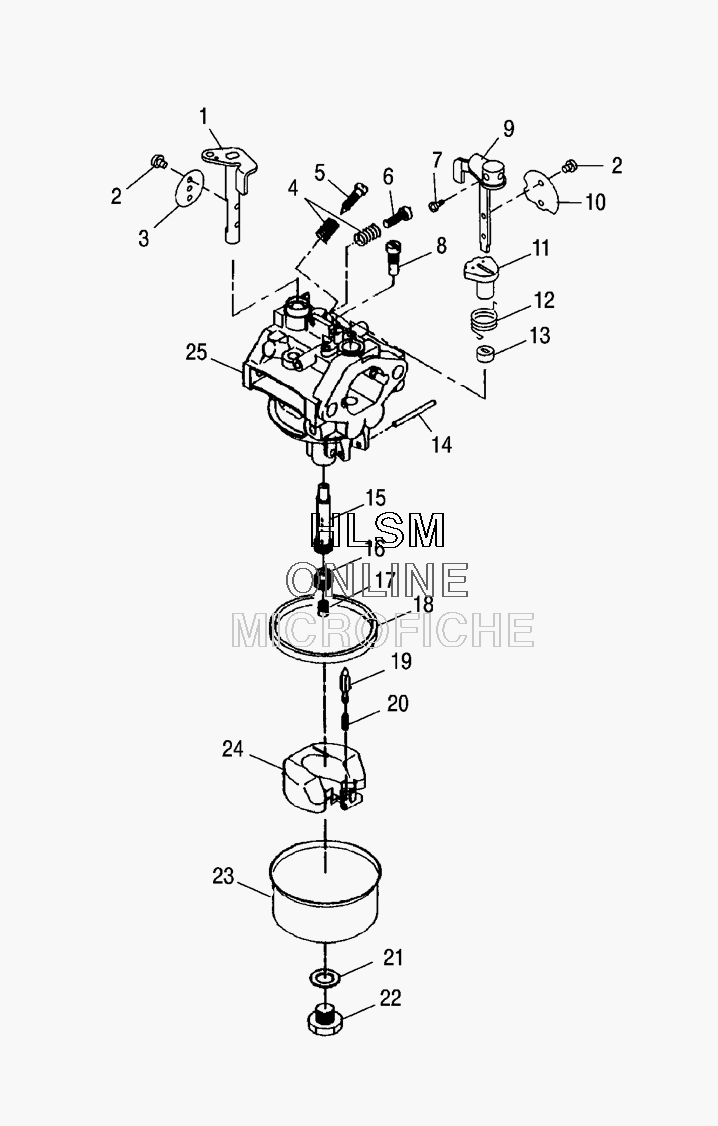

CARBURETOR ASSEMBLY для Polaris 120 DRAGON (BLACK) (S08WB1AEA) - 2008 года выпуска
-
№АртикулНазвание
-
13086962 ASM., SHAFT, THROTTLEASM., SHAFT, THROTTLE
-
23086963 SCREWSCREW
-
33086654 VAVLE, THROTTLEVAVLE, THROTTLE
-
43086672 SPRINGSPRING
-
53086658 ADJUSTER, CARBADJUSTER, CARB
-
63086671 SCREW, ADJUSTSCREW, ADJUST
-
73086875 SCREWSCREW
-
83088293 PILOT-JET(#50)PILOT-JET(#50)
-
93086659 LEVER, CHOKELEVER, CHOKE
-
103086964 VALVE, CHOKEVALVE, CHOKE
-
113086876 RINGRING
-
123086874 SPRING, RETURNSPRING, RETURN
-
133086873 RINGRING
-
143086664 PINPIN
-
153086669 NOZZLE, MAINNOZZLE, MAIN
-
163086675 HOLDER, GUIDEHOLDER, GUIDE
-
173089779 JET, MAIN #70JET, MAIN #70
-
183086667 GASKET, BOWLGASKET, BOWL
-
193086663 NEEDLENEEDLE
-
203086674 SPRING, NEEDLESPRING, NEEDLE
-
213086666 PACKINGPACKING
-
223086662 BOLTBOLT
-
233086665 FLOATCHAMBER BODY, ASMFLOATCHAMBER BODY, ASM
-
243086668 FLOATFLOAT
-
253086652 CARB, ASMCARB, ASM
