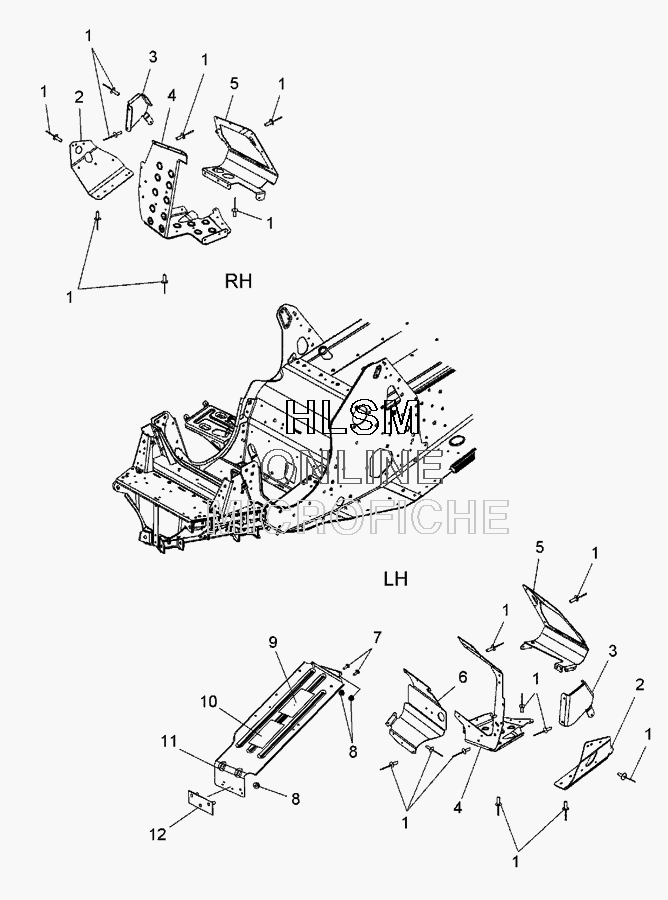

CLUTCH GUARD W/FOOTREST для Polaris 600 IQ SHIFT AND EURO (S09PB6FS/FE) - 2009 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
25248807 SUPPORT-FOOTREST, LOWER, LEFT HANDSUPPORT-FOOTREST, LOWER, LEFT HAND
-
25248808 SUPPORT-FOOTREST, LOWER, RIGHT HANDSUPPORT-FOOTREST, LOWER, RIGHT HAND
-
35248401 SUPPORT-FOOTREST, BUMPER, LEFT HANDSUPPORT-FOOTREST, BUMPER, LEFT HAND
-
35248402 SUPPORT-FOOTREST, BUMPER, RIGHT HANDSUPPORT-FOOTREST, BUMPER, RIGHT HAND
-
41015583 ASM-FOOTREST W/STUD, LEFT HANDASM-FOOTREST W/STUD, LEFT HAND
-
41016004 ASM-FOOTREST W/STUD, RIGHT HANDASM-FOOTREST W/STUD, RIGHT HAND
-
55250948 TOECLIP-LEFT HANDTOECLIP-LEFT HAND
-
55248477 TOECLIP-RIGHT HANDTOECLIP-RIGHT HAND
-
65247420 BRACKET, CLUTCH-GUARDBRACKET, CLUTCH-GUARD
-
77518281 SCR-10-24X5/8 TORX TH MS STL YSCR-10-24X5/8 TORX TH MS STL Y
-
87518287 NUT-#10-24 NYLOK INSERTNUT-#10-24 NYLOK INSERT
-
97174701 DECALDECAL
-
107172672 DECAL-ENGINE AND CLUTCHDECAL-ENGINE AND CLUTCH
-
111016003 ASM-CLUTCH GUARDW/DECALS 8 BALLASM-CLUTCH GUARDW/DECALS 8 BALL
-
121015587 ASM-BACKER, CLUTCH GUARD W/STUDASM-BACKER, CLUTCH GUARD W/STUD
